Name: Metal Steel Deck Roll Forming Machine For Construction And Building Structure
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: عرشه کف
Price: 26,500.00 USD
Availability: InStock

خانه > محصولات > ماشین شکل گیری رول کف >

Metal Steel Deck Roll Forming Machine For Construction And Building Structure

12m/min Metal Deck Roll Forming Machine,12m/min Steel Deck Roll Forming Machine

12m/min Steel Deck Roll Forming Machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

FMS

گواهی:

ISO CE

شماره مدل:

عرشه کف

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

دستگاه شکل دهی رول عرشه فلزی برای ساخت و ساز و سازه ساختمان

برش مواد تیغه:

CR12 خاموش شد

قاب ماشین:

فولاد 400H یا 450H

تحمل طول برش:

± 2 میلی متر

وزن:

3 تن

ولتاژ:

380 ولت 50Hz 3Phases

ایجاد سرعت:

8-12 متر در دقیقه

زیر قاب:

شفت جامد 85-95 میلی متری و فولاد H شکل را انتخاب کنید

برجسته کردن:

12m/min Metal Deck Roll Forming Machine,12m/min Steel Deck Roll Forming Machine

12m/min Steel Deck Roll Forming Machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

40 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

Cellular Composite Roofing Sheet Making Machine 3.0" Width 0.8-2.0MM Thickness

بهترین قیمت رو بدست بیار

ویدئو

13 Rows Roof Tile Roll Forming Machine For Tipo Teja Americana Normal Tile

بهترین قیمت رو بدست بیار

ویدئو

Decking Flooring Board 1.2mm Floor Tile Making Machine

بهترین قیمت رو بدست بیار

ویدئو

45 Steel Deck Roll Forming Machine Cold ±2mm Cutting Tolerance Excellent Performance

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

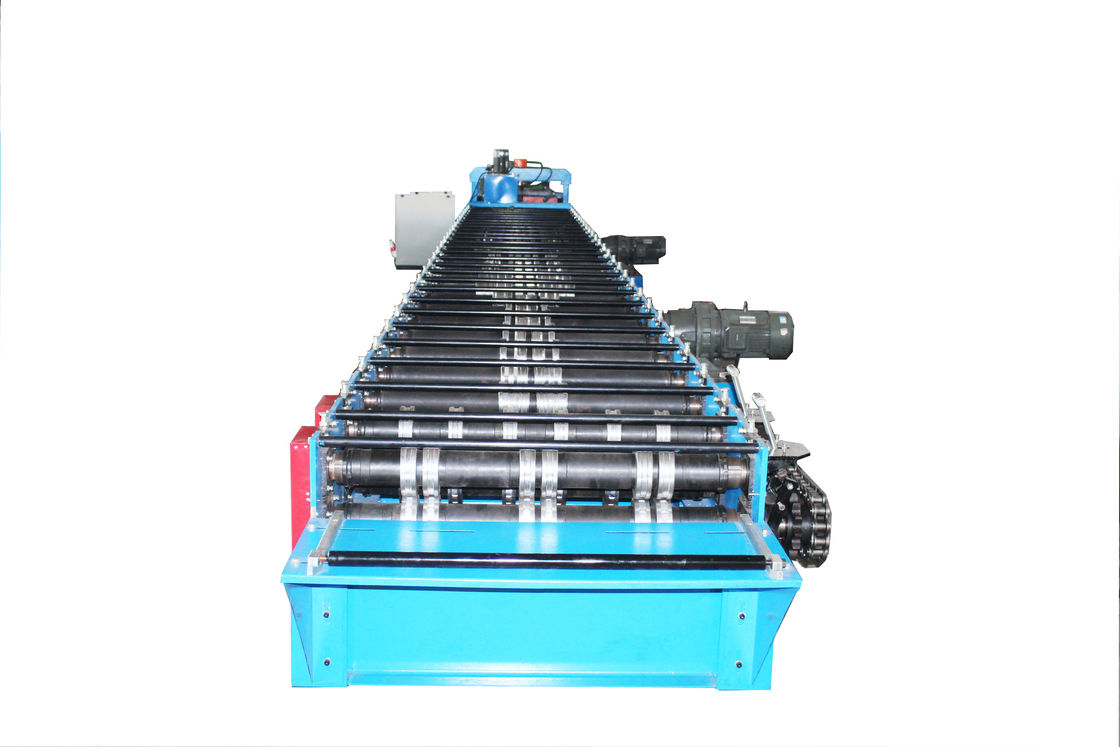

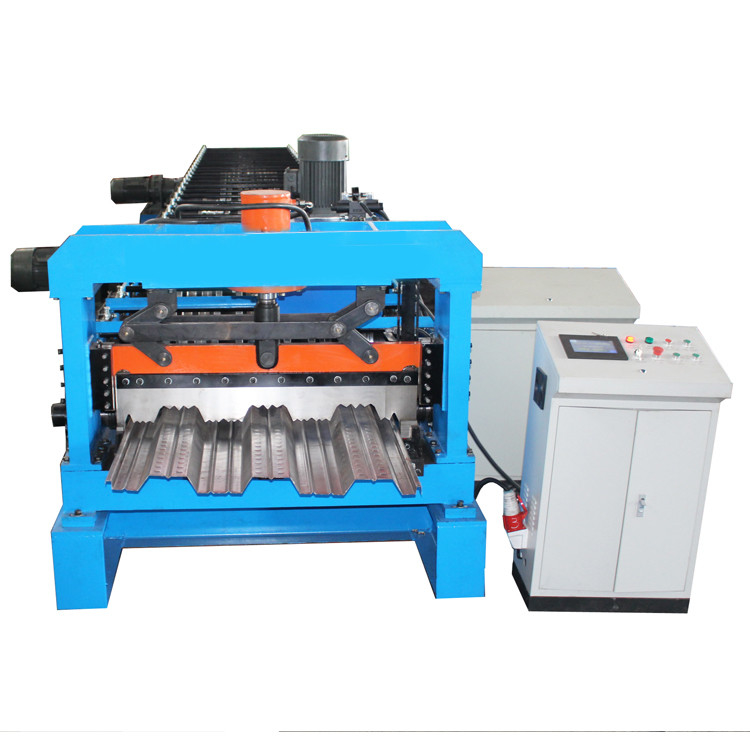

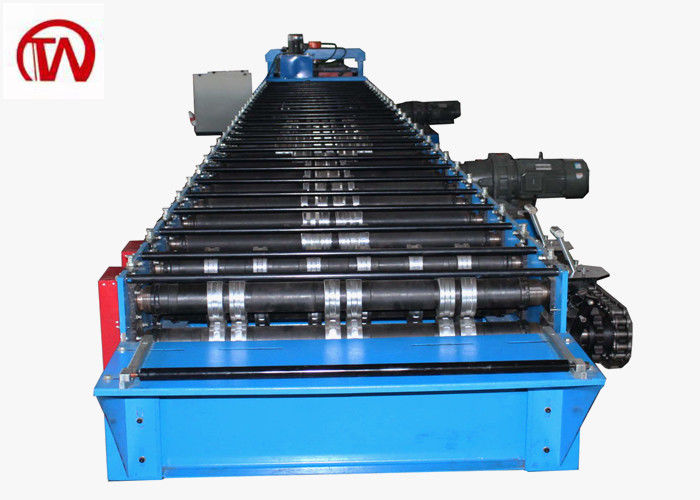

Metal Steel Deck Roll Forming Machine For Construction And Building Structure

Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)

Metal Steel Deck Roll Forming Machine For Construction And Building Structure is a modern, pre-eminent solution for concrete floor work. It roll-forms panels that replace traditional form-work, shortens 3 times working duration, saving 30% on concrete.
Field of application: Construction and building structure.
Application: Roll forming panels that are used as a floor replacement

Specification

Machine Specifications
Weight	About 6000kgs
Size	About 16m x 1.8m x 1.5m (length x width x height)
Suitable Raw Material
Material	Galvanized or Galvalume Coils
Thickness	0.8-1.2mm
Yield Strength	235Mpa
Main Technical Parameters
Diameter of forming rollers shafts	95mm
Roll Forming Speed	10-15/min
Forming rollers material	No.45 steel, coated with chromed treatment
Cutter material	CR12 mould steel, with quenched treatment
Controlling system	PLC and Converter
Electric Power requirement	Main motor power: 3x11kw
Electric Power requirement	Hydraulic unit motor power: 5.5kw
Electric voltage	According to customer’s requirement

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.

Metal Steel Deck Roll Forming Machine For Construction And Building Structure 0
