Full Automatic Downspout Pipe Roll Forming Machine High Efficiency

15m/min Downspout Pipe Roll Forming Machine,Full Automatic Downspout Pipe Forming Machine

Full Automatic Downspout Pipe Forming Machine

محل منبع:

چین

نام تجاری:

CANGZHOU FMS

گواهی:

ISO CE

شماره مدل:

دستگاه رول شکل دهی لوله پایین

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

تمام اتوماتیک Downspout لوله رول تشکیل دستگاه با راندمان بالا

ظرفیت تولید:

15 متر/دقیقه

وزن:

8500 کیلوگرم

عرض تغذیه:

500 میلی متر

ابعاد (L*W*H):

11 متر * 1 متر * 1.2 متر

قدرت اصلی ماشین:

5.5 کیلووات

ولتاژ:

380 ولت 50 هرتز 3 فاز یا به عنوان الزامات

اتهام اتوماسیون:

تمام توان

ضخامت نورد:

0.3-0.8mm

برجسته کردن:

15m/min Downspout Pipe Roll Forming Machine,Full Automatic Downspout Pipe Forming Machine

Full Automatic Downspout Pipe Forming Machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

20 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

Mobile Vegetable Planting Trough Forming Machine with Hydraulic Motor 5.5KW and 8-15m/min Production Capacity for Greenhouse Vegetable Cultivation

بهترین قیمت رو بدست بیار

Portable Gutter Roll Forming Machine with 500mm Feeding Width and 8-15m/min Production Capacity for Various Growing Methods

بهترین قیمت رو بدست بیار

Mobile Greenhouse Vegetable Planting Trough Forming Machine With Quickly And Efficiently 5.5KW Hydraulic Motor

بهترین قیمت رو بدست بیار

Portable Greenhouse Planting Trough Forming Machine with Hydraulic Motor 5.5KW 380V/50Hz/3Phase and 45# Steel Shaft

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

هم اکنون تماس بگیرید

توضیح محصول

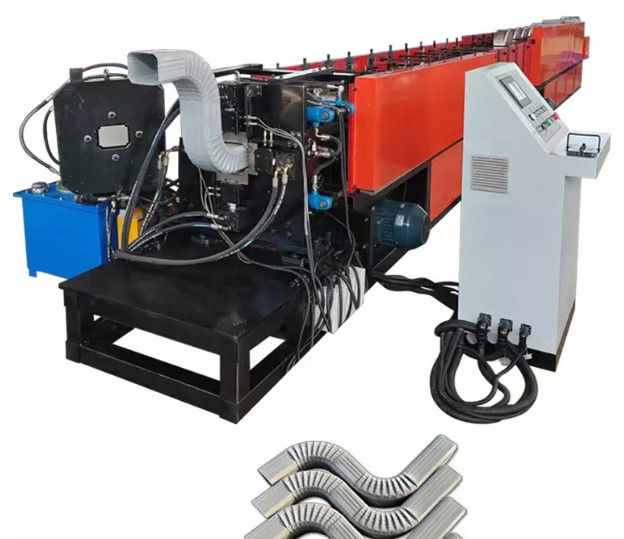

Full Automatic Downspout Pipe Roll Forming Machine High Efficiency

Full Automatic Downspout Pipe Roll Forming Machine High Efficiency Work Flow
Decoiler→Manual Pre-Cutter→Guide Feeding →Roll Forming System→Hydraulic Post Cutter →Exit Rack

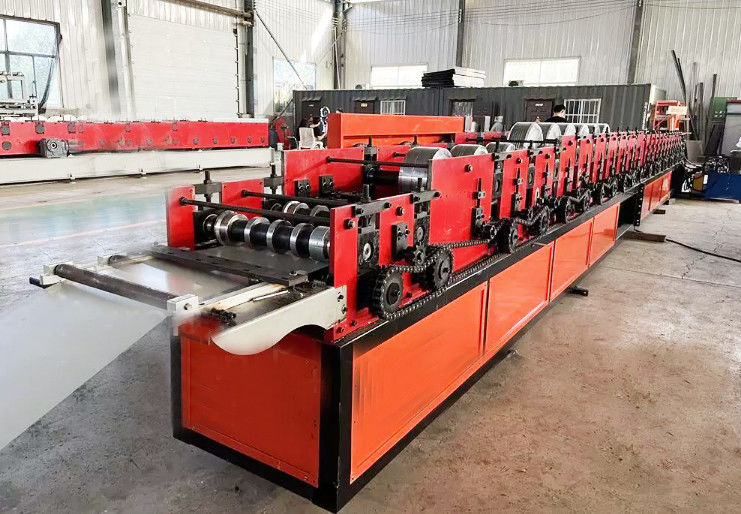

Main Machine
1) Feeding Guide Device

2)Machine Machine
body frame made from H450 type steel by welding Side wall thickness: Q235 T18mm Rollers manufactured from 45# steel,CNC lathes,Heat Treatment,hard Chrome Coated with thickness 0.04mm,surface with mirror treatment(for longer life and anti-rust) Shafts Diameter=ф75mm,precision machined Gear/Sprocket driving,about 14-step to form

3)Post hydraulic cutting device
Post to cut,stop to cutting, three pieces type of cutting blade design

Hydraulic motor: 5.5KW

Cutting tool material: Cr12Mov(=SKD11 Steel),

Heat treatment to HRC58-62 degree
With at least one million times of cutting life

The cutting power is provided by the main engine hydraulic station

Specification

Production Capacity	15 m/min
Voltage	380V 50Hz 3phases or as requirements
Dimension(LWH)	11m1m1.2m
Weight	8500
Warranty	2 years
Key Selling Points	Automatic
Rolling thinckness	0.3-0.8mm
Feeding width	500mm
Warranty of core components	2 years
Core Components	Pressure vessel, Motor, Other, Bearing, Gear, Pump, Gearbox, Engine, PLC
After-sales Service Provided	Online Support Video Technical Support
Machine Color	Client's Requriment
Control box language	Add Customer Request Language
Advantage	Long Working Life
Material of rollers	45#steel Hard Chrome Coated
Cutting type	Automatic Hydraulic Cutting
Length and piece measure	Omron Encoder
Main motor power	15kw
Export port	Tiannjin Port
Need container	1*40 Feet

Installation

During the installation and adjustment of the equipment, our engineers shall provide the training to the buyer’s personal request to operate and maintain the equipment. Including foundation construction, electrical works, hydraulic oil, safe operation, and non-standard safety items, testing material and etc.

Guarantee

The warranty will be maintenance, maintain in the guarantee period of 18 months starting from delivery. Because of the quality of equipment during the guarantee period, we will provide the parts free of charge, which is in the conditions of correct operation. (Natural disasters or factors which can’t be forced by human are excluded).

Payment terms

40% in advance

60% is paid before shipping
