Name: Metal Galvanized Gutter Downspout Roll Forming Machine PCL Control
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: دستگاه رول شکل دهی لوله پایین
Price: 16,500.00 USD
Availability: InStock

خانه > محصولات > دستگاه رول شکل دهی لوله پایین >

Metal Galvanized Gutter Downspout Roll Forming Machine PCL Control

Metal Downspout Roll Forming Machine,Galvanized Downspout Roll Forming Machine,PCL Downspout Roll Forming Machine

Galvanized Downspout Roll Forming Machine

PCL Downspout Roll Forming Machine

محل منبع:

چین

نام تجاری:

CANGZHOU FMS

گواهی:

ISO CE

شماره مدل:

دستگاه رول شکل دهی لوله پایین

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

دستگاه ساخت ناودان گالوانیزه دستگاه شکل دهی رول ناودان فلزی Downspout

ظرفیت تولید:

8-12 متر در دقیقه

برش مواد تیغه:

Cr 12 Mov

ضخامت نورد:

0.3-0.8mm

ابعاد (L*W*H):

7800*1200*1400 میلی متر

وزن ناخالص در واحد محصول:

6500 کیلوگرم

ولتاژ:

3 فاز 380 ولت 50 هرتز یا طبق نیاز شما

سیستم کنترل:

PCL

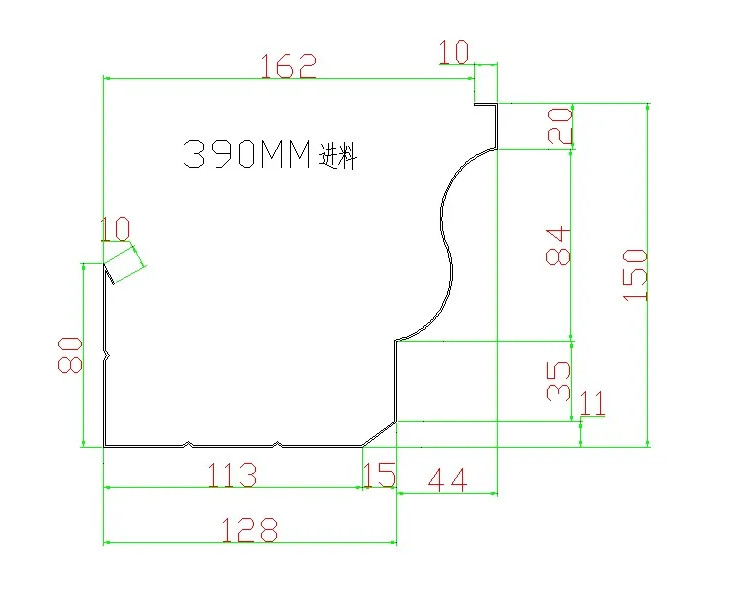

عرض تغذیه:

390 میلی متر

برجسته کردن:

Metal Downspout Roll Forming Machine,Galvanized Downspout Roll Forming Machine,PCL Downspout Roll Forming Machine

Galvanized Downspout Roll Forming Machine

PCL Downspout Roll Forming Machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

20 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

Mobile Vegetable Planting Trough Forming Machine with Hydraulic Motor 5.5KW and 8-15m/min Production Capacity for Greenhouse Vegetable Cultivation

بهترین قیمت رو بدست بیار

Portable Gutter Roll Forming Machine with 500mm Feeding Width and 8-15m/min Production Capacity for Various Growing Methods

بهترین قیمت رو بدست بیار

Mobile Greenhouse Vegetable Planting Trough Forming Machine With Quickly And Efficiently 5.5KW Hydraulic Motor

بهترین قیمت رو بدست بیار

Portable Greenhouse Planting Trough Forming Machine with Hydraulic Motor 5.5KW 380V/50Hz/3Phase and 45# Steel Shaft

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

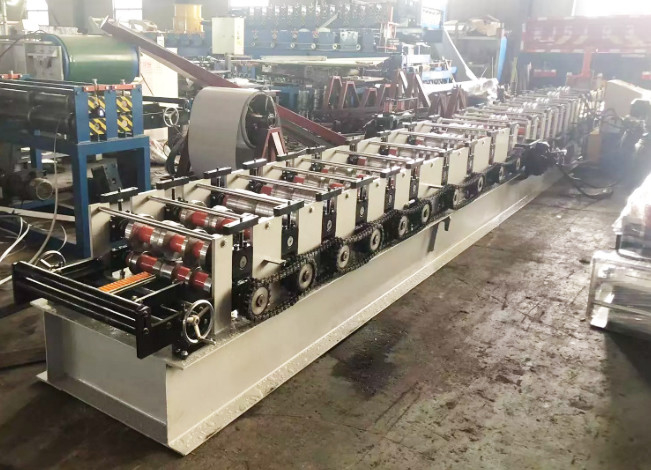

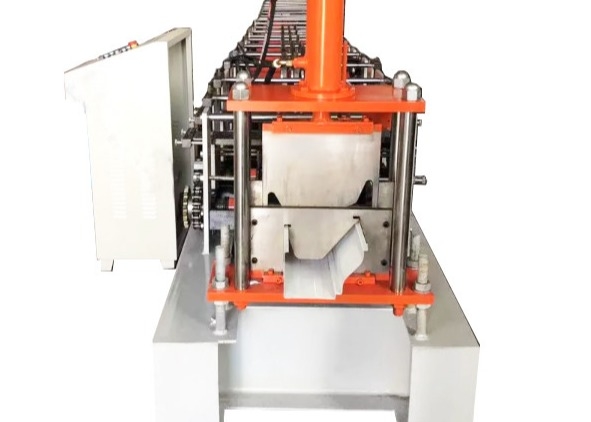

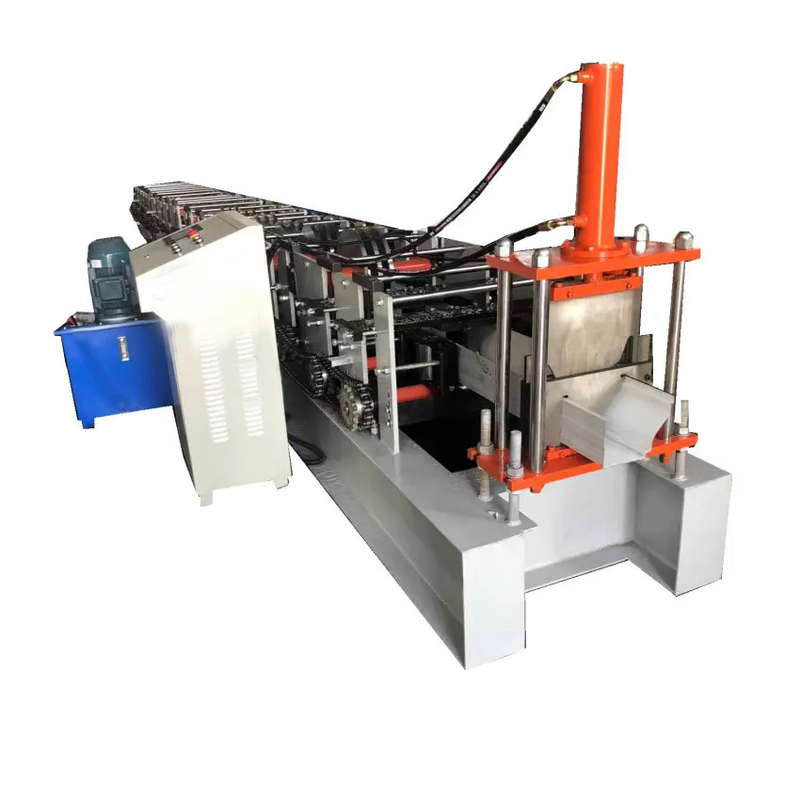

Galvanized Gutter Making Machine Downspout Metal Gutter Roll Forming Machine

Galvanized Gutter Making Machine Downspout Metal Gutter Roll Forming Machine can bend the roll formed pipe, and let the drainpipe and the bending connect to be the whole.The product after roll forming has long working time than the tranditional ppc pipe, and not aging. It can make the project more integrate, and help to enhance the image of the all project.The equipment adopts PLC control, AC frequency and adjusting the speed technology, and it realizes the continuous automatically production, therefore, it is really a new type of energy-saving and high-effective producing equipment for steel structure.

Specification

Galvanized Gutter Making Machine Downspout Metal Gutter Roll Forming Machine
Processing material	aluzinc/galvanized steel/colored steel coil
Material thickness	0.3-0.8mm
Frame design	460mm According to customer’s request
Main motor power	4 kw
Material of forming roller	45# steel, CNC lathes, Hard Chrome Coated
Shafts Diameter	Φ75mm
Main motor power	7.5KW
Max. Line speed of roll former	15m/min (Higher speed is available, depends on the specification required by the buyer)
Hydraulic group power	4KW
Material of cutting blade	Cr12, hear treatment
Electric Standard	380V /50Hz/3PH or as per customer's requirements
Main frame	300H steel

Installation

During the installation and adjustment of the equipment, our engineers shall provide the training to the buyer’s personal request to operate and maintain the equipment. Including foundation construction, electrical works, hydraulic oil, safe operation, and non-standard safety items, testing material and etc.

Guarantee

The warranty will be maintenance, maintain in the guarantee period of 18 months starting from delivery. Because of the quality of equipment during the guarantee period, we will provide the parts free of charge, which is in the conditions of correct operation. (Natural disasters or factors which can’t be forced by human are excluded).

Payment terms

40% in advance

60% is paid before shipping
