Name: Steel Tile Roofing Sheet Double Layer Roll Forming Machine 840 900
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: دو لایه
Price: 16,000.00 USD
Availability: InStock

خانه > محصولات > دستگاه رول شکل دهی کاشی سقف >

Steel Tile Roofing Sheet Double Layer Roll Forming Machine 840 900

ISO Double Layer Roll Forming Machine,Double Layer Roll Forming Machine 15m/min

Double Layer Roll Forming Machine 15m/min

محل منبع:

سرزمین اصلی چین

نام تجاری:

FMS

گواهی:

ISO CE

شماره مدل:

دو لایه

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

دستگاه رول فرمینگ ورق کاشی فولادی دولایه 840 900 با کیفیت بالا

ابعاد (L*W*H):

7.5 متر * 1.6 متر * 1.4 متر

وزن:

6300 کیلوگرم

ولتاژ:

380/50Hz/3PH یا سفارشی

عرض تغذیه:

1200 میلی متر

ظرفیت تولید:

30 متر در دقیقه

مواد خام:

PPGI PPGL GI GL

مواد برش:

Cr12/Cr12 Mov

برجسته کردن:

ISO Double Layer Roll Forming Machine,Double Layer Roll Forming Machine 15m/min

Double Layer Roll Forming Machine 15m/min

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

40 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

6m Automatic Stacker for Roof Sheet Roll Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

the factory price for 0.3-0.8mm thickness Glazed Roof sheet forming machine

بهترین قیمت رو بدست بیار

ویدئو

2025 New Design for Glazed Roof Tile Roof Sheet Roll Forming Machine With 18 Rows

بهترین قیمت رو بدست بیار

ویدئو

4meter/Min Glazed Tile Roll Forming Machine With 18 Rows

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

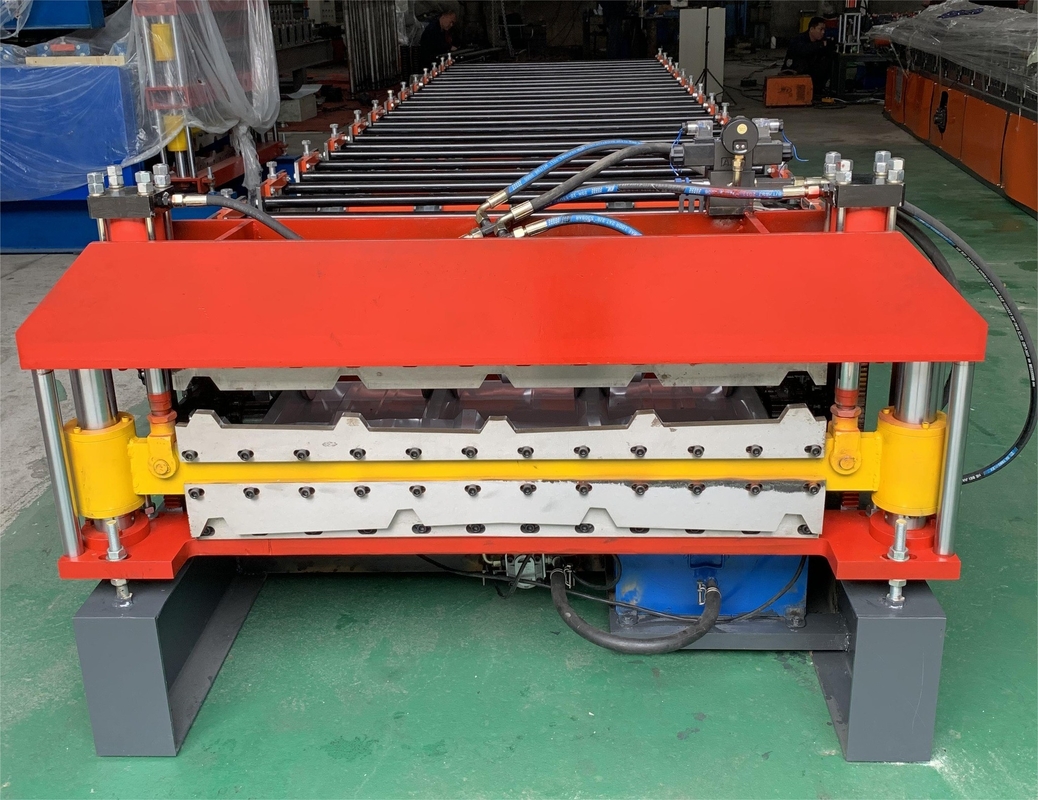

Steel Tile Roofing Sheet Double Layer Roll Forming Machine 840 900 High Quality

Automatic Color Steel Roll Forming Machine IBR Profile Roof Sheet Tile Making Machinery Price is a machine composed of unwinding, forming, and post-forming cutting. Its color plate has a flat and beautiful appearance, uniform paint patterns, high strength, and durability. It is widely used in industrial civil buildings, such as factory buildings, warehouses, stadiums, exhibition pavilions, theaters and other rooms and walls.

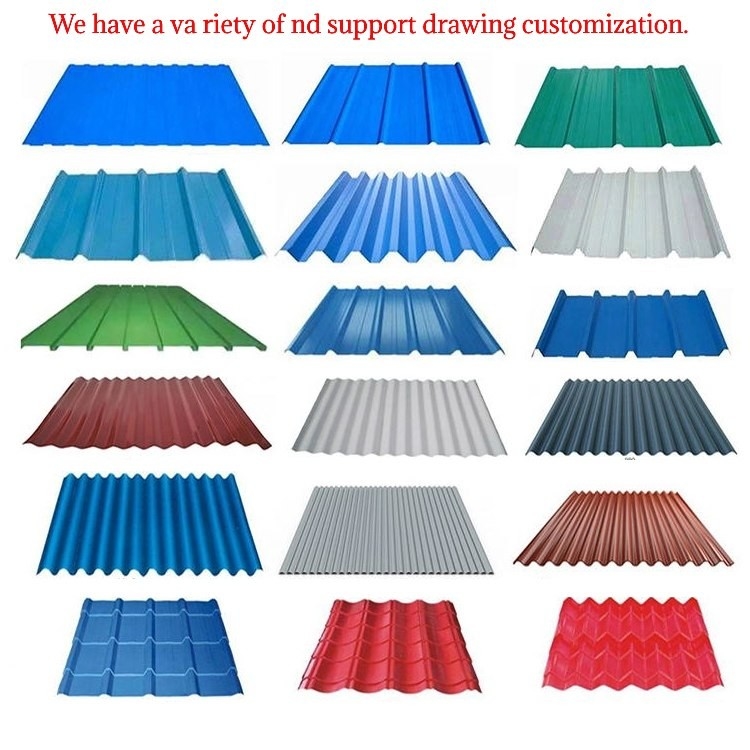

Tile making machine finished panel

When you make order, we will as the design for we confirmed before, measure all for you, once the machine finished.

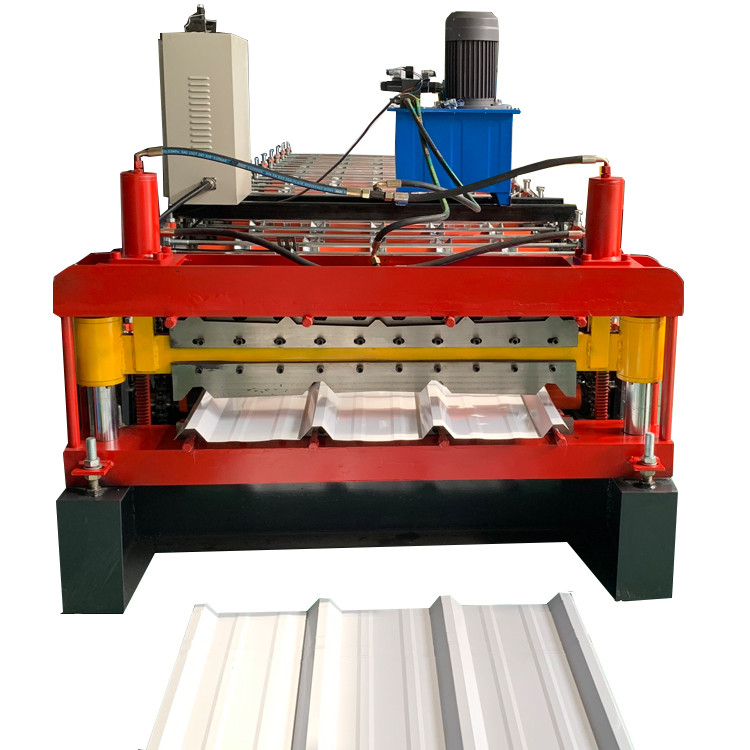

This roll forming machine can roll form metal roofing sheet. After roll formed by this roll forming machine, the surface will be very smooth and beautiful without any scratch on surface.

Roll forming process: uncoiler, roll forming, forming step effect, cut to length.

Fully Automatic Control System with PLC.

Easy operation: Key in the length and quantity on the control panel.

We also can do a custom roll forming machine, We can design the machine according to your specification and profile drawing.

Specification

Dimensions	7.5m1.6m1.4m
hydraulic transmission	15 m/min
Main frame material	300H Steel
Thickness of plate in equipment	14mm
Roll forming row number	high layer:9 row (900), under layer: 11 row (840)
Forming shaft material	45# steel quenching treatment
Molding shaft dimension	Diameter of 70
Roll shape material	45# steel with hard chrome plating
Number of rollers	11rollers
Power	6kw
Main motor power	4kw
Forming speed	8-10 m/min
Material thickness	0.3-0.8mm

Installation

During the installation and adjustment of the equipment, our engineers shall provide the training to the buyer’s personal request to operate and maintain the equipment. Including foundation construction, electrical works, hydraulic oil, safe operation, and non-standard safety items, testing material and etc.

Guarantee

The warranty will be maintenance, maintain in the guarantee period of 18 months starting from delivery. Because of the quality of equipment during the guarantee period, we will provide the parts free of charge, which is in the conditions of correct operation. (Natural disasters or factors which can’t be forced by human are excluded).

Payment terms

40% in advance

60% is paid before shipping
