Name: Downpipe Aluminium Gutter Profile Roll Forming Machine Automatic
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: دستگاه رول شکل دهی لوله پایین
Price: 16,500.00 USD
Availability: InStock

خانه > محصولات > دستگاه رول شکل دهی لوله پایین >

Downpipe Aluminium Gutter Profile Roll Forming Machine Automatic

Downspout Roll Forming Machine Automatic,Downpipe Profile Roll Forming Machine,10m/min Downspout Roll Forming Machine

Downpipe Profile Roll Forming Machine

10m/min Downspout Roll Forming Machine

محل منبع:

چین

نام تجاری:

CANGZHOU FMS

گواهی:

ISO CE

شماره مدل:

دستگاه رول شکل دهی لوله پایین

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

Downpipe آلومینیوم پروفیل ناودان رول فرمینگ دستگاه اتوماتیک

ظرفیت تولید:

8-10 متر در دقیقه

قدرت:

5.5 کیلووات

ابعاد (L*W*H):

8.5 متر * 1.7 متر * 1. 2 متر

ضخامت فولاد:

0.35-0.7 میلی متر

ولتاژ:

380 ولت 50 هرتز 3 فاز یا به عنوان الزامات

اتهام اتوماسیون:

تمام توان

قدرت موتور:

5.5 کیلووات

برجسته کردن:

Downspout Roll Forming Machine Automatic,Downpipe Profile Roll Forming Machine,10m/min Downspout Roll Forming Machine

Downpipe Profile Roll Forming Machine

10m/min Downspout Roll Forming Machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

20 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

Mobile Vegetable Planting Trough Forming Machine with Hydraulic Motor 5.5KW and 8-15m/min Production Capacity for Greenhouse Vegetable Cultivation

بهترین قیمت رو بدست بیار

Portable Gutter Roll Forming Machine with 500mm Feeding Width and 8-15m/min Production Capacity for Various Growing Methods

بهترین قیمت رو بدست بیار

Mobile Greenhouse Vegetable Planting Trough Forming Machine With Quickly And Efficiently 5.5KW Hydraulic Motor

بهترین قیمت رو بدست بیار

Portable Greenhouse Planting Trough Forming Machine with Hydraulic Motor 5.5KW 380V/50Hz/3Phase and 45# Steel Shaft

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

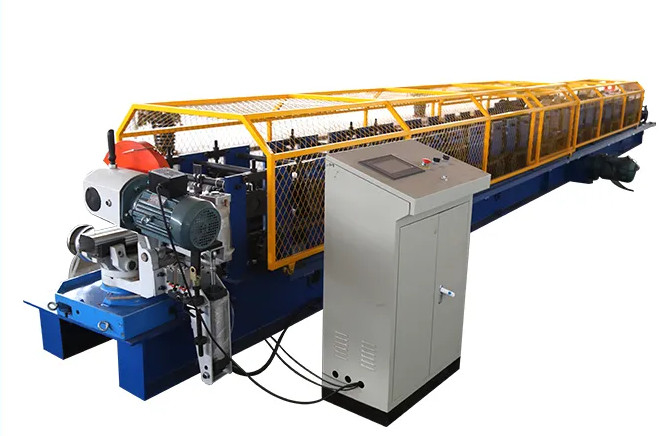

Downpipe Aluminium Gutter Profile Roll Forming Machine Automatic

Downpipe Aluminium Gutter Profile Roll Forming Machine Automatic Process Flow:
Un - coiler roll forming M/C - PCLcontrol System - hydraulic Cutting - Discharge table

Square Down Pipe Roll Forming Machine Downspout Forming Machine is one type of interlock pipe making machine. A downspout is a pipe taht runs vertically along the side of the home,it is connected at the top to a hole in the gutter channel,the other end bends outward and usually sits several inches above the ground.This allows the water to flow away from the homes it exits the pipe.A gutter is a channel installed at or just below the roof line at the edges of the home where the roof slopes downward.

Specification

Description	Explaination
Working speed	8-10m/min(Including shear time)
Pressed plate thickness	0.3-0.8mm
Control mode	Panasonic PLC
Decoiler	5 t manual decoiler
Number of molding passes	16 lanes
Roll material	After finishing, the surface of 45# steel is chrome plated.
Shaft material and diameter	45# Steel finishing,Shaft diameter is￠70mm
Main engine power	5.5kw
Power of hydraulic station	5.5kw
Hydraulic pressure	12Mpa
Scissors material	Cr12Mov, quench HRC 58-62℃
Length tolerance	3m±1.5mm
Voltage	380V, 50HZ,3 phase(According to customer requirements can be adjusted)
Transmission mode	1.0 inch single row chain
Equipment size	LWH—8.5m1.7m1. 2m

Installation

During the installation and adjustment of the equipment, our engineers shall provide the training to the buyer’s personal request to operate and maintain the equipment. Including foundation construction, electrical works, hydraulic oil, safe operation, and non-standard safety items, testing material and etc.

Guarantee

The warranty will be maintenance, maintain in the guarantee period of 18 months starting from delivery. Because of the quality of equipment during the guarantee period, we will provide the parts free of charge, which is in the conditions of correct operation. (Natural disasters or factors which can’t be forced by human are excluded).

Payment terms

40% in advance

60% is paid before shipping
