Name: Metal Downspout Pipe Cold Roll Forming Machine Square Aluminum Down Pipe
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: دستگاه رول شکل دهی لوله پایین
Price: 16,500.00 USD
Availability: InStock

خانه > محصولات > دستگاه رول شکل دهی لوله پایین >

Metal Downspout Pipe Cold Roll Forming Machine Square Aluminum Down Pipe

Downspout Pipe Cold Roll Forming Machine,15m/min Cold Roll Forming Machine,Aluminum Downpipe Roll Forming Machine

15m/min Cold Roll Forming Machine

Aluminum Downpipe Roll Forming Machine

محل منبع:

چین

نام تجاری:

CANGZHOU FMS

گواهی:

ISO CE

شماره مدل:

دستگاه رول شکل دهی لوله پایین

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

لوله فلزی Downspout Cold Roll Forming Machine Square Down Pipe آلومینیومی

ظرفیت تولید:

8-15 متر در دقیقه

قدرت:

5.5 کیلووات

ابعاد (L*W*H):

8.5 متر * 1.7 متر * 1. 2 متر

وزن:

5.8 تن

ولتاژ:

380 ولت 50 هرتز 3 فاز یا به عنوان الزامات

سرعت:

1-15 متر در دقیقه

قدرت موتور:

5.5 کیلووات

ضخامت:

0.3-0.7 میلی متر

قطر لوله::

80*100 میلی متر

برجسته کردن:

Downspout Pipe Cold Roll Forming Machine,15m/min Cold Roll Forming Machine,Aluminum Downpipe Roll Forming Machine

15m/min Cold Roll Forming Machine

Aluminum Downpipe Roll Forming Machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

20 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

Mobile Vegetable Planting Trough Forming Machine with Hydraulic Motor 5.5KW and 8-15m/min Production Capacity for Greenhouse Vegetable Cultivation

بهترین قیمت رو بدست بیار

Portable Gutter Roll Forming Machine with 500mm Feeding Width and 8-15m/min Production Capacity for Various Growing Methods

بهترین قیمت رو بدست بیار

Mobile Greenhouse Vegetable Planting Trough Forming Machine With Quickly And Efficiently 5.5KW Hydraulic Motor

بهترین قیمت رو بدست بیار

Portable Greenhouse Planting Trough Forming Machine with Hydraulic Motor 5.5KW 380V/50Hz/3Phase and 45# Steel Shaft

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

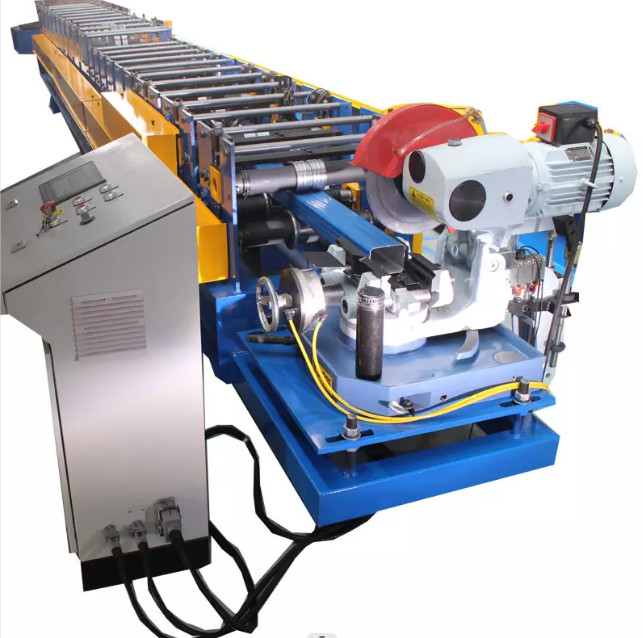

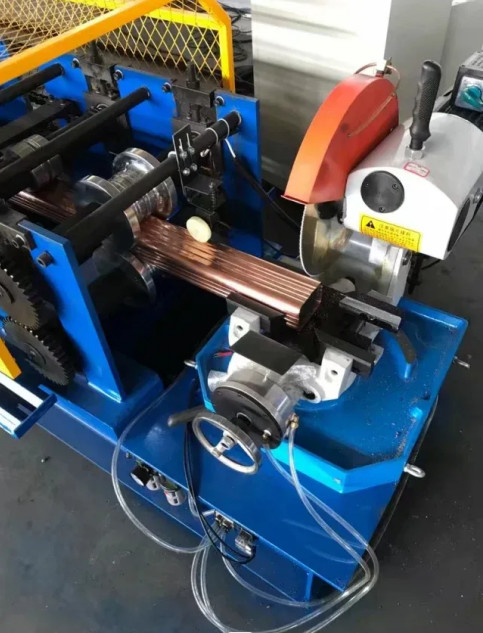

Metal Downspout Pipe Cold Roll Forming Machine Square Aluminum Down Pipe

Metal Downspout Pipe Cold Roll Forming Machine Square Aluminum Down Pipe work process

Uncoiling---main roll former---measure to length---fly saw cutting---product collect table

Metal Downspout Pipe Cold Roll Forming Machine resists thermal expansion and contraction, which means that it remains unaffected from sudden fluctuations in temperature. Steel has an excellent lifetime value, as it can be recycledis one type of interlock pipe making machine. A downspout is a pipe taht runs vertically along the side of the home,it is connected at the top to a hole in the gutter channel,the other end bends outward and usually sits several inches above the ground.This allows the water to flow away from the homes it exits the pipe.

Specification

Series	Detail	Parameter
Decoiler	loading capacity	3 Tons
	Inner diameter	450-550 mm
	Coil width	400 mm
Main roll former	Roller material	45# steel with chromed treatment
	Roller shaft material	45# steel with quenched treatment
	Work speed	8-15 m/min
	Machine structure	Middel plate welded structure frame
	Work power	4 kw
PLC control system	PLC brand	DElTA brand(also can change by your request)
PLC control system	Function	control the length and cutting quantity
Cutting system	Cutting type	Hydraulic cutting
Cutting system	Motor power	3 kw
Run out table	Strcuture	Square pipe weled structure

Installation

During the installation and adjustment of the equipment, our engineers shall provide the training to the buyer’s personal request to operate and maintain the equipment. Including foundation construction, electrical works, hydraulic oil, safe operation, and non-standard safety items, testing material and etc.

Guarantee

The warranty will be maintenance, maintain in the guarantee period of 18 months starting from delivery. Because of the quality of equipment during the guarantee period, we will provide the parts free of charge, which is in the conditions of correct operation. (Natural disasters or factors which can’t be forced by human are excluded).

Payment terms

40% in advance

60% is paid before shipping

Metal Downspout Pipe Cold Roll Forming Machine Square Aluminum Down Pipe 0
