Name: Metal Palisade Fence Roll Forming Making Machine PLC Control
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Sleflock
Price: 12000.00 USD
Availability: InStock

خانه > محصولات > دستگاه رول فرمینگ پانل دیواری >

Metal Palisade Fence Roll Forming Making Machine PLC Control

Metal Palisade Fence Roll Forming Making,PLC Control Fence Roll Forming Machine

PLC Control Fence Roll Forming Machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

CANGZHOU FMS

گواهی:

ISO CE

شماره مدل:

Sleflock

با ما تماس بگیرید

درخواست قیمت

Metal Palisade Fence Roll Forming Making Machine PLC Control

جزئیات محصول

نام محصول:

نرده فلزی حصار رول شکل دهی ماشین ساخت حصار حصار

ظرفیت تولید:

0.3-0.8mm

وزن:

3000 کیلوگرم

ابعاد (L*W*H):

5800*1000*1500 میلی متر

ولتاژ:

380V/440V/220V/415V

برش مواد تیغه:

Cr 12 فولاد درجه یک

ماده غلتکی:

45# فولاد کروم اندود

کنترل کنید:

سیستم PLC(detla).

برجسته کردن:

Metal Palisade Fence Roll Forming Making,PLC Control Fence Roll Forming Machine

PLC Control Fence Roll Forming Machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

20 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

2025 New Design Metal Picket Fence Roll Forming Machine Fence Lines America Style

بهترین قیمت رو بدست بیار

ویدئو

Corrugated Container Board 15m/Min Wall Panel Roll Forming Machine Fully Automatic

بهترین قیمت رو بدست بیار

ویدئو

Trapezoid Steel Roof PPGL Wall Panel Roll Forming Machine 3phases

بهترین قیمت رو بدست بیار

ویدئو

Iron 0.8mm Corrugated Roofing Sheet Roll Forming Machine Hydraulic Cut

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

هم اکنون تماس بگیرید

توضیح محصول

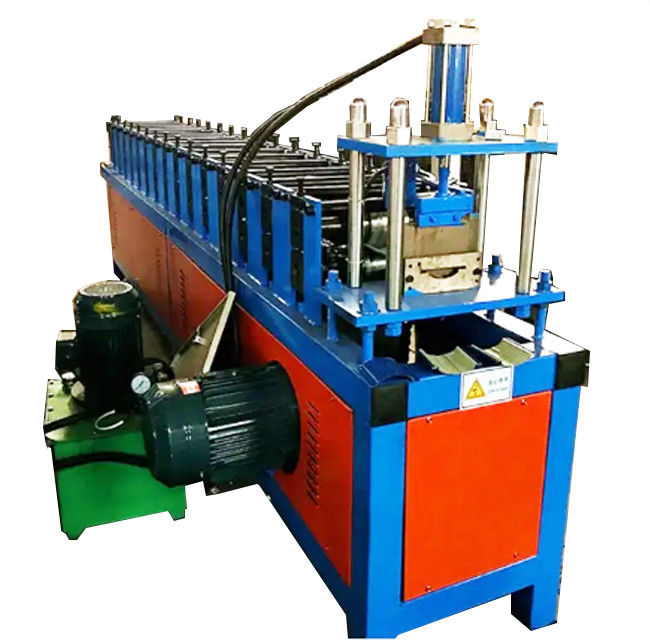

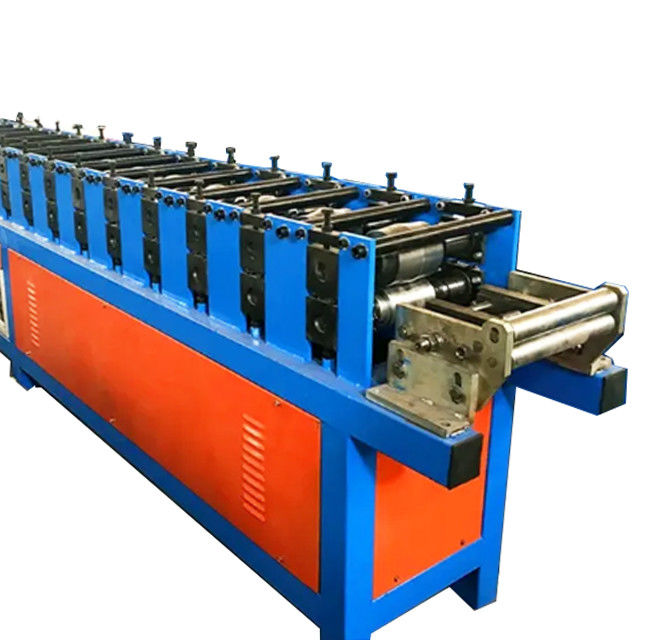

Metal Palisade Fence Roll Forming Making Machine Picket Fence

About Metal Palisade Fence Roll Forming Making Machine Picket Fence:

Our Fence Roll Forming Machine for different models based on different designs or customer's samples . It is a new building material, the products are widely used as the roof and wall of factory, warehouse, garage, gymnasium, exhibition center.It has many advantages, such as easy installation, short building period, beauty, light weight but high strength.

Specification

No.	Metal Palisade Fence Roll Forming Making Machine
1	Suitable to process	Color alu-zinc steel strips
2	Roller	15 Rows plus leveling device
3	Dimensions	5.811.5m
4	Motor Power	3Kw
5	Pump Station Motor	4Kw.Lichao Brand
6	Thickness of the plate	0.3-0.8mm
7	Productivity	10-15m/min
8	Material of the cutting blade	Cr12,Quenched treatment 58℃-60℃
9	Diameter of the roller	Φ70mm
10	Weight	About 3000kg
11	Main structure of the machine	Square steel frame
12	Processing precision	Within 1.0mm
13	Side panel of machine	16mm
14	Chain Wheel and Cycle Chain	1 Inch
15	Voltage	380V 50Hz 3phases or as customer's need
16	Control system	PLC control (Delta)
17	Frequency system	Delta
18	Drive mode	Gear driver
19	Touch screen	Delta
20	Rolling materials	45# forging steel with chromium plate
21	Length Tolerance	±2mm

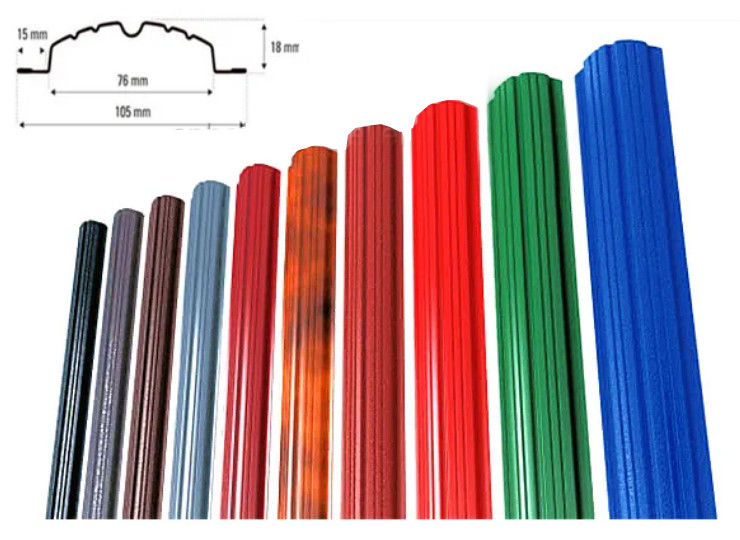

Application

selflock color steel has been specially processed, with strong anti -external power capacity, beautiful and solid external nature, and it is more appropriate to make wall panels and layers. By adjusting the freedom side, it can also be completely separated by rain.

Payment terms

40% in advance as advance payment
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port or CNF
The Delivery Time: 30 days after the down payment is received.
