Name: Hydraulic Cutting Rain Collect Gutter Downspout Roll Forming Machine PCL Control
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: دستگاه تشکیل رول روده
Price: 16,500.00 USD
Availability: InStock

خانه > محصولات > دستگاه رول شکل دهی لوله پایین >

Hydraulic Cutting Rain Collect Gutter Downspout Roll Forming Machine PCL Control

Steel Rain Gutter Roll Forming Machine,Downspout Roll Forming Machine PCL Control,Hydraulic Downspout Roll Forming Machine

Downspout Roll Forming Machine PCL Control

Hydraulic Downspout Roll Forming Machine

محل منبع:

چین

نام تجاری:

CANGZHOU FMS

گواهی:

ISO CE

شماره مدل:

دستگاه تشکیل رول روده

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

هیدرولیک برش باران جمع آوری ناودان رول شکل گیری دستگاه کنترل PCL

ظرفیت تولید:

8-12 متر در دقیقه

برش مواد تیغه:

Cr 12 Mov

ضخامت نورد:

0.3-0.8mm

ابعاد (L*W*H):

7800*1200*1400 میلی متر

وزن ناخالص در واحد محصول:

4500 کیلوگرم

ولتاژ:

3 فاز 380 ولت 50 هرتز یا طبق نیاز شما

برجسته کردن:

Steel Rain Gutter Roll Forming Machine,Downspout Roll Forming Machine PCL Control,Hydraulic Downspout Roll Forming Machine

Downspout Roll Forming Machine PCL Control

Hydraulic Downspout Roll Forming Machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

20 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

Mobile Vegetable Planting Trough Forming Machine with Hydraulic Motor 5.5KW and 8-15m/min Production Capacity for Greenhouse Vegetable Cultivation

بهترین قیمت رو بدست بیار

Portable Gutter Roll Forming Machine with 500mm Feeding Width and 8-15m/min Production Capacity for Various Growing Methods

بهترین قیمت رو بدست بیار

Mobile Greenhouse Vegetable Planting Trough Forming Machine With Quickly And Efficiently 5.5KW Hydraulic Motor

بهترین قیمت رو بدست بیار

Portable Greenhouse Planting Trough Forming Machine with Hydraulic Motor 5.5KW 380V/50Hz/3Phase and 45# Steel Shaft

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

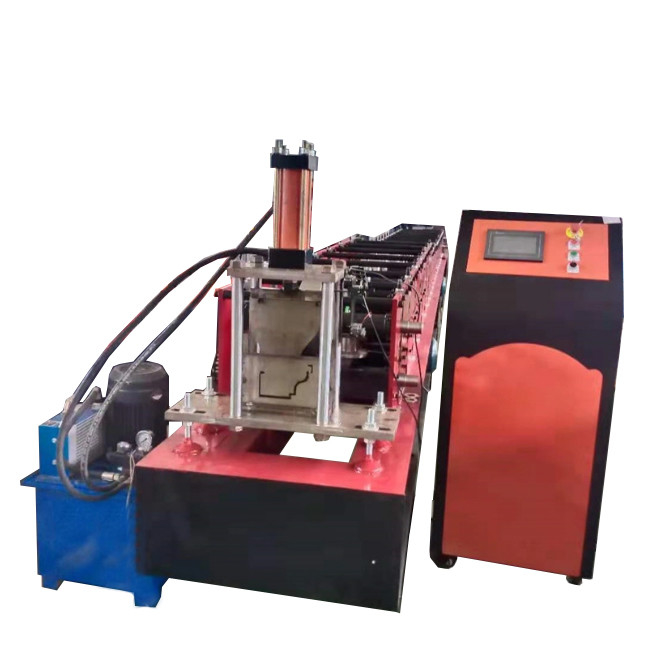

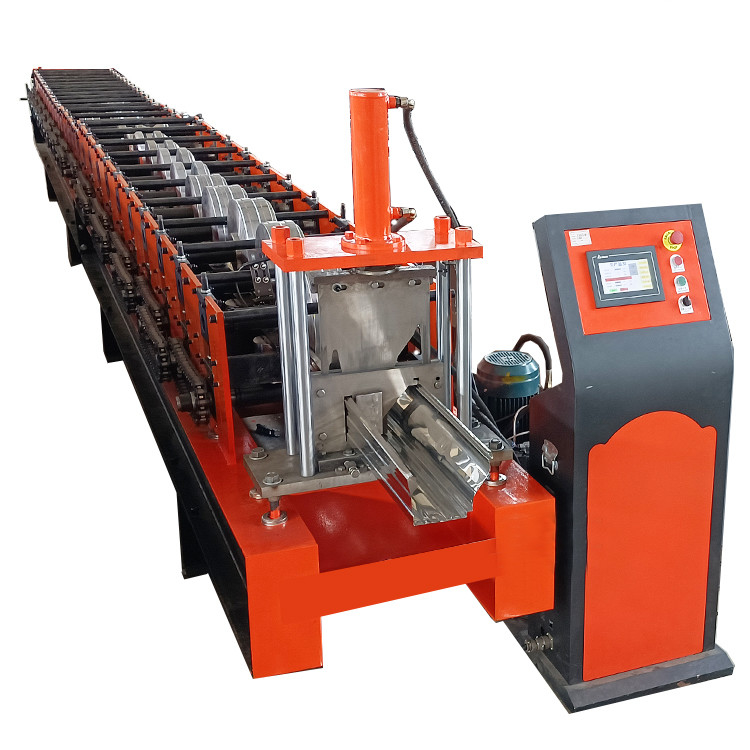

Hydraulic Cutting Rain Collect Gutter Downspout Roll Forming Machine PCL Control

Steel Rain Gutter Roll forming machine . After the establishment of the roll, the product is longer than the non -aging -feet PPC pipe. It can make the project more integrated and help enhance the image of all projects. The device is controlled by PLC, the frequency of AC, and adjusting speed technology, and realizes the continuous production of continuous production. Therefore, it is indeed a new type of energy saving and efficient production equipment for steel structures.

Specification

Galvanized Gutter Making Machine Downspout Metal Gutter Roll Forming Machine
Processing material	colored steel coil
Material thickness	0.3-0.8mm
Frame design	according to design drawing
Main motor power	4 kw
Material of forming roller	45# steel, CNC lathes, Hard Chrome Coated
Shafts Diameter	Φ70mm
Main motor power	7.5 KW
Max. Line speed of roll former	15m/min
Hydraulic group power	4KW
Material of cutting blade	Cr12, hear treatment
Electric Standard	380V /50Hz/3PH or as per customer's requirements
Main frame	300H steel

Installation

During the installation and adjustment of the device, our engineers should provide the buyer's personal request to provide training and maintenance of the equipment. Including basic buildings, electrical engineering, hydraulic oil, safety operations and non -standard safety items, test materials, etc.

Guarantee

The warranty will be maintained and during the delivery period during the delivery period. Due to the quality of the equipment during the guarantee period, we will provide parts for free, which is the correct operating condition. (Natural disasters or factors that humans cannot force are excluded).

Payment terms

40% in advance

60% is paid before shipping

Hydraulic Cutting Rain Collect Gutter Downspout Roll Forming Machine PCL Control 0
