Name: Standing Seam Roofing Panel Roll Forming Machine With Hydraulic Cutting
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: درز ایستاده
Price: 28,000.00 USD
Availability: InStock

خانه > محصولات > دستگاه رول فرمینگ سقف >

Standing Seam Roofing Panel Roll Forming Machine With Hydraulic Cutting

Hydraulic Cutting Standing Seam Roll Former,ISO Roofing Panel Roll Forming Machine,Hydraulic Roofing Panel Roll Forming Machine

ISO Roofing Panel Roll Forming Machine

Hydraulic Roofing Panel Roll Forming Machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

FMS

گواهی:

ISO

شماره مدل:

درز ایستاده

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

دستگاه رول فرمینگ پانل سقف درز ایستاده با برش هیدرولیک

استفاده کردن:

درز ایستاده

ابعاد (L*W*H):

8.5 متري × 1.5 متري × 1.2 متري

ضخامت نورد:

0.5-0.8

وزن:

5000 کیلوگرم

وضعیت:

جدید

ولتاژ:

380V/415V/220V،50/60Hz،3Ph

ظرفیت تولید:

18-20

برجسته کردن:

Hydraulic Cutting Standing Seam Roll Former,ISO Roofing Panel Roll Forming Machine,Hydraulic Roofing Panel Roll Forming Machine

ISO Roofing Panel Roll Forming Machine

Hydraulic Roofing Panel Roll Forming Machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

40 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

بهترین قیمت رو بدست بیار

ویدئو

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

بهترین قیمت رو بدست بیار

ویدئو

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

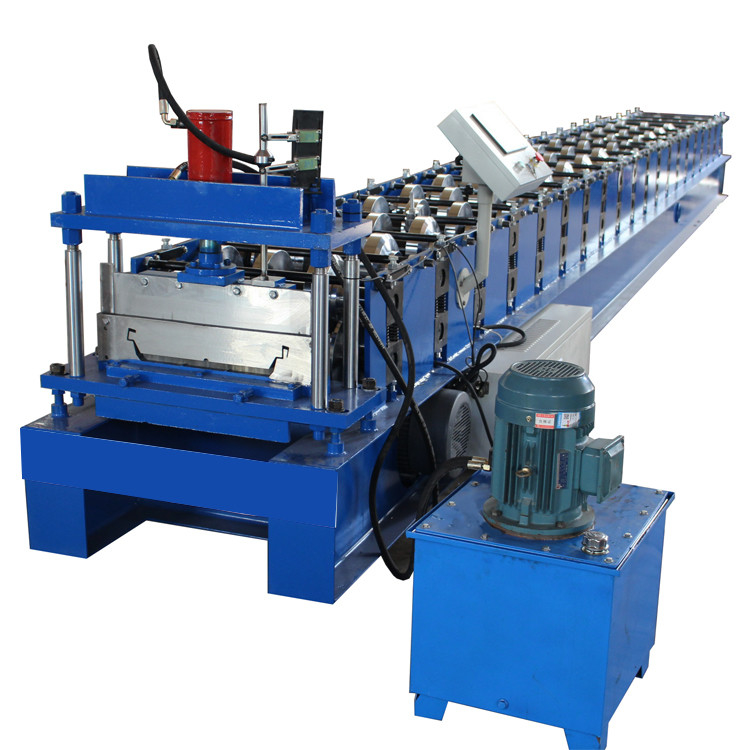

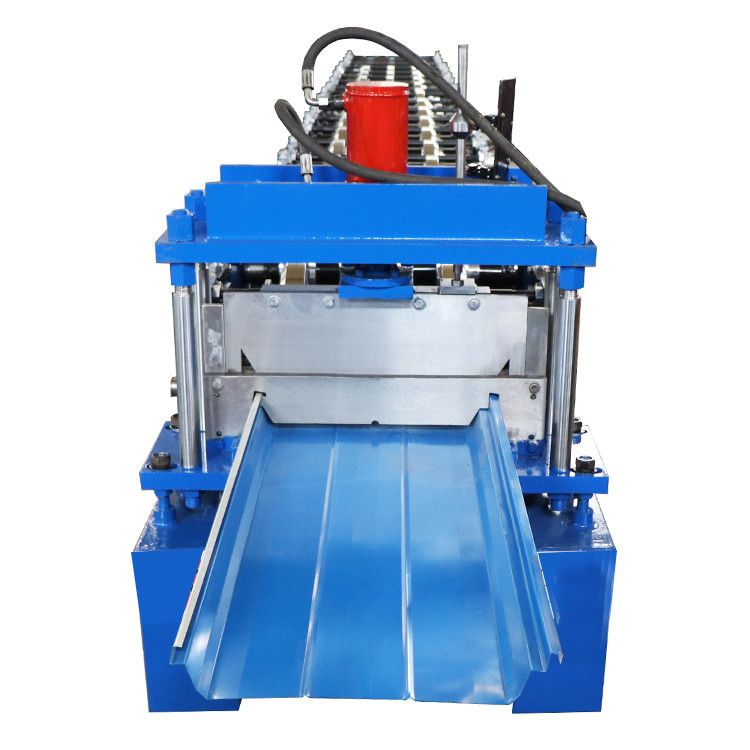

Standing Seam Roofing Panel Roll Forming Machine With Hydraulic Cutting

The advantages of Standing Seam Roofing Panel Roll Forming Machine Portable Full Automatic are as follows: 1.Low cost, light weight but high strength, short building period, and re-cycle use. 2.Easy operation, low maintenance cost. Rollers manufactured from high quality 40Cr steel, CNC lathes, Heat Treatment.with black treatment or Hard-Chrome Coating for options. Body frame made from 350# H type steel by welding. Made by high quality mold steel Cr12 with heat treatment.Cutter frame made from high quality 20mm steel plate by welding.hydraulic motor: 4KW, Hydraulic pressure range: 0-16Mpa

Specification

No.	Item	Description
1	Coil	Galvalume, Galvanized, PPGI, Aluminum
2	Main motor	5.5KW*2
3	Forming speed	15-18m/min
4	Cut-to-length tolerance	≤±2 mm
5	Dimension (LWH)	5.5M x 1.5M x 1.2M
6	Machine Weight	8310 kg
7	Electrical Control System	Panasonic PLC (can be customized)
8	Drive Motor Power	5 KW
9	Hydraulic Station Power	4 KW
10	Cutting Accuracy	±2 mm

Guarantee

1. We guarantee that there will be no failure due to manufacturing defects within one year from the date of purchase, except for electrical parts.

2. Under the following circumstances, maintenance will not be carried out even within the warranty period

-Damage caused by natural disasters

-Failure due to user error

-Failure due to modification

-Failure due to further movement or transportation after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
