Name: 3phases Rain Water Downspout Roll Forming Machine Suitable Materials Thickness 0.4-0.8mm
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Downspout Plus Elbow
Price: 16,500.00 USD
Availability: InStock

خانه > محصولات > دستگاه رول شکل دهی لوله پایین >

3phases Rain Water Downspout Roll Forming Machine Suitable Materials Thickness 0.4-0.8mm

0.8mm Downspout Roll Forming Machine,0.8mm downspout making machine,3phases Downspout Roll Forming Machine

0.8mm downspout making machine

3phases Downspout Roll Forming Machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

CANGZHOU WILLING

گواهی:

ISO CE

شماره مدل:

Downspout Plus Elbow

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

زانوهای آلومینیومی مستطیلی / زانوهای گرد Downspout Roll Forming Machine

مواد خام:

PPGI، AL، GI

ولتاژ:

380 ولت 50Hz 3Phases

سیستم کنترل:

PLC

خدمات پس از فروش ارائه شده است:

پشتیبانی فنی تمام عمر

گارانتی:

1 سال

برجسته کردن:

0.8mm Downspout Roll Forming Machine,0.8mm downspout making machine,3phases Downspout Roll Forming Machine

0.8mm downspout making machine

3phases Downspout Roll Forming Machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

20 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

Mobile Vegetable Planting Trough Forming Machine with Hydraulic Motor 5.5KW and 8-15m/min Production Capacity for Greenhouse Vegetable Cultivation

بهترین قیمت رو بدست بیار

Portable Gutter Roll Forming Machine with 500mm Feeding Width and 8-15m/min Production Capacity for Various Growing Methods

بهترین قیمت رو بدست بیار

Mobile Greenhouse Vegetable Planting Trough Forming Machine With Quickly And Efficiently 5.5KW Hydraulic Motor

بهترین قیمت رو بدست بیار

Portable Greenhouse Planting Trough Forming Machine with Hydraulic Motor 5.5KW 380V/50Hz/3Phase and 45# Steel Shaft

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

Rain Water Downspout Roll Forming Machine Elbow Bending Suitable Materials Thickness 0.4 - 0.8mm

Downspout elbows connect to downspouts. In order to fit inside another elbow or downspout, one end of the gutter elbow is crimped. To direct drainage in a particular direction, downspouts are equipped with elbows at ground level.

Profile

Specification

No.	Item	Description
1	Coil	Galvalume, Galvanized, PPGI
2	Raw Material Thickness	0.3 mm - 0.8 mm
3	Working Speed	8-15 m/min
4	Roller Station	20 Stations
5	Dimension (LWH)	9200 mm800 mm1200 mm
6	Machine Weight	9000 KG
7	Electrical Control System	PLC (can be customized)
8	Drive Motor Power	5.5 KW
9	Hydraulic Station Power	4 KW
10	Power Supply	380V, 60HZ, 3 PHASES(can be customized)
11	Cutting Accuracy	± 2 mm
12	Driving Mode	Single Chain 1 inch
13	Material of Shaft	60 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Application

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.

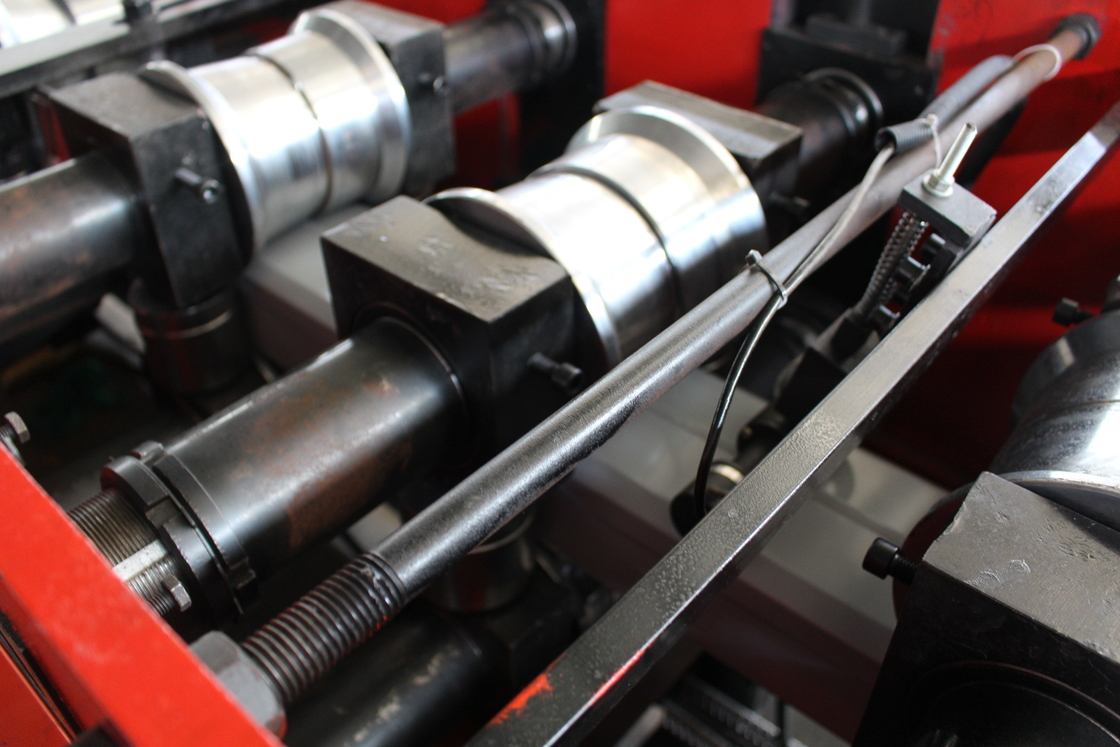

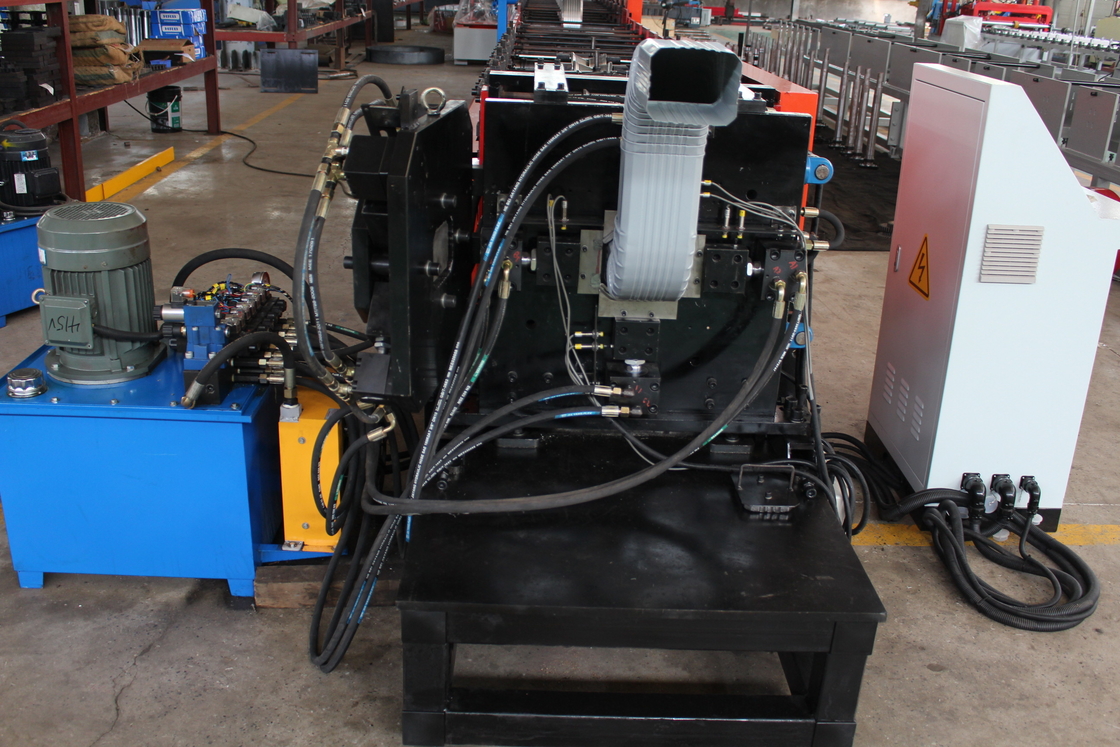

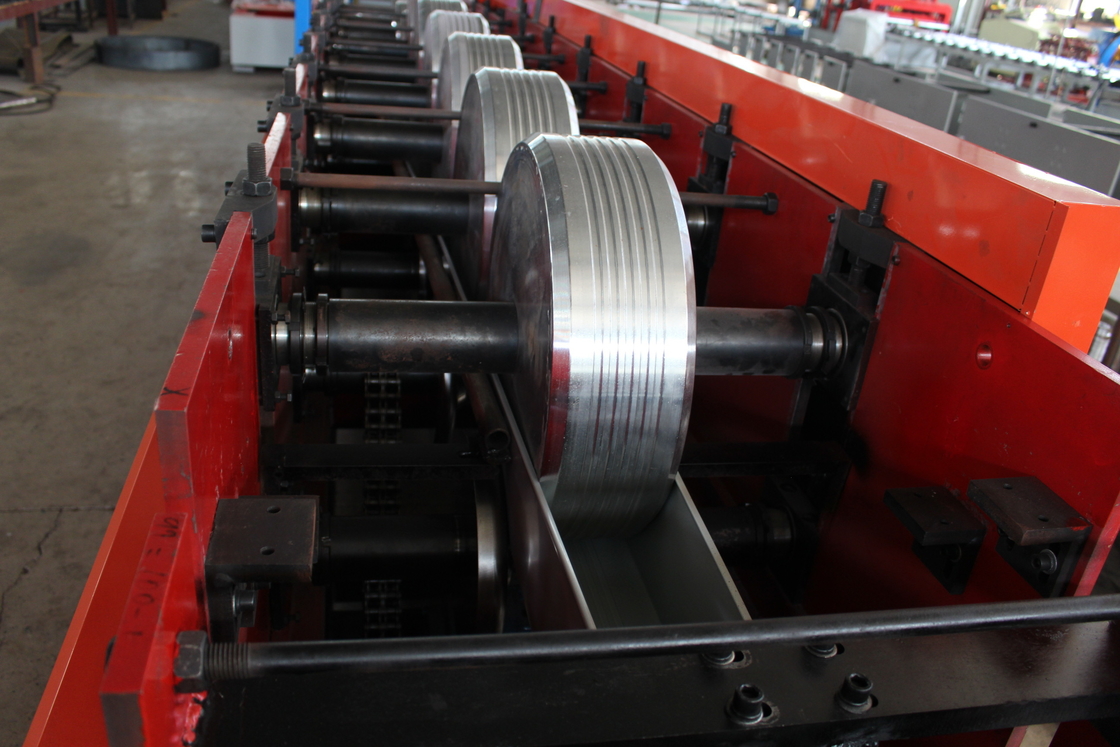

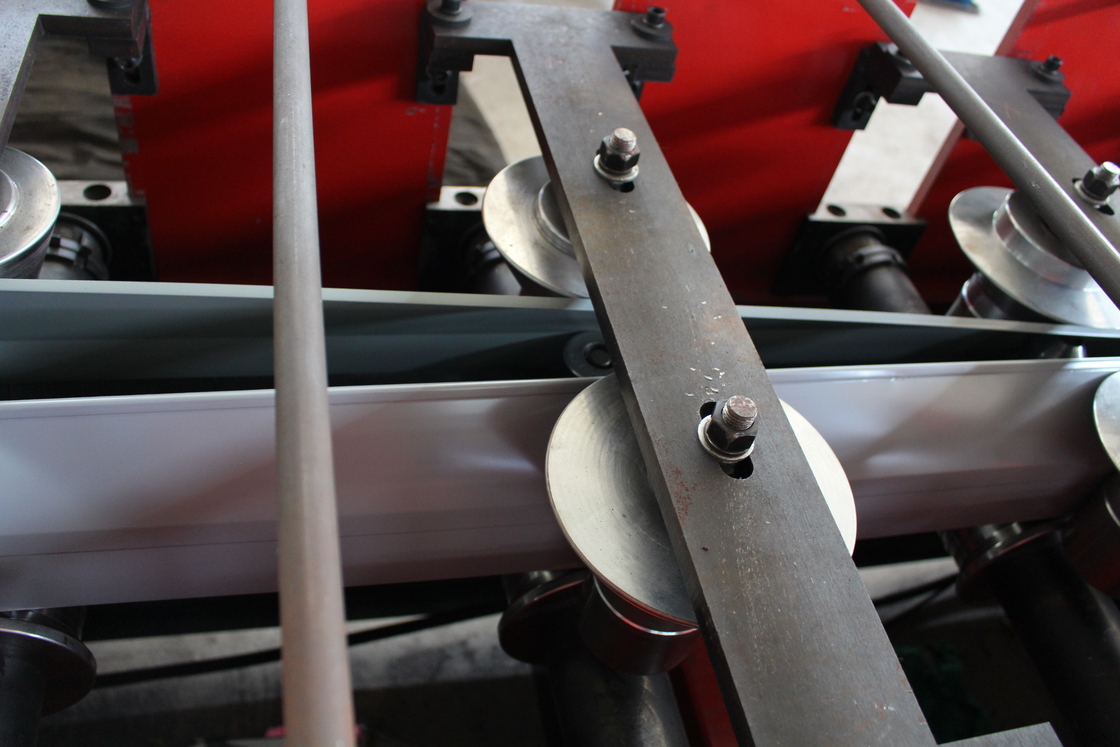

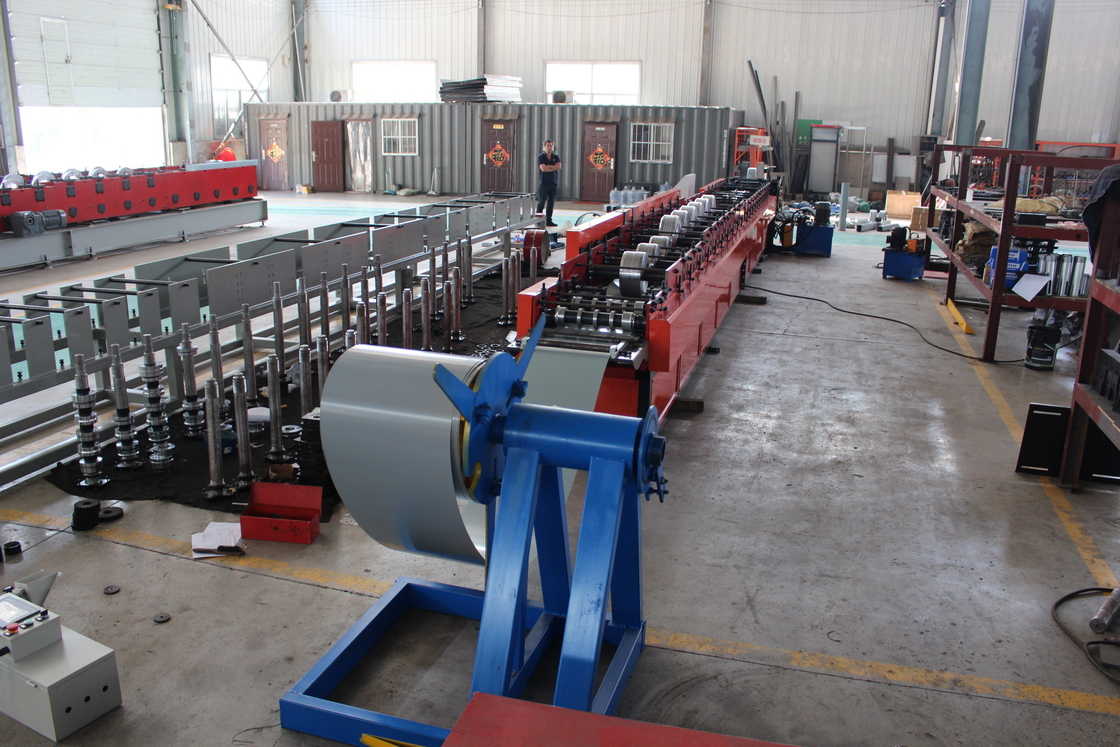

3phases Rain Water Downspout Roll Forming Machine Suitable Materials Thickness 0.4-0.8mm 1
