Name: 380Volt PU Sandwich Shutter Door Roll Forming Machine Making Machine 22Kw
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: درب کرکره ای
Price: 12000.00 USD
Availability: InStock

خانه > محصولات > دستگاه رول فرمینگ درب کرکره ای >

380Volt PU Sandwich Shutter Door Roll Forming Machine Making Machine 22Kw

380Volt Shutter Door Roll Forming Machine,Shutter Door Roll Forming Machine 22Kw,roller shutter door making machine 22Kw

Shutter Door Roll Forming Machine 22Kw

roller shutter door making machine 22Kw

محل منبع:

سرزمین اصلی چین

نام تجاری:

CANGZHOU FMS

گواهی:

ISO CE

شماره مدل:

درب کرکره ای

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

PU ساندویچ کرکره درب رول فرمینگ ماشین آلات سازنده قیمت ها

مواد خام:

گالوالوم، گالوانیزه، PPGI

سرعت کار:

8-15 متر در دقیقه

ضخامت:

0.3-0.8mm

ولتاژ:

380 ولت 50 هرتز، 380 ولت. 50 هرتز. 3 فاز

وزن:

9000 کیلوگرم

برش مواد تیغه:

Cr 12 فولاد درجه یک

مواد برش:

CR12

قدرت:

22 کیلو وات

ماده:

فولاد 45# درجه بالا

برجسته کردن:

380Volt Shutter Door Roll Forming Machine,Shutter Door Roll Forming Machine 22Kw,roller shutter door making machine 22Kw

Shutter Door Roll Forming Machine 22Kw

roller shutter door making machine 22Kw

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

20 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

Metal Chain Driving Shutter Door Roll Forming Machine Speed 20-30m/Min

بهترین قیمت رو بدست بیار

ویدئو

Customized High Speed PU Door Roller Shutter Roll Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

3T Shutter Door Roll Forming Machine For 0.8-1.2mm Thickness And 6.5m0.95m1.2m Size

بهترین قیمت رو بدست بیار

ویدئو

45 Steel Roller Material Shutter Door Roll Forming Machine with 7.5KW PLC Control System

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

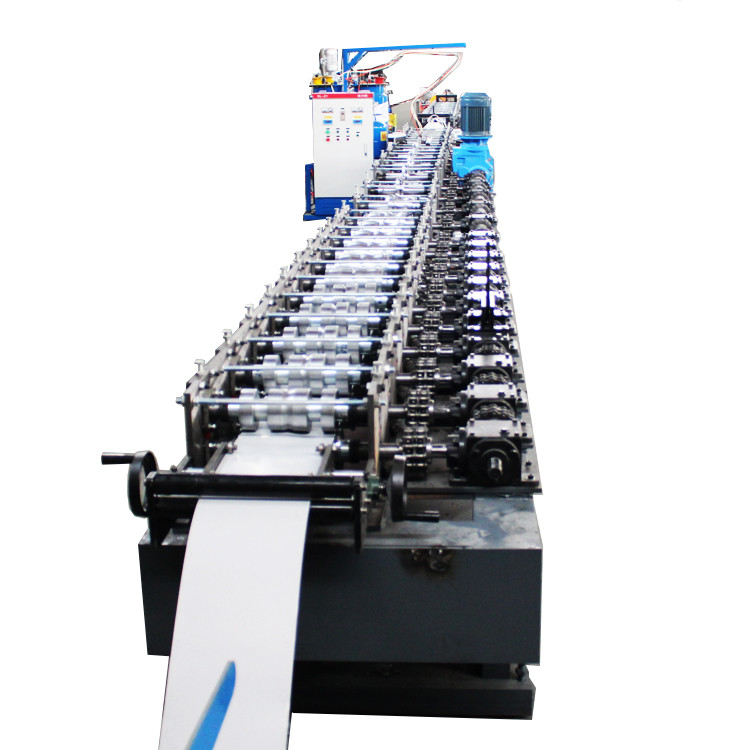

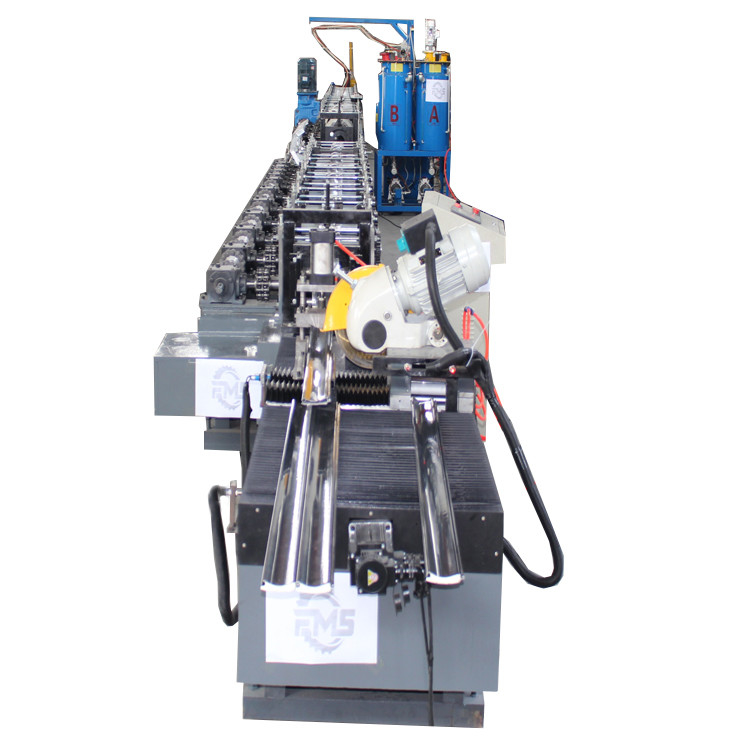

PU Sandwich Shutter Door Roll Forming Machine Making Machine Manufactures Prices

Put the steel coil on the un-coiler----Feeding guide equipment----Roll-forming Machine----Foaming machine ----Adjusting device ----Punching device----Flying saw cutting-----finished products on stacker

This foaming aluminum shutter forming machine integrates cold roll forming technology and PU foaming technology into one, thuscontinuous automation production of foaming roller shutter door is achieved.

PU Sandwich Shutter Door Roll Forming Machine

1. Rolling up and down, the noise is smaller, the work is quieter, which means less damage to the door every day, longer working hours, and more suitable for human care in some crowded areas.

2. PU shutter doors and windows are sound absorbing materials, so once you shake the shutter door, most of the street sound will be absorbed by the foam in the shutter door.

3. Fireproof and energy saving: The foam density is large, which can save area energy and fire. Therefore, it is highly recommended to install the main door and window in a safer and more economical room.

Specification

Warranty of core components	1 Year
Voltage	380V 50Hz
Weight	9000kg
Production Capacity	5-8m/min
Power	22Kw
Dimension(LWH)	2011.2m
Applicable Material	UPVC, Aluminum
Production Capacity	8-15M/Min
Voltage	380V.50HZ.3Phase
Weight	9000 kg
Roll material	45# high grade steel
Cutting blade material	Cr 12 high grade steel
Frame material	300 H-high grade steel
Core Components	Motor, PLC
Roll stations	18 rows
Rolling thinckness	0.3-0.8mm
Dimension(LWH)	20112m

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
