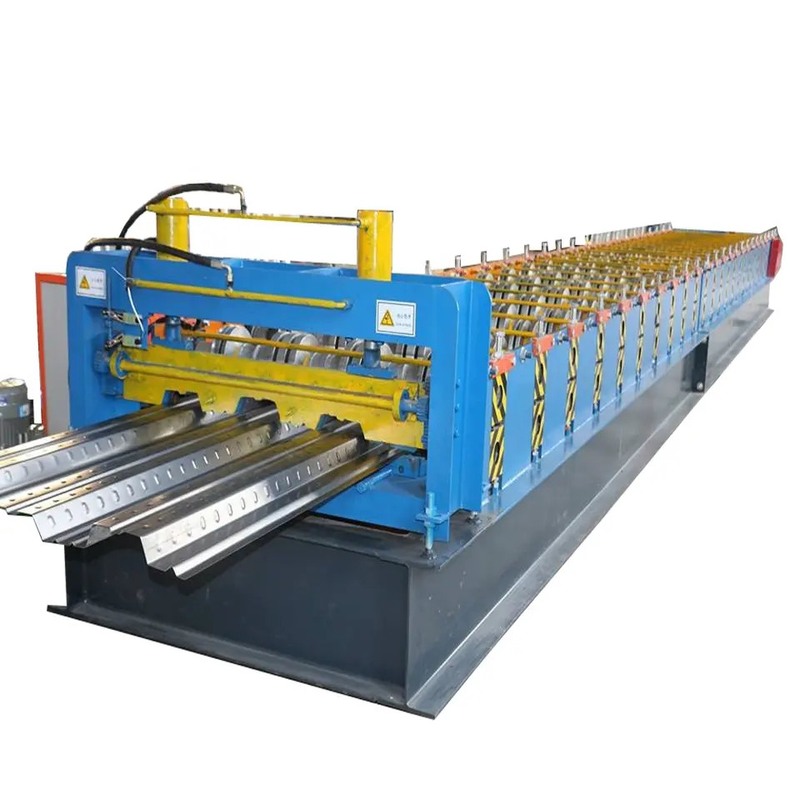

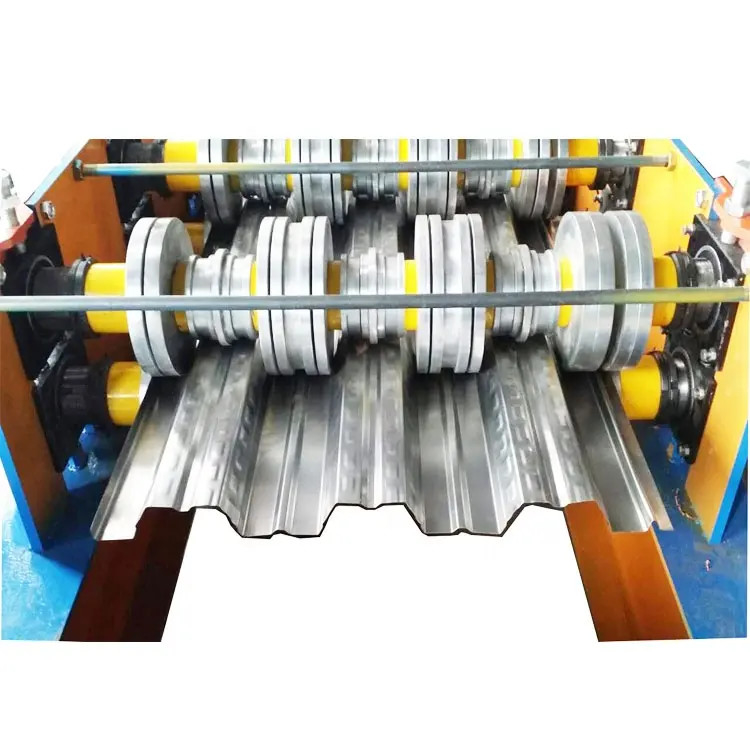

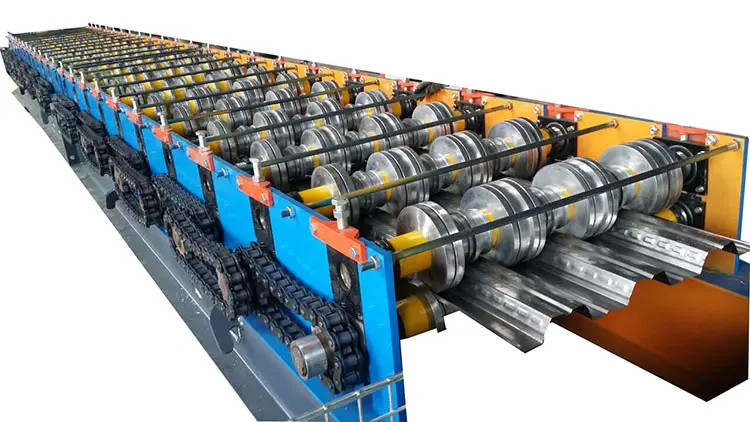

Name: 22KW Motor Power Steel Decking Floor Roll Forming Machine 10-12m/Min
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: عرشه کف
Price: 26,500.00 USD
Availability: InStock

خانه > محصولات > ماشین شکل گیری رول کف >

22KW Motor Power Steel Decking Floor Roll Forming Machine 10-12m/Min

22KW steel deck roll forming machine,22KW floor deck roll forming machine,floor deck roll forming machine 12m/Min

22KW floor deck roll forming machine

floor deck roll forming machine 12m/Min

محل منبع:

سرزمین اصلی چین

نام تجاری:

FMS

گواهی:

ISO CE

شماره مدل:

عرشه کف

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

دستگاه شکل دهی رول عرشه فلزی با قدرت موتور 22 کیلووات سرعت شکل دهی 10-12 متر در دقیقه

برش مواد تیغه:

CR12 خاموش شد

قاب ماشین:

فولاد 400H یا 450H

ماده شفت:

درجه عالی No.45 فورج

وزن:

6.0 تن

ولتاژ:

380 ولت 50Hz 3Phases

ظرفیت تولید:

10-12 متر در دقیقه

ضخامت نورد:

0.8-1.5 میلی متر

ابعاد (L*W*H):

11500*1500*1500 میلی متر

قدرت موتور هیدرولیک:

3kw-7.5kw

برجسته کردن:

22KW steel deck roll forming machine,22KW floor deck roll forming machine,floor deck roll forming machine 12m/Min

22KW floor deck roll forming machine

floor deck roll forming machine 12m/Min

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

40 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

Cellular Composite Roofing Sheet Making Machine 3.0" Width 0.8-2.0MM Thickness

بهترین قیمت رو بدست بیار

ویدئو

13 Rows Roof Tile Roll Forming Machine For Tipo Teja Americana Normal Tile

بهترین قیمت رو بدست بیار

ویدئو

Decking Flooring Board 1.2mm Floor Tile Making Machine

بهترین قیمت رو بدست بیار

ویدئو

45 Steel Deck Roll Forming Machine Cold ±2mm Cutting Tolerance Excellent Performance

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

22KW Motor Power Metal Floor Deck Roll Forming Machine 10-12m/Min Forming Speed

Working flow

Decoiler----feeding----roll forming----pressing----cut to length----output table

Features of Deck Floor Roll Forming Machine:

The metal deck produced by floor decking roll forming line has high strength with big wave length. It adheres well to concrete. Used on high building, it not only saves steel mold plate, but also reduces the weight of storey. With the same bearing capacity, it economized steel and cuts down investment accordingly. We can also supply the customized machines.

Applications of Deck Floor Roll Forming Machine:

The finished products are widely used in floor flat, after make embossing of the sheet, it will increase the strength between the steel and concrete, thereby increasing the floor of the fastness.

Specification

Cutting & Hydraulic type	Cut slide/Double guide pillar
Feeding Thickness	0.8mm -1.5mm
Hydraulic motor power	7.5kw
Effective width	Better as your drawing or from our designer
Cutting drive	Decelerating motor Chain drive gear all by high frequency
Productivity	10-12m/min
Length measurement	Encoder
Roll material	45#steel
Control System	Panasonic/Siemens/Schneider/Delta PLC Colored Touch Screen
Cutter material	Cr12 mould steel heat-treated hardness of HRC=60-62 degrees
Chain Size	1 inch/2 inch
Overall Size	Size of our designer
Backboard Thickness	17mm-200mm
Total Weight	5t-12t
Feeding Material	Better as your drawing or from our designer

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
