Name: Hydraulic Cutting Galvanized Steel Shutter Door Forming Machine 8-20m/Min
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: لت درب
Price: 12000.00 USD
Availability: InStock

خانه > محصولات > دستگاه رول فرمینگ درب کرکره ای >

Hydraulic Cutting Galvanized Steel Shutter Door Forming Machine 8-20m/Min

Hydraulic Cutting Shutter Door Forming Machine,Shutter Door Forming Machine 20m/min,shutter door rolling machine 20m/min

Shutter Door Forming Machine 20m/min

shutter door rolling machine 20m/min

محل منبع:

سرزمین اصلی چین

نام تجاری:

FMS

گواهی:

ISO CE

شماره مدل:

لت درب

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

دستگاه تشکیل درب کرکره ای فولادی گالوانیزه هیدرولیک 3 نوع سوراخ

ولتاژ:

380V/50Hz

ابعاد (L*W*H):

4.5*0.8*1 متر

ظرفیت تولید:

8 تا 20 متر/دقیقه

گارانتی:

18 ماه

ماده غلتکی:

45#فولاد

وزن:

اجزای اصلی:

PLC ، موتور ، یاتاقان ، موتور ، دنده

برجسته کردن:

Hydraulic Cutting Shutter Door Forming Machine,Shutter Door Forming Machine 20m/min,shutter door rolling machine 20m/min

Shutter Door Forming Machine 20m/min

shutter door rolling machine 20m/min

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

20 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

25 مجموعه در هر ماه

محصولات مرتبط

ویدئو

Metal Chain Driving Shutter Door Roll Forming Machine Speed 20-30m/Min

بهترین قیمت رو بدست بیار

ویدئو

Customized High Speed PU Door Roller Shutter Roll Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

3T Shutter Door Roll Forming Machine For 0.8-1.2mm Thickness And 6.5m0.95m1.2m Size

بهترین قیمت رو بدست بیار

ویدئو

45 Steel Roller Material Shutter Door Roll Forming Machine with 7.5KW PLC Control System

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

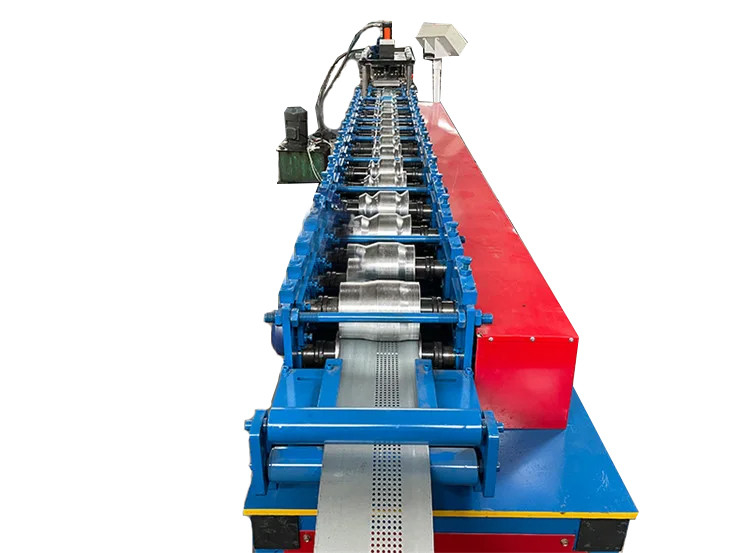

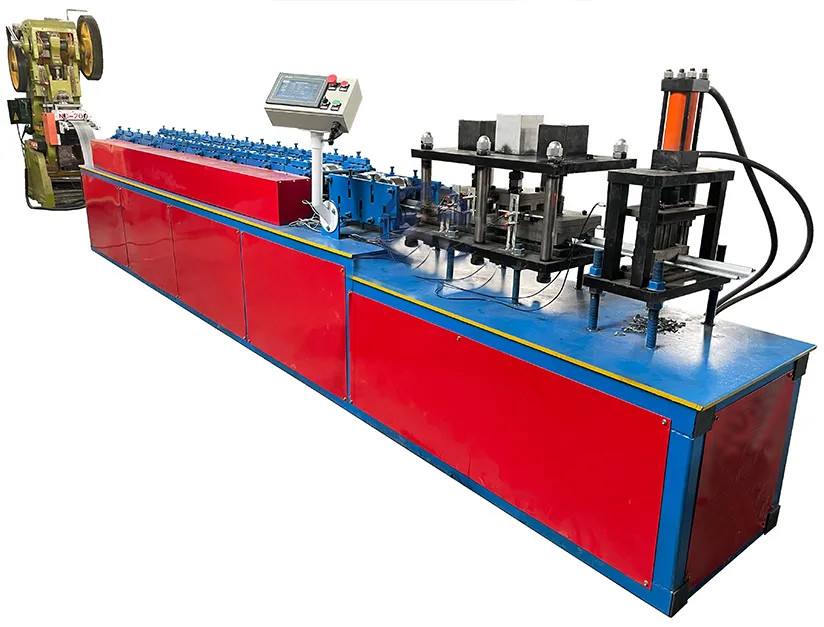

Hydraulic Cutting Galvanized Steel Shutter Door Forming Machine 3 Kinds Of Holes

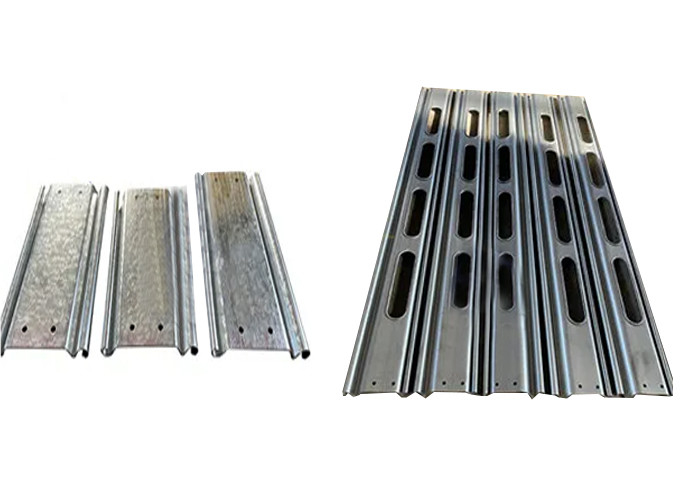

This machine punch 3 kinds of holes:

1st kind of hole is by puncher, hole punching offline

2nd kind of hole is by 3 kind of punching mould, hole punching online for big holes

3rd kind of hole is by cutter punching, cutting and hole punching at same time, for side 2 holes

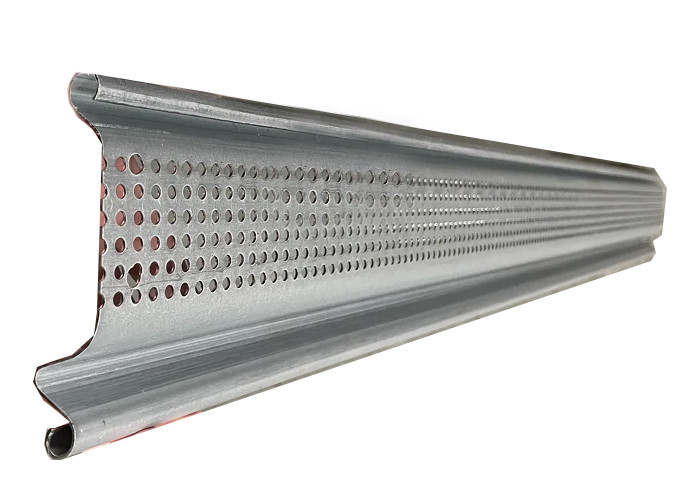

We are the professional shutter door roll forming machine manufacturer in China, we ship shutter door roll forming machine all over the world like India, Thailand, Russia, Algeria, Qatar, Morocco, Saudi Arabia, Oman etc. Common shutter door rolling thickness from 0.7-1.2mm, material use PPGI or GI. Size can customize as customer's need.

Specification

Part details	Item Name	Specification
Material	Raw material	Galvanized steel
Material	Thickness	0.8-2 mm
Machine	Roller station	14
	Shaft diameter	55 mm
	Shaft material	45# steel with 0.05mm chrome
	Roller material hardness 30-40 HRC	Cr 12
	Machine size	About 4.50.81 m
	Machine weight	About 2 ton
	Machine color	As customer' request
	Working speed	8-20 m/min
Cutter	Hardness	50-65 HRC
	Cutting tolerance	± 1 mm
	Material	Cr 12
	Operate	Hydraulic cutting
Power	Driving way	Chain 1 inch
	Main power	4 kw
	Pump power	3 kw
	Voltage	380v/50HZ,3P or customize as customer' request
Control system	PLC brand	Delta made in Twaiwan
	Screen	Touchable screen
	Language	Chinese and English or add language as customer need
Decoiler	Operation	Manual
	Weight capicatity	3 ton
	Price	Free as gift
Receiving table	Operation	Manual
Receiving table	Length	3 m

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
