Name: 840 900 Double Layer IBR Type Roof Cold Roll Forming Machine PLC Control
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: دو لایه
Price: 15000.00 USD
Availability: InStock

خانه > محصولات > دستگاه رول فرمینگ دو لایه >

840 900 Double Layer IBR Type Roof Cold Roll Forming Machine PLC Control

IBR Type Roof Cold Roll Forming Machine,Roof Cold Roll Forming Machine PLC Control,IBR Type Double Layer Forming Machine

Roof Cold Roll Forming Machine PLC Control

IBR Type Double Layer Forming Machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

FMS

گواهی:

ISO CE

شماره مدل:

دو لایه

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

دستگاه رول فرمینگ سقفی دو لایه IBR طرح جدید 840 900

ابعاد (L*W*H):

7.5 متر * 1.6 متر * 1.4 متر

مواد خام:

گالوالوم، گالوانیزه

ظرفیت تولید:

8-15 متر در دقیقه

وزن:

6300 کیلوگرم

ماده غلتکی:

45 # کروم اندود شده

منبع تغذیه:

3 فاز 380 ولت 50 هرتز (قابل تنظیم)

مواد برش ماشین:

CR12

عرض تغذیه:

1200 میلی متر

سیستم کنترل:

کنترل PLC

برجسته کردن:

IBR Type Roof Cold Roll Forming Machine,Roof Cold Roll Forming Machine PLC Control,IBR Type Double Layer Forming Machine

Roof Cold Roll Forming Machine PLC Control

IBR Type Double Layer Forming Machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

20 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

High Speed Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

New Style Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

2025 factory price hot sale Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

2025 New Trapezoidal and glazed Double Layer Roof sheet roofing tile Roll Forming Machine

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

هم اکنون تماس بگیرید

توضیح محصول

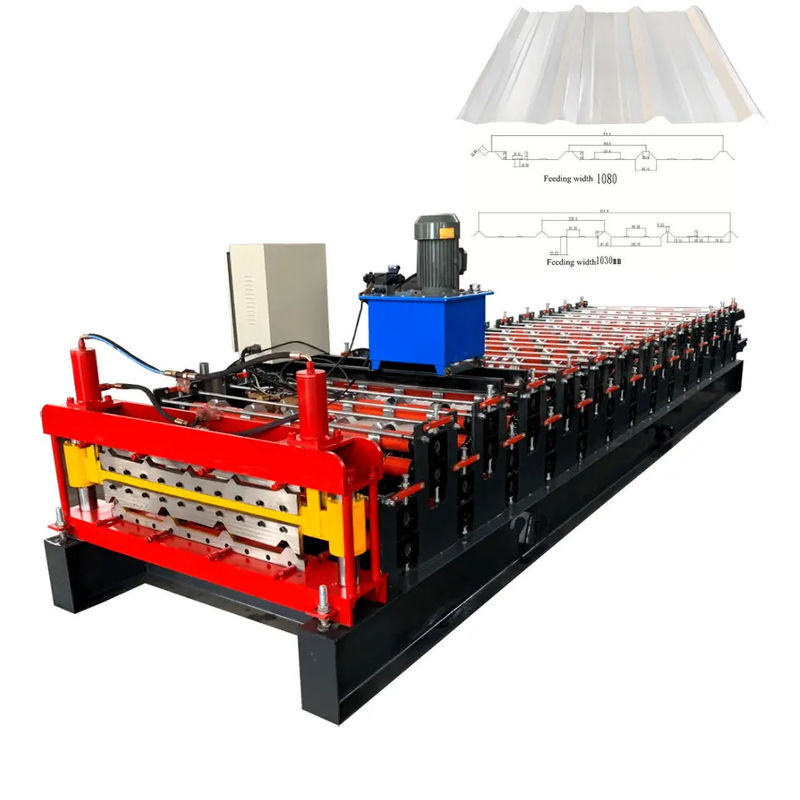

New Design 840 900 Double Layer IBR Type Roof Cold Roll Forming Machine

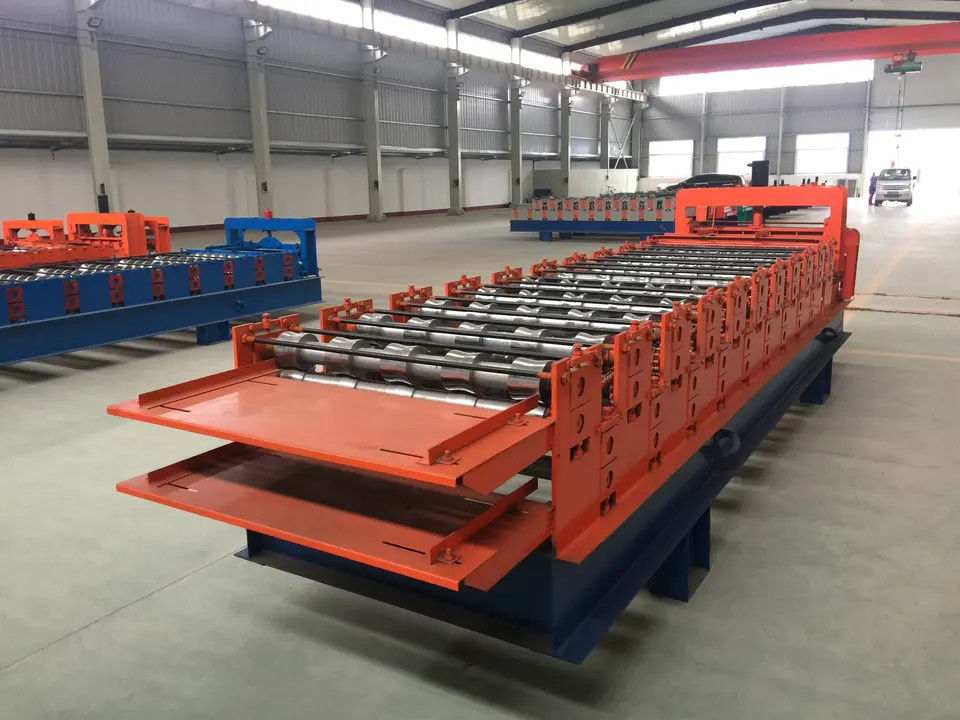

The picture shows the whole process of cold roll forming machine : MOTORIZED UNWINDING --- Feeding guide --- Roll forming --- Leveling --- Cutting --- Run out product stacker

The double deck corrugator was a solution to the problem of limited space in the customers production facility. Two sections produced in a two level over and under configuration gives the opportunity to produce different sections from a single machine.

New Design 840 900 Double Layer IBR Type Roof Cold Roll Forming Machine

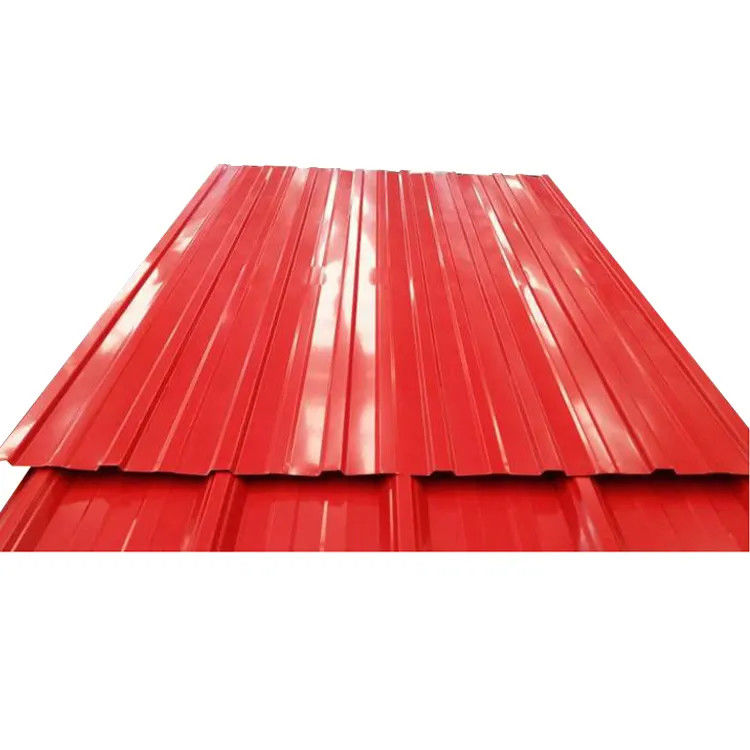

This roll forming machine can form smooth and beautiful metal roofing sheet without any scratch on surface 2.Roll forming process: uncoiler, roll forming, forming step effect, cut to length.
Fully Automatic Control System with PLC.
Easy operation: Set length and quantity on the control panel,machine will auto working
Customized your own roll forming machine, We can design the machine according to your specification and profile drawing.

Specification

Dimensions	5600mm1300mm1500mm
Weight	6300 kg
Main frame material	300H Steel
Thickness of plate in equipment	14mm
Roll forming row number	high layer:9 row (900), under layer: 11 row (840)
Forming shaft material	45# steel quenching treatment
Molding shaft dimension	Diameter of 70
Roll shape material	45# steel with hard chrome plating
Kind of drive	Chain wheel chain drive/hydraulic motor drive
Shaft Dia	inch 0.6
Power	6kw
Main motor power	4kw
Forming speed	8-10 m/min/hydraulic transmission 15 m/min
Material thickness	0.3-0.8mm

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

.

Payment terms

30% in advance as down payment
70% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received. 840 900 Double Layer IBR Type Roof Cold Roll Forming Machine PLC Control 0
