Name: Customizable Trapezoidal Double Layer Cold Roll Forming Machine 15m/Min
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: دو لایه
Price: 15000.00 USD
Availability: InStock

خانه > محصولات > دستگاه رول فرمینگ دو لایه >

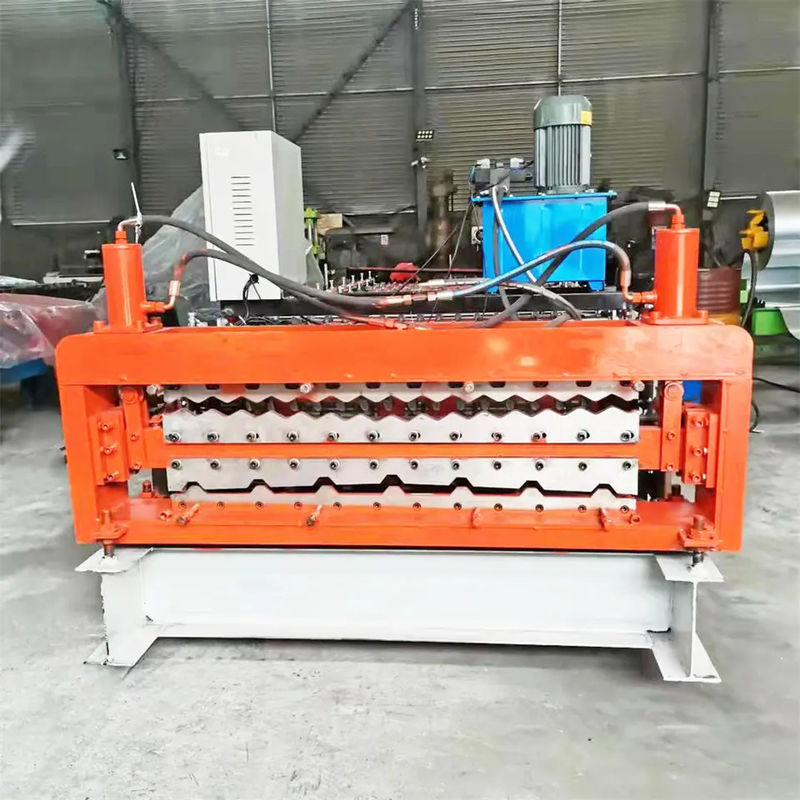

Customizable Trapezoidal Double Layer Cold Roll Forming Machine 15m/Min

Customizable Cold Roll Forming Machine,Customizable Double Layer Roll Forming Machine,Cold Roll Forming Machine 15m/min

Customizable Double Layer Roll Forming Machine

Cold Roll Forming Machine 15m/min

محل منبع:

سرزمین اصلی چین

نام تجاری:

FMS

گواهی:

ISO CE

شماره مدل:

دو لایه

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

دستگاه فرم روم رول سرد دو لایه ذوزنقه ای پانل فولادی سفارشی

ابعاد (L*W*H):

7.5 متر * 1.6 متر * 1.4 متر

مواد خام:

گالوالوم، گالوانیزه

ظرفیت تولید:

15 متر در دقیقه

وزن:

3500 کیلوگرم

ماده غلتکی:

45 # کروم اندود شده

منبع تغذیه:

3 فاز 380 ولت 50 هرتز (قابل تنظیم)

مواد برش ماشین:

CR12

ضخامت صفحه:

0.3-0.8mm

سیستم کنترل:

کنترل PLC

برجسته کردن:

Customizable Cold Roll Forming Machine,Customizable Double Layer Roll Forming Machine,Cold Roll Forming Machine 15m/min

Customizable Double Layer Roll Forming Machine

Cold Roll Forming Machine 15m/min

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

20 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

High Speed Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

New Style Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

2025 factory price hot sale Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

2025 New Trapezoidal and glazed Double Layer Roof sheet roofing tile Roll Forming Machine

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

هم اکنون تماس بگیرید

توضیح محصول

Customized Steel Panel Trapezoidal Double Layer Cold Roll Roofing Form Machine

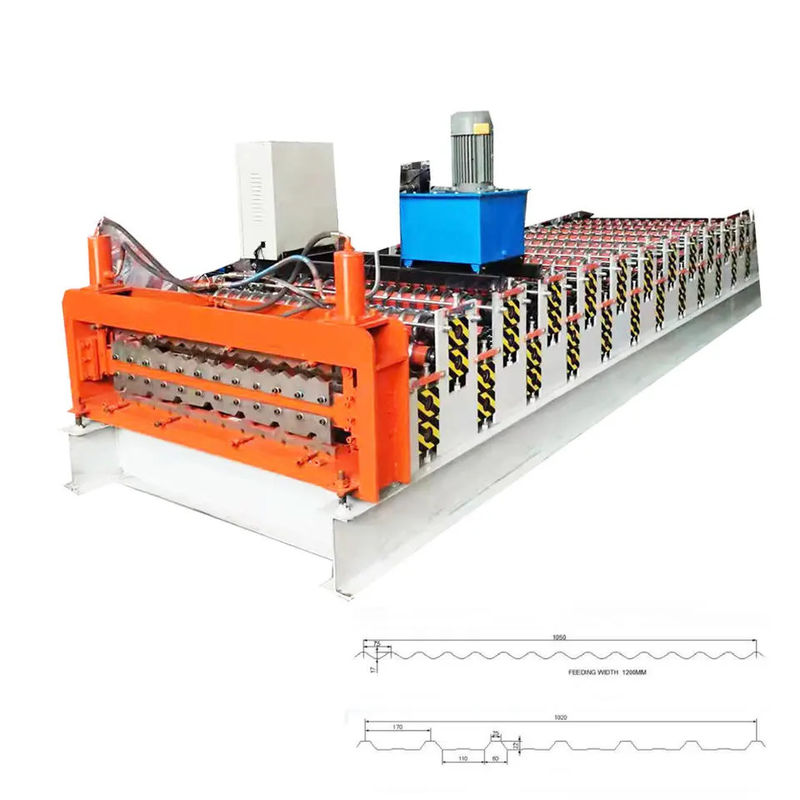

The picture shows the whole process of Customized Steel Panel Trapezoidal Double Layer Cold Roll Roofing Form Machine : MOCustomized Steel Panel Trapezoidal Double Layer Cold Roll Roofing Form MachineTORIZED UNWINDING --- Feeding guide --- Roll forming --- Leveling --- Cutting --- Run out product stacker

The double deck corrugator was a solution to the problem of limited space in the customers production facility. Two sections produced in a two level over and under configuration gives the opportunity to produce different sections from a single machine.

New Design 840 900 Double Layer IBR Type Roof Cold Roll Forming Machine

This roll forming machine can form smooth and beautiful metal roofing sheet without any scratch on surface 2.Roll forming process: uncoiler, roll forming, forming step effect, cut to length.
Fully Automatic Control System with PLC.
Easy operation: Set length and quantity on the control panel,machine will auto working
Customized your own roll forming machine, We can design the machine according to your specification and profile drawing.

Specification

No	Item	Data
1	Raw material width	1000-1200 mm
2	Sheet effective width	750-1000 mm
3	Raw material	Color steel sheet or galvanized steel sheet
4	Material thickness	0.3-0.8 mm or customized
5	Forming roller material	45# steel plated with chrome
6	Main motor power	3 KW 4 KW 5.5 KW(according to type)
7	Shaft diameter	70mm
8	Control system	PLC control

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

.

Payment terms

30% in advance as down payment
70% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received. Customizable Trapezoidal Double Layer Cold Roll Forming Machine 15m/Min 0
