Name: ISO 4kw Double Layer Roll Forming Machine Corrugated Roofing & 5 Rib Roofing
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: دو لایه
Price: 15000.00 USD
Availability: InStock

خانه > محصولات > دستگاه رول فرمینگ دو لایه >

ISO 4kw Double Layer Roll Forming Machine Corrugated Roofing & 5 Rib Roofing

4kw Double Layer Roll Forming Machine,4kw Roofing sheet Roll Forming Machine,ISO Double Layer Roll Forming Machine

4kw Roofing sheet Roll Forming Machine

ISO Double Layer Roll Forming Machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

FMS

گواهی:

ISO CE

شماره مدل:

دو لایه

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

دستگاه رول فرمینگ دو لایه سقف راه راه و سقف 5 دنده

ابعاد (L*W*H):

560*150*160 متر

مواد خام:

گالوالوم، گالوانیزه

سرعت کار:

8-15 متر در دقیقه

ضخامت نورد:

0.3-0.8mm

ماده شفت:

45# فولاد

منبع تغذیه:

380 ولت 50 هرتز

مشخصات:

طبق درخواست مشتری

عرض تغذیه:

1220 میلی متر

قدرت اصلی:

4 کیلو وات

برجسته کردن:

4kw Double Layer Roll Forming Machine,4kw Roofing sheet Roll Forming Machine,ISO Double Layer Roll Forming Machine

4kw Roofing sheet Roll Forming Machine

ISO Double Layer Roll Forming Machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

20 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

High Speed Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

New Style Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

2025 factory price hot sale Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

2025 New Trapezoidal and glazed Double Layer Roof sheet roofing tile Roll Forming Machine

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

هم اکنون تماس بگیرید

توضیح محصول

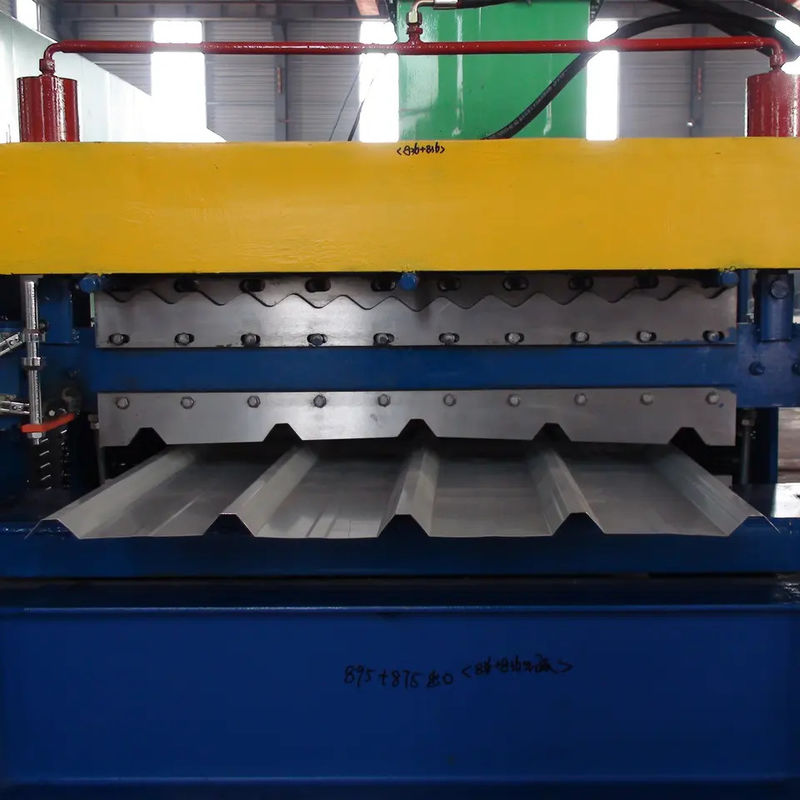

Double Layer Roll Forming Machine Corrugated Roofing & 5 Rib Roofing

Double Layer Roll Forming Machine Corrugated Roofing & 5 Rib Roofing .Different roof panel forming machines can produce different shapes of steel roof wall sheets according to the client's profile drawings and requirements. The steel roof, wall sheets are new building materials with various thickness and colors. The finished products are used as the roof and walls of gymnasiums, airports, theatres, factories, warehouses, garages, exhibition centers etc.

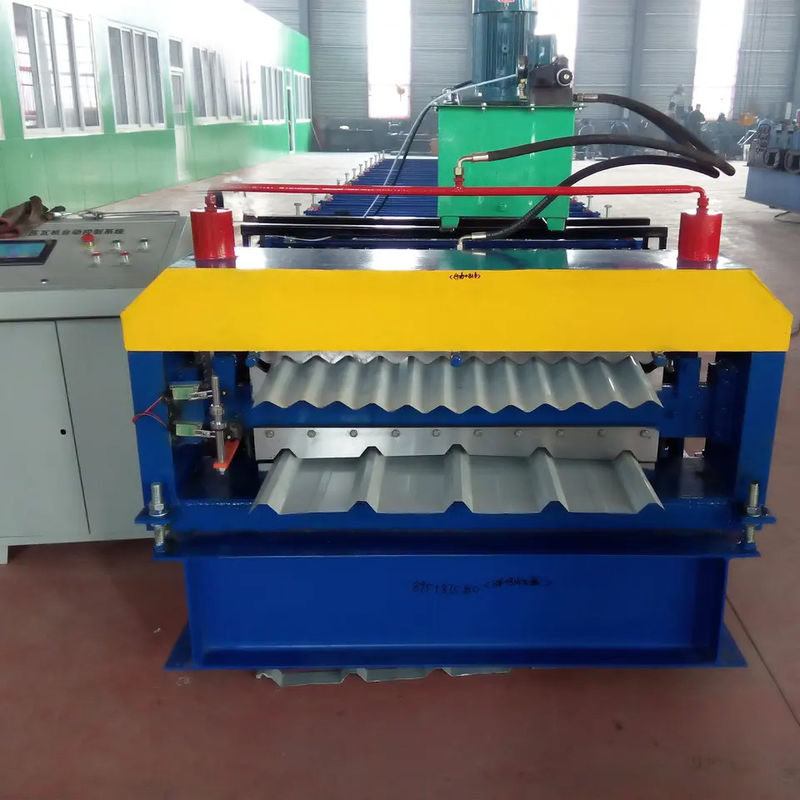

The complete machine includes the uncoiler, main forming machine, computer controlling system and run out tables

Specification

1	Suitable to process	Color steel plate
2	Width of the plate	914mm/1000mm/1200mm/1220mm/1250mm
3	Thickness of the plate	0.3-0.8mm
4	De-coiler	Manual one, can load 5 tons raw material
5	Rollers for forming	16 rows
6	Diameter of the roller	80mm
7	Rolling material	Carbon Steel 45#
8	Main motor power	5.5kw
9	Material of the cutting blade	Cr12 mov
10	Hydraulic cutting power	4kw
11	Processing precision	Within 1.00mm
12	Control system	Delta PLC control
13	Side panel of machine	16mm
14	Main structure of the machine	350 H steel
15	Weight	About 3T
16	Dimensions	5.61.21.5m
17	Voltage	380V 50Hz 3phases(changeable as needs)
18	Certificate	CE/ISO
19	Custom	According to customer's requirements

Advantage

The metal system is accurate and solid, and will not move over time or with changes in temperature.
There is a wide range of stud widths from 50mm to 146mm to meet varying requirements.
It is a fast and clean system to erect that allows services to pass through easily.
All sections fit together easily and door frames are formed very simply.

Payment terms

30% in advance as down payment

70% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
