Name: Color Sheet Double Layer Roll Forming Machine Deck Roll Former Energy Efficiency
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: دو لایه
Price: 15000.00 USD
Availability: InStock

خانه > محصولات > دستگاه رول فرمینگ دو لایه >

Color Sheet Double Layer Roll Forming Machine Deck Roll Former Energy Efficiency

Double Layer Roll Forming Machine Energy Efficiency,Deck Roll Former Energy Efficiency,Color Sheet Deck Roll Former

Deck Roll Former Energy Efficiency

Color Sheet Deck Roll Former

محل منبع:

سرزمین اصلی چین

نام تجاری:

FMS

گواهی:

ISO CE

شماره مدل:

دو لایه

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

ورق رنگ دولایه رول فرمینگ دستگاه دو عرشه رول تشکیل تجهیزات

ابعاد (L*W*H):

10500*2000*1900 متر

مواد خام:

گالوالوم، گالوانیزه

ظرفیت تولید:

8-15 متر در دقیقه

ضخامت نورد:

0.3-0.8mm

ماده شفت:

45# درمان فورج فولاد

ولتاژ:

380 ولت 50Hz 3p

عرض تغذیه:

1250 میلی متر، 1250 میلی متر

برش مواد تیغه:

Cr 12 فولاد درجه یک

وزن:

5800 کیلوگرم

برجسته کردن:

Double Layer Roll Forming Machine Energy Efficiency,Deck Roll Former Energy Efficiency,Color Sheet Deck Roll Former

Deck Roll Former Energy Efficiency

Color Sheet Deck Roll Former

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

20 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

High Speed Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

New Style Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

2025 factory price hot sale Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

2025 New Trapezoidal and glazed Double Layer Roof sheet roofing tile Roll Forming Machine

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

هم اکنون تماس بگیرید

توضیح محصول

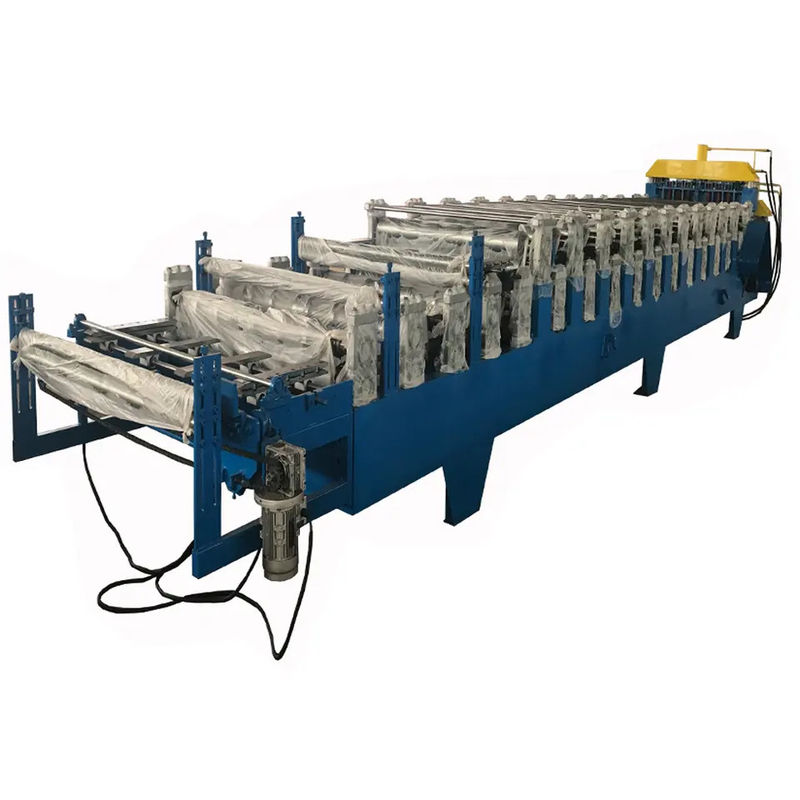

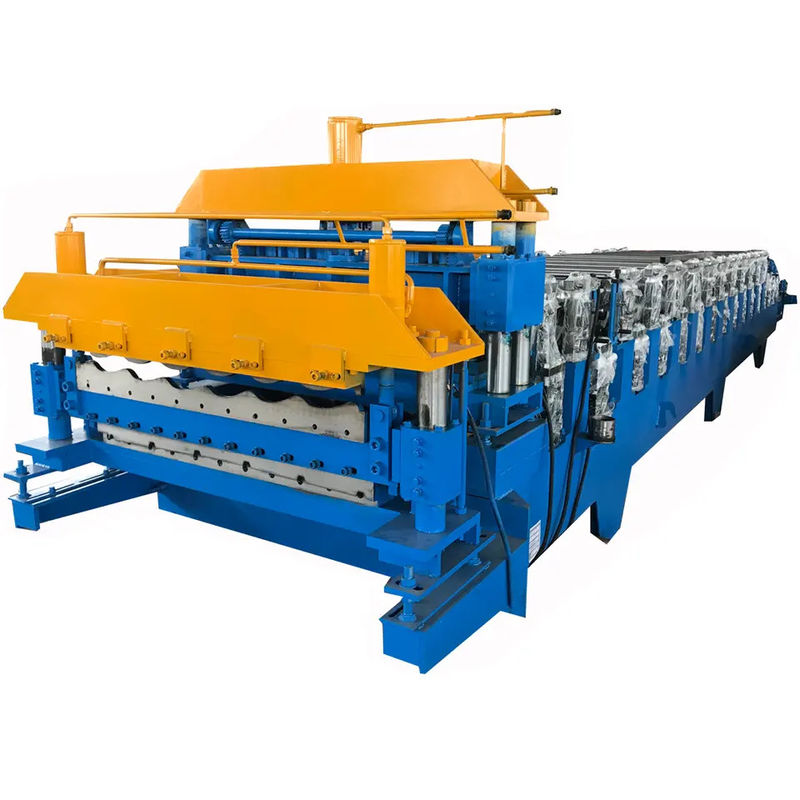

Color Sheet Double Layer Roll Forming Machine Double Deck Roll Forming Equipment

This kind of machine make two types of tile together perfectly, it has reasonable structure, beautiful appearance, with advantage of saving space, easy operate and especially welcomed by the customer with limit area or site.

1) This double layer oof sheet roll forming machine adopts coil production material to form 2 different roofing profiles through 5 Ton manual decoiler, pinch feeding, main roll forming part, Hydraulic cutting, hydraulic station, PLC control system, and Non-power type support table.

2) The whole machine adopt PLC control, AC speed control by frequency inverter technology, to realize continuous auto production, which is the best desired machinery in steel structure and metal cold roll forming machinery industry.

Specification

Roll forming machine name	Color Sheet Double Layer Roll Forming Machine Double Deck Roll Forming Equipment
Brand of plc	Delta
Material of rollers	High grade 45# steel with 0.05mm chormed
Material of shafts	Soild high grade 45# steel
Diameter of shaft	75mm
Material of blade	Cr12 ateel
Transmission	Chain
Motor voltage	380V 50Hz 3P or customized
Motor kw	5.5kw
Cutter system	Automatic Hydraulic cutter system
Hydraulic pump kw	7.5kw
Machine base frame	Steel channel welding with four supported legs
Raw material	ppgi
Thickness of raw material	0.3-0.8mm

Advantage

The metal system is accurate and solid, and will not move over time or with changes in temperature.
There is a wide range of stud widths from 50mm to 146mm to meet varying requirements.
It is a fast and clean system to erect that allows services to pass through easily.
All sections fit together easily and door frames are formed very simply.

Payment terms

30% in advance as down payment

70% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
