Metal Siding Rolling Forming Standing Seam Selflock Roll Forming Machine 3kw

Selflock Roll Forming Machine,Metal Roll Forming Machine3kw,Tile Roll Forming Machine 3kw

Metal Roll Forming Machine3kw

Tile Roll Forming Machine 3kw

محل منبع:

چین

نام تجاری:

cangzhou fms

گواهی:

CE,ISO

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

دستگاه سایدینگ فلزی Rolling Forming Standing Seam Selflock Roll Forming Machine

ظرفیت تولید:

10-18 متر در دقیقه

ولتاژ:

380 ولت 50Hz 3Phases

وزن:

5800 کیلوگرم

ضخامت نورد:

0.3-0.8 میلی متر

ابعاد (L*W*H):

4500*500*1300 میلی متر

ماده غلتکی:

45# فولاد آهنگری با صفحه کروم

قدرت موتور:

3 کیلو وات

مواد خام:

GI,PPGI,PPGL

عرض تغذیه::

1250 میلی متر

برجسته کردن:

Selflock Roll Forming Machine,Metal Roll Forming Machine3kw,Tile Roll Forming Machine 3kw

Metal Roll Forming Machine3kw

Tile Roll Forming Machine 3kw

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

دستگاه اصلی برهنه است، جعبه کنترل کامپیوتر توسط پلاستیک بسته بندی شده است.

زمان تحویل

30 روز

شرایط پرداخت

T/T ، Western Union

قابلیت ارائه

30 مجموعه در هر ماه

محصولات مرتبط

6m Automatic Stacker for Roof Sheet Roll Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

the factory price for 0.3-0.8mm thickness Glazed Roof sheet forming machine

بهترین قیمت رو بدست بیار

ویدئو

2025 New Design for Glazed Roof Tile Roof Sheet Roll Forming Machine With 18 Rows

بهترین قیمت رو بدست بیار

ویدئو

4meter/Min Glazed Tile Roll Forming Machine With 18 Rows

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

هم اکنون تماس بگیرید

توضیح محصول

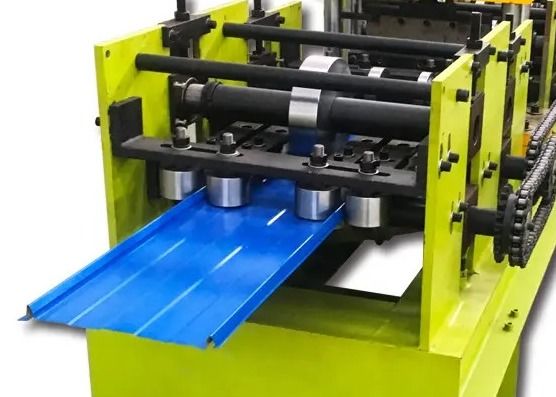

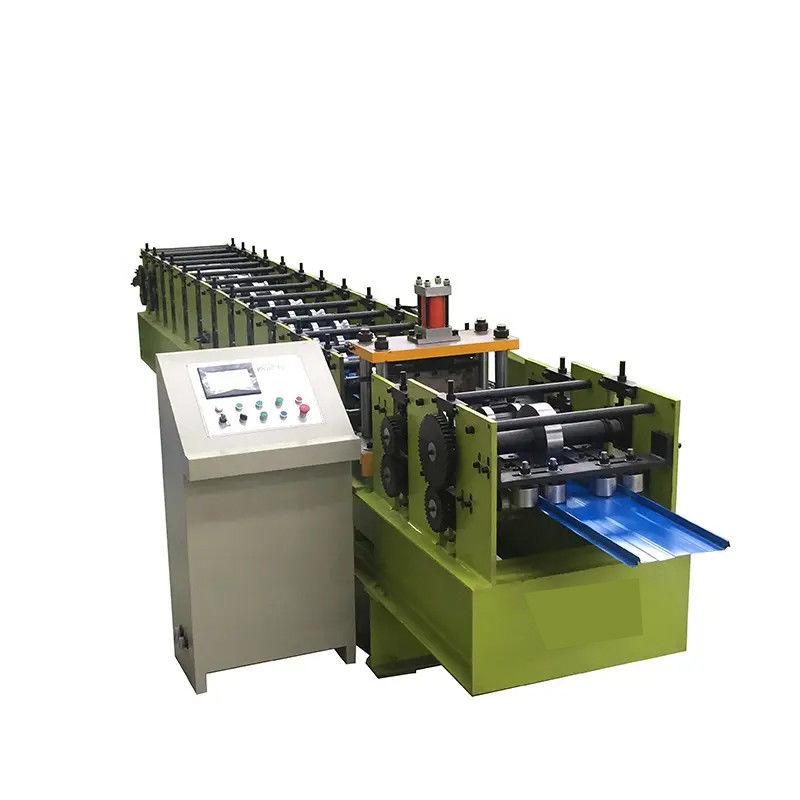

Metal Siding Machine Rolling Forming Standing Seam Selflock Roll Forming Machine

Self Lock Standing Seam Roll Forming Machine Portable Snap Clip Lock is widely used, because it’s impossible for the water to get under the connected roofing panels, thanks to lock’s special shape.

After installation on the roof the panels are closed using special double standing seam closing tools (manual tool for closing seam lock or electric seaming machine for closing double standing seams).

standing seam machine can be easily adjusted for various width of metal roofing panels.

Operator can change the width of the panels with just a single turning handle at one side of the machine. This is a proven technical convenience that allows operator to use his working time more effectively.

Specification

machine name	Metal Siding Machine Rolling Forming Standing Seam Selflock Roll Forming Machine
Suitable to process	Color steel plate, galvanized sheet,aluminum coils and etc.
Roller station	12 rows
Thickness of feeding material	0.3-0.8mm
Productivity	10-20m/min
Rollers' material	45# steel with chrome treatment on surface
Diameter of shaft	70mm
Weight	About 3.0 T
Size	45005001300mm
Voltage	380V 50Hz 3Phase
Main motor power	4 kw
Hydraulic cutting power	4kw

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
