Trapezoidal Roof Tile Roll Forming Machine With 18 Stations Simple Structure No Pollution

18 Stations Roof Tile Roll Forming Machine,18 Stations Roof Tile Roll Forming Machine,Roof sheet Roll Forming Mahcine No Pollution

18 Stations Roof Tile Roll Forming Machine

Roof sheet Roll Forming Mahcine No Pollution

محل منبع:

چین

نام تجاری:

FMS

گواهی:

CE,ISO

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

رول تایل سقفی ذوزنقه ای شکل مهسین با 18 ایستگاه ساختار ساده بدون آلودگی

استفاده:

سقف، دیوار

ماده مناسب:

PPGI PPGL GI GL

وزن:

4500 کیلوگرم

سرعت:

8 تا 20 متر/دقیقه

ماده غلتکی:

380V 50HZ 3P یا سفارشی کردن به عنوان مشتری

ضخامت نورد:

0.3-0.8mm

ابعاد (L*W*H):

6*1.5*1.3 متر

غلتک:

45# فولاد به عنوان نیاز مشتری

عرض سیم پیچ قبل از نورد:

900 میلی متر، 915 میلی متر، 1000 میلی متر، 1200 میلی متر، 1250 میلی متر

برجسته کردن:

18 Stations Roof Tile Roll Forming Machine,18 Stations Roof Tile Roll Forming Machine,Roof sheet Roll Forming Mahcine No Pollution

18 Stations Roof Tile Roll Forming Machine

Roof sheet Roll Forming Mahcine No Pollution

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

دستگاه اصلی برهنه است، جعبه کنترل کامپیوتر توسط پلاستیک بسته بندی شده است.

زمان تحویل

30 روز

شرایط پرداخت

T/T ، Western Union

قابلیت ارائه

30 مجموعه در هر ماه

محصولات مرتبط

6m Automatic Stacker for Roof Sheet Roll Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

the factory price for 0.3-0.8mm thickness Glazed Roof sheet forming machine

بهترین قیمت رو بدست بیار

ویدئو

2025 New Design for Glazed Roof Tile Roof Sheet Roll Forming Machine With 18 Rows

بهترین قیمت رو بدست بیار

ویدئو

4meter/Min Glazed Tile Roll Forming Machine With 18 Rows

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

هم اکنون تماس بگیرید

توضیح محصول

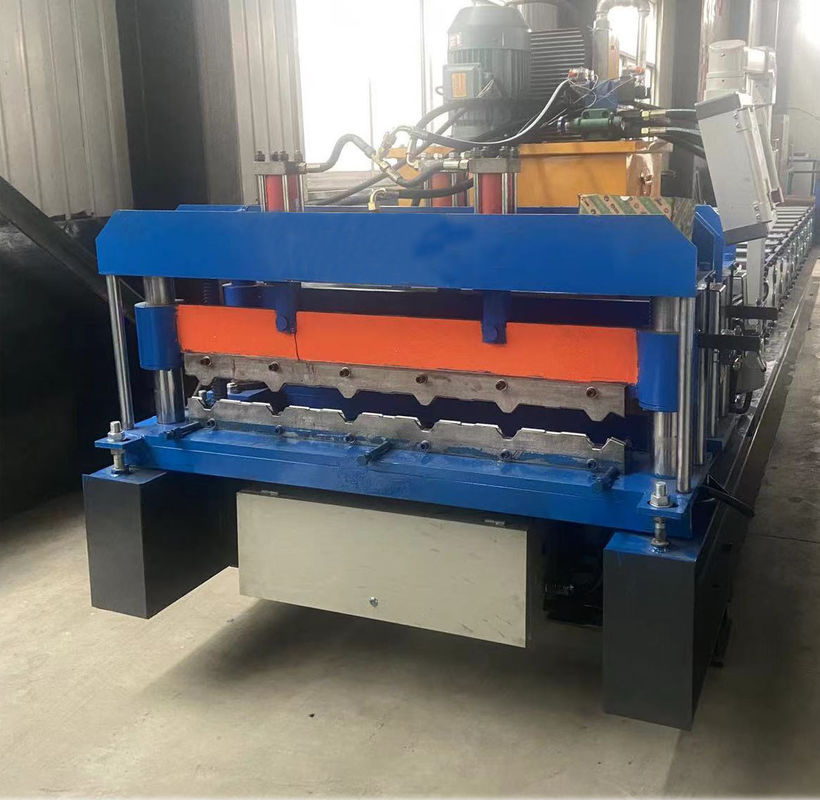

Trapezoidal Roof Tile Roll Forming Mahcine With 18 Stations Simple Structure No Pollution

Product Advantage

(1) The color steel plate equipment adopts high-level automatic control software to realize production information management.
(2) The entire unit automation control system uses a highly integrated network to make the automation system perform better.
(3) The color steel tile pressing machine also has the advantages of operation, maintenance, maintenance, mechanical debugging, and easy mold replacement.

Brief Introduction

Roof roll forming machines has different types .Trapezoid Roof Tile Roll Forming Machine 5 Ribs High Capacity Energy Saving widely used in many kinds of industrial factory, civilian buildings, and Roof board for attached part product.It has advantage of pretty appearance, durable using and so on.

The Roof tiles made by oursingle layer roofing roll forming machine for roof panel have beautiful appearance and bright color.They are widely used in gardens, factories, resorts, hotels, exhibition halls, vacationlands,ancient architectures and modern villas

Specification

Part details	Item Name	Specification
Material	Raw material	Galvanized steel or PPGI
Material	Thickness	0.3-0.8 mm
Machine	Roller station	13
	Shaft diameter	70 mm
	Shaft material	45# steel with 0.05mm chrome
	Roller material hardness 30-40 HRC	45# steel with 0.05mm chrome
	Machine size	About 6.2×1.5×1.3 m
	Machine weight	About 4.5 KG
	Machine color	As customer' request
	Working speed	8-20 m/min
Cutter	Hardness	50-65 HRC
	Cutting tolerance	± 1 mm
	Material	Cr 12
	Operate	Hydraulic cutting
Power	Driving way	Chain 1 inch
	Main power	4 kw
	Pump power	3 kw
	Voltage	380v/50HZ,3P or customize as customer' request
Control system	PLC brand	Delta made in Twaiwan
	Screen	Touchable screen
	Language	Chinese and English or add language as customer need
Decoiler	Weight capicatity	5 ton

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
