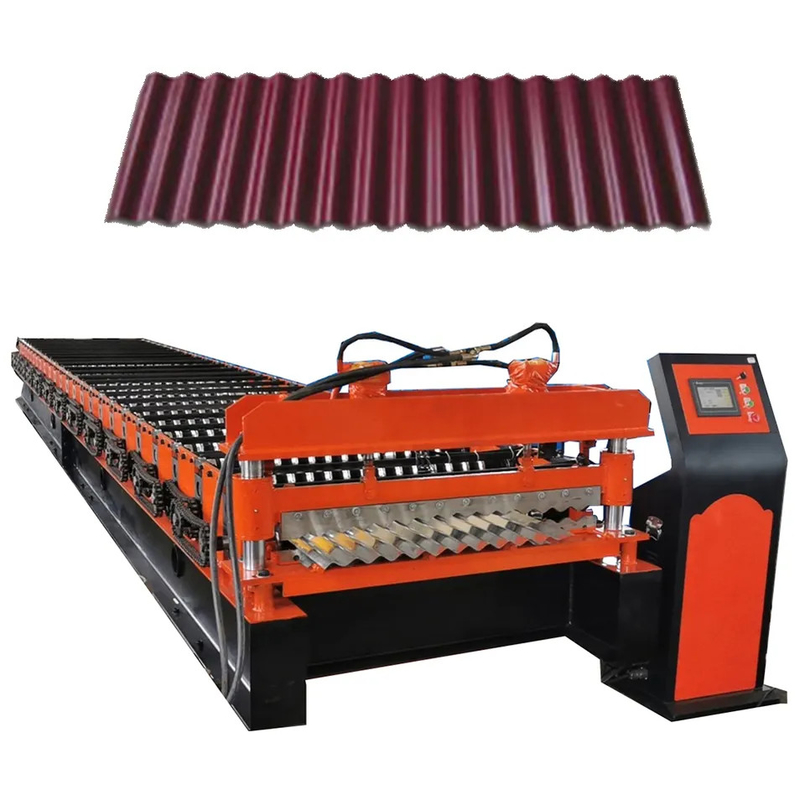

Name: 8-20m/Min Color Steel Corrugated Roll Forming Machine Roofing Iron Sheet Making Machine
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: راه راه
Price: 16,000.00 USD
Availability: InStock

خانه > محصولات > دستگاه رول شکل دهی کاشی سقف >

8-20m/Min Color Steel Corrugated Roll Forming Machine Roofing Iron Sheet Making Machine

20m/Min Corrugated Roll Forming Machine,Color Steel Corrugated Roll Forming Machine,20m/Min Iron Sheet Making Machine

Color Steel Corrugated Roll Forming Machine

20m/Min Iron Sheet Making Machine

محل منبع:

چین

نام تجاری:

cangzhou fms

گواهی:

CE,ISO

شماره مدل:

راه راه

با ما تماس بگیرید

درخواست قیمت

8-20m/Min Color Steel Corrugated Roll Forming Machine Roofing Iron Sheet Making Machine

جزئیات محصول

نام محصول:

رنگ فولاد راه راه رول ماشین آلات ساخت سقف ورق آهن راه راه

نوع کاشی:

فولاد گالوانیزه یا PPGI

ظرفیت تولید:

8 تا 20 متر/دقیقه

وزن:

4500 کیلوگرم

ماده غلتکی:

380 ولت 3 فاز 50 هرتز

عرض تغذیه:

0.3-0.8mm

عرض سیم پیچ قبل از نورد:

1200 میلی متر، 1220 میلی متر، 1250 میلی متر

اندازه ظاهر:

6*1.5*1.3 متر

ماده غلتکی:

فولاد 45# با کروم 0.05mm

برش:

برش هیدرولیکی

برجسته کردن:

20m/Min Corrugated Roll Forming Machine,Color Steel Corrugated Roll Forming Machine,20m/Min Iron Sheet Making Machine

Color Steel Corrugated Roll Forming Machine

20m/Min Iron Sheet Making Machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

دستگاه اصلی برهنه است، جعبه کنترل کامپیوتر توسط پلاستیک بسته بندی شده است.

زمان تحویل

30 روز

شرایط پرداخت

T/T ، Western Union

قابلیت ارائه

30 مجموعه در هر ماه

محصولات مرتبط

6m Automatic Stacker for Roof Sheet Roll Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

the factory price for 0.3-0.8mm thickness Glazed Roof sheet forming machine

بهترین قیمت رو بدست بیار

ویدئو

2025 New Design for Glazed Roof Tile Roof Sheet Roll Forming Machine With 18 Rows

بهترین قیمت رو بدست بیار

ویدئو

4meter/Min Glazed Tile Roll Forming Machine With 18 Rows

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

Color Steel Corrugated Roll Forming Machine Roofing Iron Sheet Corrugated Making Machine

1064 Corrugated roll forming machine | corrugated roofing sheet machine | corrugated machine | 1064 corrugated roofing sheet machine

Corrugated roofing sheet roll forming machine popular sell in many countries

When use 1250mm width coil, after rolling product width is 1064mm

When use 1200mm width coil, after rolling product width is 988mm

When use 1000mm width coil, after rolling product width is 836mm

4 types make in one machine

Material common is PPGI material, material thickness common between 0.3-0.8 mm.

Specification

NO.	Item	Specification
Material	Raw material	Galvanized steel or PPGI
Material	Thickness	0.3-0.8 mm
Machine	Roller station	13 or depend on customer' drawing
	Shaft diameter	75 mm
	Solid shaft material	High grade 45# steel with Cr12 mov coated, quenching & tempering & treatment
	Roller material hardness 30-40 HRC	Cr12
	Machine size	About 61.51.3 m
	Machine weight	About 5 tons
	Machine color	As customer need
	Working speed	8-20 m/min
Cutter	Hardness	50-65 HRC
	Cutting tolerance	± 1mm
	Material	Cr12
	Operate	Hydraulic cutting
Power	Driving way	Chain 1 inch
	Main motor	4 KW
	Pump motor for cutter	3 KW
	Voltage	380V/50HZ, 3P or Customized as customer' request
Control system	PLC brand	Delta made in Taiwan
	Screen	Touchable screen
	Language	Chinese and English or add customer need language
Decoiler	Operation	Manual
	Weight capacity	5 Tons
	Price	Free as gift
Receive table	Operation	Manual
Receive table	Length	3 m

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for 12 months after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% TT in advance

60% TT before the shipment and after inspection

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 20 days after the down payment is received.
