Portable 1000mm PBR roll former Ibr 686 High Speed Roof Tile Making Machine

1000mm PBR roll former,Ibr 686 Roof Tile Making Machine,1000mm Roof Tile Making Machine

Ibr 686 Roof Tile Making Machine

1000mm Roof Tile Making Machine

محل منبع:

چین

نام تجاری:

FMS

گواهی:

CE,ISO

با ما تماس بگیرید

درخواست قیمت

Portable 1000mm PBR roll former Ibr 686 High Speed Roof Tile Making Machine

جزئیات محصول

نام محصول:

دستگاه رول فرمینگ پانل PBR قابل حمل Ibr 686 دستگاه کاشی سازی سقف با سرعت بالا

استفاده:

سقف، دیوار

ماده مناسب:

PPGI PPGL GI GL

وزن:

3000 کیلوگرم

سرعت:

8-12 متر در دقیقه

ماده غلتکی:

380V 50HZ 3P یا سفارشی کردن به عنوان مشتری

ضخامت نورد:

0.3mm -0.8mm

ابعاد (L*W*H):

6*1.5*1.3 متر

غلتک:

45# فولاد به عنوان نیاز مشتری

عرض مواد خام:

1000 میلی متر

برجسته کردن:

1000mm PBR roll former,Ibr 686 Roof Tile Making Machine,1000mm Roof Tile Making Machine

Ibr 686 Roof Tile Making Machine

1000mm Roof Tile Making Machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

دستگاه اصلی برهنه است، جعبه کنترل کامپیوتر توسط پلاستیک بسته بندی شده است.

زمان تحویل

30 روز

شرایط پرداخت

T/T ، Western Union

قابلیت ارائه

30 مجموعه در هر ماه

محصولات مرتبط

6m Automatic Stacker for Roof Sheet Roll Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

the factory price for 0.3-0.8mm thickness Glazed Roof sheet forming machine

بهترین قیمت رو بدست بیار

ویدئو

2025 New Design for Glazed Roof Tile Roof Sheet Roll Forming Machine With 18 Rows

بهترین قیمت رو بدست بیار

ویدئو

4meter/Min Glazed Tile Roll Forming Machine With 18 Rows

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

هم اکنون تماس بگیرید

توضیح محصول

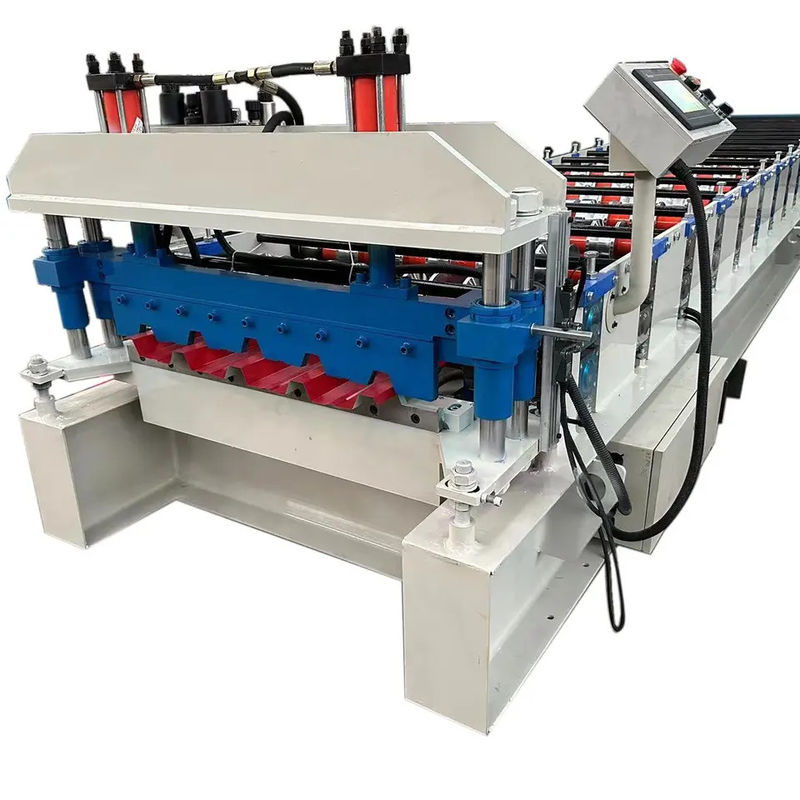

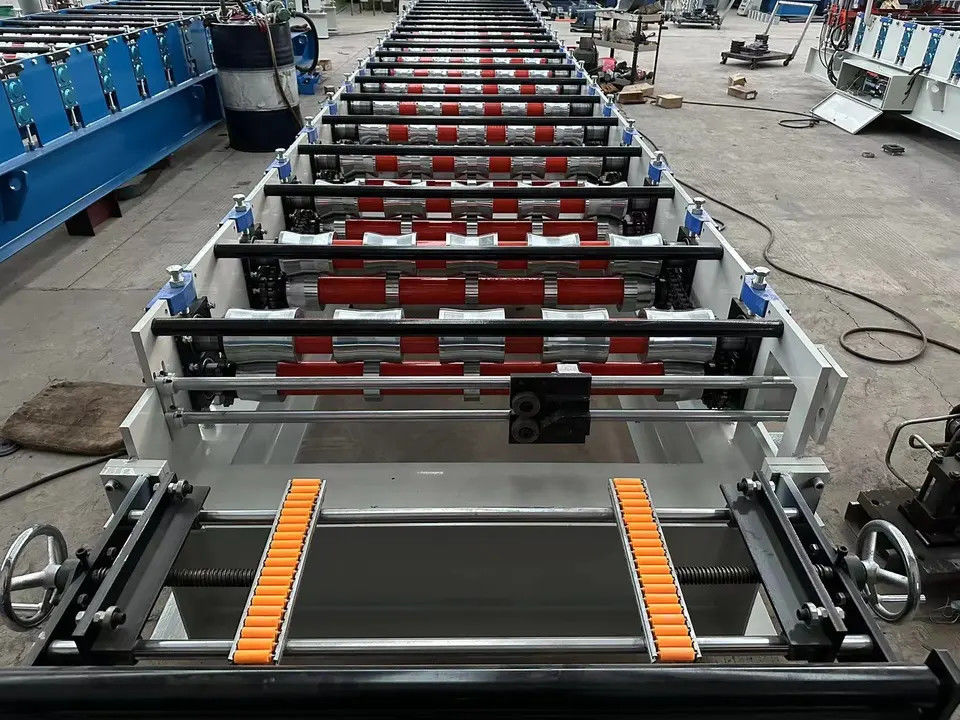

Portable PBR Panel Roll Forming Machine Ibr 686 High Speed Roof Tile Making Machine

Portable PBR Panel Roll Forming Machine Ibr 686 High Speed Roof Tile Making Machine process for work:

decoiler→feeding→roll forming→measuring length→cutting to length→product to stand

The Roll Forming Machine is composed of feeding material , forming, and post-forming cutting. The color plate produced has a flat and beautiful appearance, no any scratch on surface of sheets . It is widely used in industrial and civil buildings, such as factories, warehouses, gymnasiums, exhibition halls, theaters, etc. House surfaces and walls.

Specification

No	Item	Data
1	Coil Width	according to drawings
2	Diameter of shaft	70mm
3	Forming Speed	8-12meters/min
4	Middle plate	16mm
5	Material of shaft	45#steel with tempering
6	forming thickness	0.2mm-0.6mm
7	material of rollers	45#steel
8	Cutting type	hydraulic -cutting
9	Main power	4kw+3kw
10	Main frame	300H steel
11	Control system	PLC
12	Brand of electrical parts	Delta
13	Manual decoiler	5 tons
14	Power	3 Phase,380 Voltage,50Hz
15	Dimensions(LWH)	About 6.51.21.2M
16	Weight	about 3000KG

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
