Automated CZ Purlin Roll Forming Machine Stud And Track Cold Roll Former 5.5kw

CZ Purlin Roll Forming Machine 5.5kw,Cold Roll Former 5.5kw,Automated CZ Purlin Roll Forming Machine

Cold Roll Former 5.5kw

Automated CZ Purlin Roll Forming Machine

محل منبع:

چین

نام تجاری:

FMS

گواهی:

CE,ISO

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

Aotomatic CZ Purlin Roll Forming Machine Stud and Track Cold Roller Gear سابق قیمت خوب Peb

نوع HigzhControl:

سیستم کنترل PLC - دقت

ظرفیت تولید:

8-12 متر در دقیقه

ضخامت مواد:

1-3 میلی متر

تیغه:

به نیاز خریدار

سیستم کنترل:

کنترل کامپیوتر PLC با اینورتر

قدرت پمپاژ:

5.5 کیلووات

قاب:

فولاد 400H

مشخصات:

10*1.35*1.75 متر

مواد اصلی گره:

40 Cr

برجسته کردن:

CZ Purlin Roll Forming Machine 5.5kw,Cold Roll Former 5.5kw,Automated CZ Purlin Roll Forming Machine

Cold Roll Former 5.5kw

Automated CZ Purlin Roll Forming Machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

دستگاه اصلی برهنه است، جعبه کنترل کامپیوتر توسط پلاستیک بسته بندی شده است.

زمان تحویل

30 روز

شرایط پرداخت

T/T ، Western Union ، L/C

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

High Efficiency CZ Purlin Roll Forming Machine with 45# Steel Rollers and High Straightness for Construction

بهترین قیمت رو بدست بیار

ویدئو

Full Automatic CZ Purlin Roll Forming Machine with High Straight Level Crush Resistance and 1.5-3MM Thickness for Industrial Buildings

بهترین قیمت رو بدست بیار

ویدئو

CZ Purlin Roll Forming Machine with 18 Station Rollers, 380V/50HZ/3Phase Voltage and Cr12Mov Cutting Blade for High Efficiency

بهترین قیمت رو بدست بیار

ویدئو

CZ Purlin Roll Forming Machine with 700014001500mm Size 8-12m/min Forming Speed and 1.5-3.0mm Thickness for Galvanized Steel

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

Aotomatic CZ Purlin Roll Forming Machine Stud And Track Cold Roller Former Good Price Peb

Product name: Aotomatic CZ Purlin Roll Forming Machine Stud And Track Cold Roller Former Good Price Peb

Production Process: Decoiling - Feeding - Flattening - Lip forming - Flange forming - Angle forming - Straightening - Punching - Cutting - Stacking

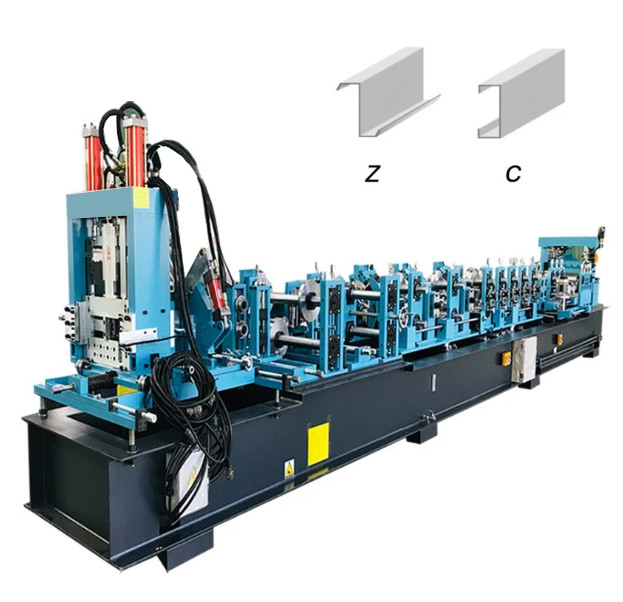

This automatic CZ purlin roll forming machine can produce both C and Z shape purlin, C Z shape change by computer automatically in 1 minute, which highly improve the efficiency and save space&time&cost.

It can be used in the main body stress structure of the large and medium-size enterprises civil construction, like the plant, warehouse, locomotive shed, hangar, exhibition building, theatre, stadiums, roofing load-bearing load and wall surface support of the arbour.

specifications

1	Processing material:	Aluminum plating zinc/galvanized steel
2	Material thickness:	1.5 mm-3.0 mm
3	Capacity:	8-12m/Min
4	The weight:	13-15 ton
5	Roll Forming Machine Shaft Material	Cr12, Heat Treatment
6	Hydraulic Station	5.5kw
7	Specification	101.351.75m
8	Cutting Blade	Cr12MOV After Heat Treatment

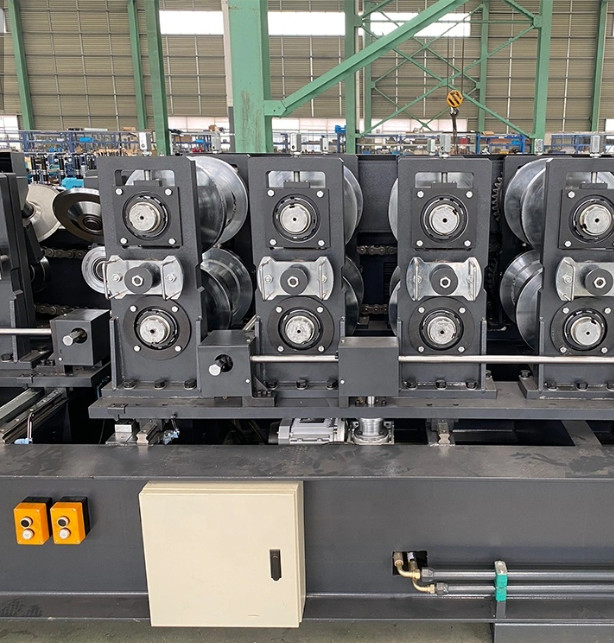

9	Forming Stations	18
11	Main frame:	400H steel
12	Control system:	PLC computer control with inverter
13	Power supply:	380V, 3 Phase, 60Hz(as requirement)

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 20 days after the down payment is received.
