Name: Metal Stud & Track Roll Former Machine With Punching
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: مطالعه و پیگیری
Price: 40,500.00 USD
Availability: InStock

خانه > محصولات > ماشین ساخت رول استد و ردیاب >

Metal Stud & Track Roll Former Machine With Punching

Metal Stud Track Roll Former Machine,Metal Stud Track Roll Former,Punching stud roll forming machine

Metal Stud Track Roll Former

Punching stud roll forming machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

FMS

گواهی:

ISO CE

شماره مدل:

مطالعه و پیگیری

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

فلزی میخ و رول رول ماشین رول سابق با پانچ

ابعاد (L*W*H):

5500 میلی متر * 1000 میلی متر * 1500 میلی متر

مواد خام:

گالوالوم، گالوانیزه

سرعت کار:

20 - 40 متر در دقیقه

عرض های Stud:

3 1/2 اینچ، 5 1/2 اینچ

سنج:

گیج 24 - گیج 16

قدرت موتور:

4 کیلو وات

منبع تغذیه:

220 ولت 3 فاز 60 هرتز

مشخصات:

طبق درخواست مشتری

مسیر فلنج:

3.6 و 5.6 x 2.125

برجسته کردن:

Metal Stud Track Roll Former Machine,Metal Stud Track Roll Former,Punching stud roll forming machine

Metal Stud Track Roll Former

Punching stud roll forming machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

20 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

Omega Profile Light Keel Steel Framing Top Hat Channel Roll Forming Machine

بهترین قیمت رو بدست بیار

C89 Lgs Light Gauge Steel Roll Forming Machine For Villa House

بهترین قیمت رو بدست بیار

Roller Fixer Guide Column CU stud for Long-lasting Roofing

بهترین قیمت رو بدست بیار

Guide Column Roller Fixer Stud And Track Roll Forming Machine with 7.5KW Hydraulic Station Power and Plc S7-200 Control

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

Metal Stud & Track Roll Former Machine Roll Former With Punching

The sMetal Stud & Track Roll Former Machine Roll Former With Punching for use in commercial and domestic buildings where it is necessary to provide strong non-load-bearing partitions.
There is a wide range of partition thickness available for heights of up to 12m. The system is economical and can be erected easily. When installing the system, it is advisable to use and electrically or battery-operated screw gun. It is necessary to ensure that electric cables can pass through the studs that are protected by grommets.

Specification

No.	Item	Description
1	Coil	Galvalume, Galvanized
2	Raw Material Thickness	0.4-0.6mm
3	Working Speed	20-40 m/min

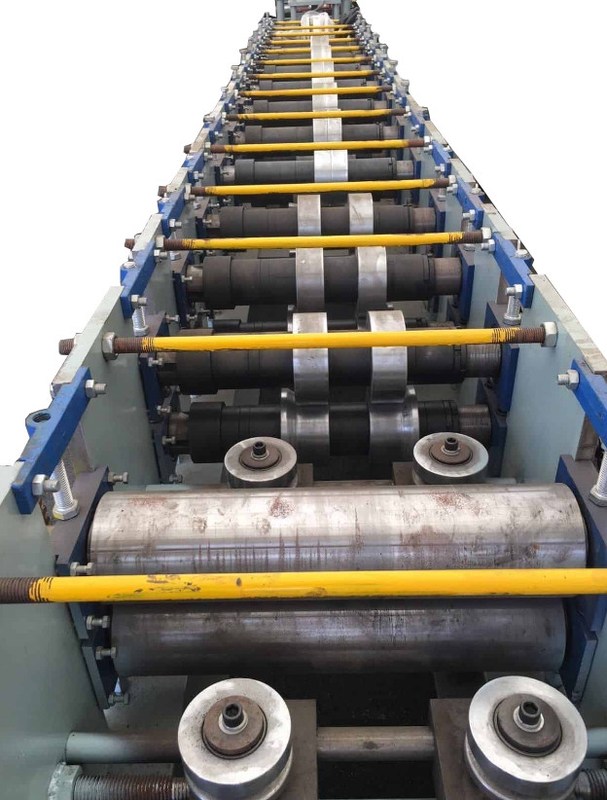

4	Roller Station	12 Raws
5	Dimension (LWH)	5500 mm1000 mm1500 mm
6	Machine Weight	1500 KG
7	Electrical Control System	Delta PLC (can be customized)
8	Flange Track	3.6 & 5.6 x 2.125
9	Hydraulic Station Power	4 KW
10	Power Supply	220v 3 phase 60hz(can be customized)
11	Cutting Accuracy	±2 mm
12	gauge	24 gauge -16 gauge
13	Profile	as customer requested
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Advantage

The metal system is accurate and solid, and will not move over time or with changes in temperature.
There is a wide range of stud widths from 50mm to 146mm to meet varying requirements.
It is a fast and clean system to erect that allows services to pass through easily.
All sections fit together easily and door frames are formed very simply.

Payment terms

30% in advance as down payment

70% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
