Double Out Light Gauge Roll Forming Machine V Angle Bar Steel And Omega

25m/min Light Gauge Roll Forming Machine,PLC Light Gauge Roll Forming Machine,20m/min Light Gauge Roll Forming Machine

PLC Light Gauge Roll Forming Machine

20m/min Light Gauge Roll Forming Machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

FMS

گواهی:

ISO CE

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

دستگاه رول فرمینگ نور سنج دوبرابر V Angle Bar Steel and Omega

ولتاژ:

380 ولت 50Hz 3Phases

نکات کلیدی فروش:

طول عمر طولانی

سرعت:

20--25 متر در دقیقه

سیستم کنترل:

PLC

برش:

Gcr12

روغن هیدرولیک:

46#

ماده شفت:

فولاد 40Cr

ضخامت مواد:

0.3-0.8mm

ابعاد (L*W*H):

5.0 * 1.0 * 1.7 متر

برجسته کردن:

25m/min Light Gauge Roll Forming Machine,PLC Light Gauge Roll Forming Machine,20m/min Light Gauge Roll Forming Machine

PLC Light Gauge Roll Forming Machine

20m/min Light Gauge Roll Forming Machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

20 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

Omega Profile Light Keel Steel Framing Top Hat Channel Roll Forming Machine

بهترین قیمت رو بدست بیار

C89 Lgs Light Gauge Steel Roll Forming Machine For Villa House

بهترین قیمت رو بدست بیار

Roller Fixer Guide Column CU stud for Long-lasting Roofing

بهترین قیمت رو بدست بیار

Guide Column Roller Fixer Stud And Track Roll Forming Machine with 7.5KW Hydraulic Station Power and Plc S7-200 Control

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

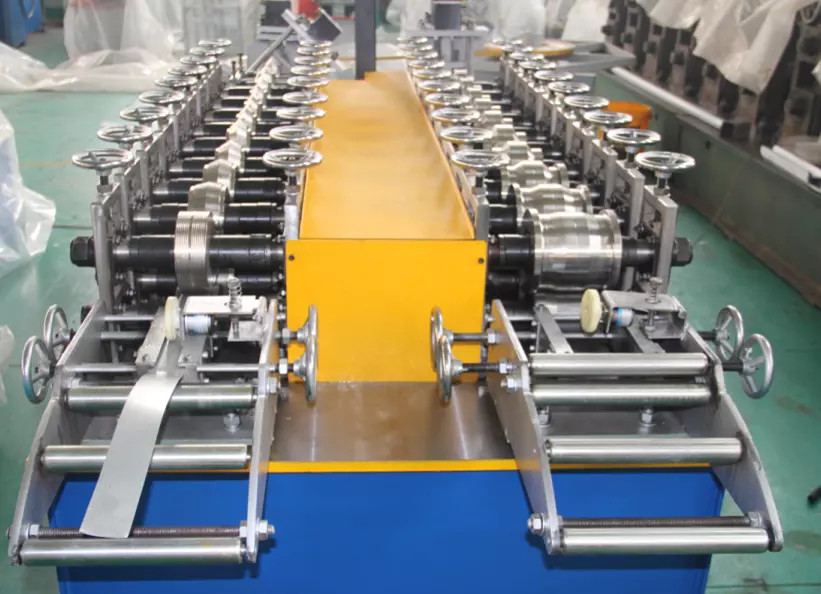

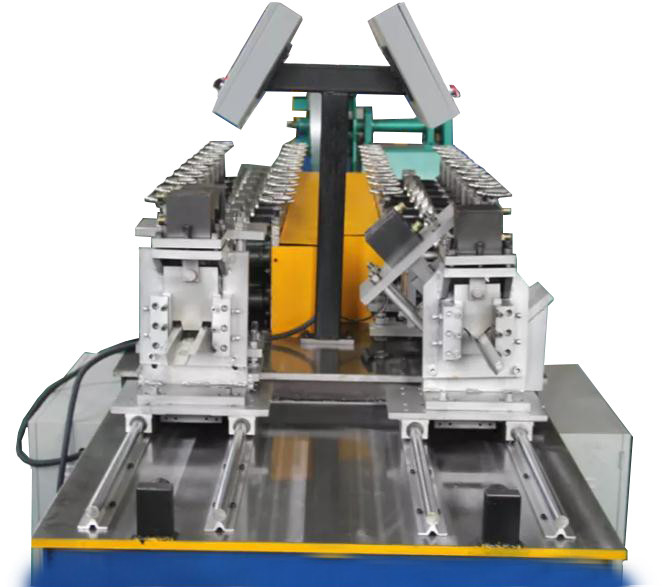

Double Out Light Gauge Roll Forming Machine V Angle Bar Steel And Omega

Double Out Light Gauge Roll Forming Machine V Angle Bar Steel And Omega.Light gauge roll forming machine, the light steel keel is made of high-quality continuous hot-dip galvanized sheet and strip as raw materials, and is rolled into a metal frame for construction through a cold bending process. It is suitable for the decoration of the roof of various buildings, the inner and outer walls of the building and the scaffold The base material of the suspended ceiling. The light steel keel includes ceiling keel and partition keel according to the purpose, and V-shaped, C-shaped, T-shaped, L-shaped and U-shaped keels according to the cross-sectional form.

Specification

Material sheet:G.I. steel strip
Equipment operation	Automatically
Voltage	380V,50/60Hz or at buyer's request
Thickness of material sheet	0.3----0.8mm(normally)
Width of material sheet	As drawing
Control system	By PLC(imported brand)
Cutting method	Hydraulic cutting
Material of roller station	Gcr12 with hard treatment
Formed width	As drawing
Working speed	20---25m/min
Length of finished product	set in computer, machine will cut automatically
Transmission type	gears

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 60 working days after the down payment is received.

Double Out Light Gauge Roll Forming Machine V Angle Bar Steel And Omega 0
