Name: 8-15 M/Min Double Layer Roll Forming Machine Glazed Tile IBR
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: دو لایه
Price: 15000.00 USD
Availability: InStock

خانه > محصولات > دستگاه رول فرمینگ دو لایه >

8-15 M/Min Double Layer Roll Forming Machine Glazed Tile IBR

15m/min glazed tile forming machine,IBR glazed tile forming machine,IBR glazed tile roll forming machine

IBR glazed tile forming machine

IBR glazed tile roll forming machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

FMS

گواهی:

ISO CE

شماره مدل:

دو لایه

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

دستگاه کاشی لعابدار دولایه رول فرمینگ با کیفیت بالا IBR

ابعاد (L*W*H):

7*1.4*1.5 متر

مواد خام:

PPGI PPGL GI GL

سرعت کار:

8-15 متر در دقیقه

ضخامت نورد:

0.3-0.8mm

برش مواد تیغه:

Cr 12 درجه بالا Stee

قدرت موتور:

7.5 کیلو وات

منبع تغذیه:

380 ولت، 50 هرتز، 3 فاز (با توجه به نیاز شما)

عرض مواد خام:

1000 میلی متر

وزن:

5000 کیلوگرم

ماده غلتکی:

45# فولاد کروم اندود

برجسته کردن:

15m/min glazed tile forming machine,IBR glazed tile forming machine,IBR glazed tile roll forming machine

IBR glazed tile forming machine

IBR glazed tile roll forming machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

20 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

High Speed Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

New Style Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

2025 factory price hot sale Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

2025 New Trapezoidal and glazed Double Layer Roof sheet roofing tile Roll Forming Machine

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

هم اکنون تماس بگیرید

توضیح محصول

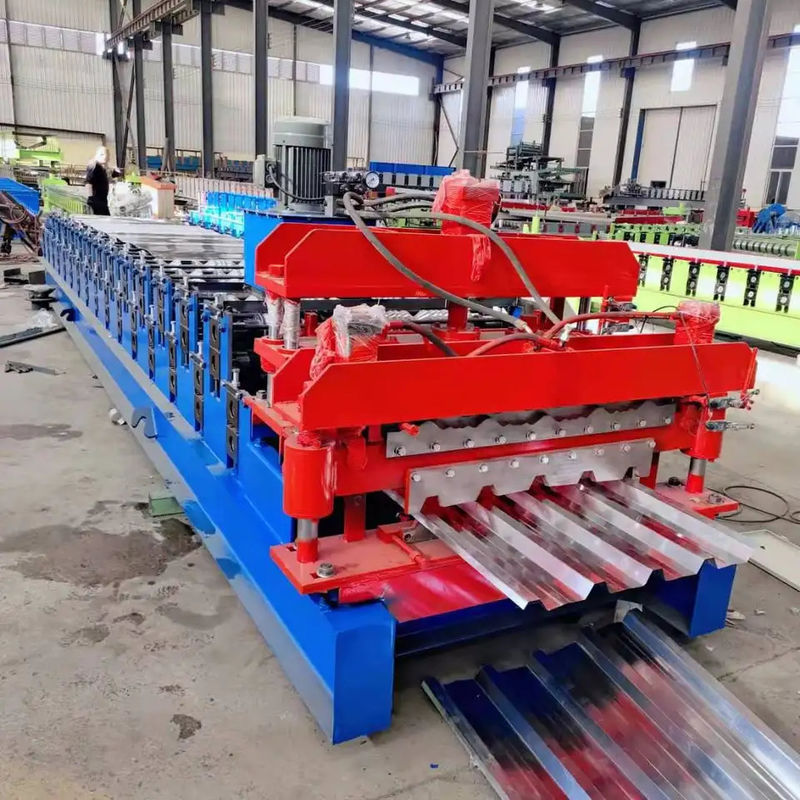

High Quality Double Layer Roll Forming Machine Glazed Tile IBR

High Quality Double Layer Roll Forming Machine Glazed Tile IBR.The double layer roll former produces a dual profile on the same machine, sharing the same decoiler, drive trains and motors, but using different rolls and different cut offs.

The double layer machine is particularly useful where operating or storage space is a problem.

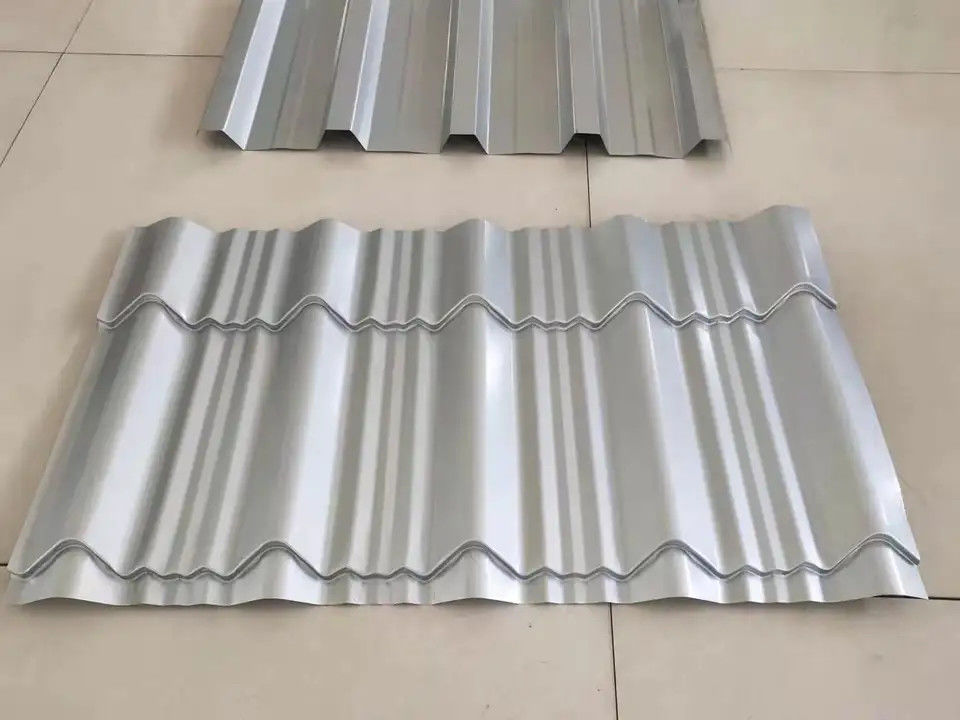

The plate produced has a flat and beautiful appearance, high strength, and durability. It is widely used in industrial and civil buildings, such as factories, warehouses, gymnasiums, exhibition halls, theaters, etc. House surfaces and walls.

Specification

Superior Quality Colored Glazed Metal Roof Tile Roll Forming Machine
General details	Suitable Material	PPGI/PPGL/GI/GL
	coil width	1000/1200/1250MM(according to your need)
	Materials thickness	0.3mm-0.8mm
	Dimension	About 71.41.5m(LWH) , as per the drawing
	Length of the Sheet	can set the length according to your infact need. It is controlled by PLC which can ensure the accuracy of ±1mm.
	Cutting	Automatically stop and cutting when it comes to the set length.
Components Details	Roller Material	High grade 45# steel. Hard chrome plating, 0.05mm.
	Main Frame	350# steel. More stable and no shaking.
	Middle Plate	16mm. We use thicker plates to ensure stability of our products.
	Forming Steps	9-20 steps, according to the drawing.
	Shaft Material	Φ70 mm, high grade 45# steel. Treating process: tempering- finish turning, high rigidity, hard to deform.
	Cutting Blade Material	Cr12, hardness HRC60-62. Treating process: heat treatment- plane abrasion- wire electrode cutting.
Electric Components	Suitable Power	380V, 50 Hz, 3 phase(according to your need)
	Screen	7 inch touch screen, easy to operate.Brand Delta or based on your need
	PLC	Delta Brand (Or Panasonic /Siemens ) Well-adapted to various conditions, such as moisture, electromagnetic disturbance.
	Frequency Converter	Sanjing It has the advantage of slowing down before cutting, to ensure the length accuracy (±1mm, far better than industrial standard ±3mm).
	Length Measurement Device	Omron, made in Japan. It features with high accuracy and stability.

Advantage

The metal system is accurate and solid, and will not move over time or with changes in temperature.
There is a wide range of stud widths from 50mm to 146mm to meet varying requirements.
It is a fast and clean system to erect that allows services to pass through easily.
All sections fit together easily and door frames are formed very simply.

Payment terms

30% in advance as down payment

70% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
