Name: Color Steel Double Layer Roof Roll Forming Machine For Metal Sheet Making
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: دو لایه
Price: 15000.00 USD
Availability: InStock

خانه > محصولات > دستگاه رول فرمینگ دو لایه >

Color Steel Double Layer Roof Roll Forming Machine For Metal Sheet Making

PLC Control Roof Roll Forming Machine,Double Layer Roof Roll Forming Machine,12m/min Roof Roll Forming Machine

Double Layer Roof Roll Forming Machine

12m/min Roof Roll Forming Machine

محل منبع:

چین

نام تجاری:

FMS

گواهی:

CE,ISO

شماره مدل:

دو لایه

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

توضیح محصول:

ماشین آلات ورق فلزی رول فرمینگ سقف دولایه رنگی

ظرفیت تولید:

8-12 متر در دقیقه

ابعاد (L*W*H):

6500*1500*1300 میلی متر

ماده غلتکی:

درجه بالا 45 # Stee

سیستم کنترل:

PLC

ضخامت نورد:

0.8-1.2 میلی متر

ولتاژ:

380 ولت 50Hz 3Phases

عرض تغذیه:

1000 میلی متر

برش مواد تیغه:

Cr 12 فولاد درجه یک

قاب اصلی:

فولاد 350H

وزن:

3500 کیلوگرم

برجسته کردن:

PLC Control Roof Roll Forming Machine,Double Layer Roof Roll Forming Machine,12m/min Roof Roll Forming Machine

Double Layer Roof Roll Forming Machine

12m/min Roof Roll Forming Machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

دستگاه اصلی برهنه است، جعبه کنترل کامپیوتر توسط پلاستیک بسته بندی شده است.

زمان تحویل

30 روز

شرایط پرداخت

T/T ، Western Union

قابلیت ارائه

35 ست در ماه

محصولات مرتبط

ویدئو

High Speed Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

New Style Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

2025 factory price hot sale Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

2025 New Trapezoidal and glazed Double Layer Roof sheet roofing tile Roll Forming Machine

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

هم اکنون تماس بگیرید

توضیح محصول

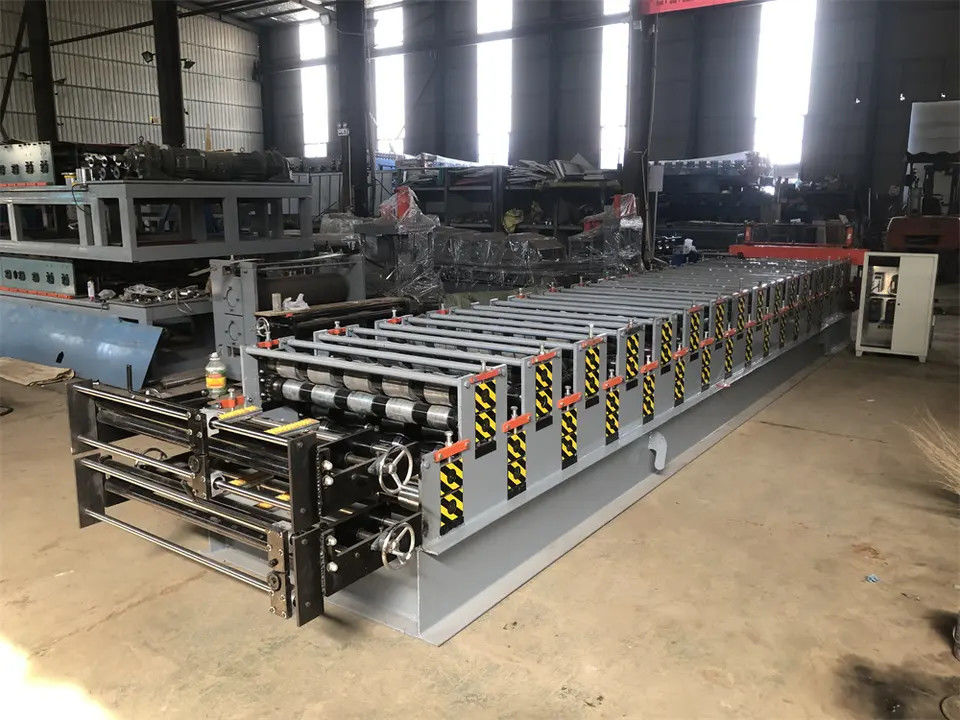

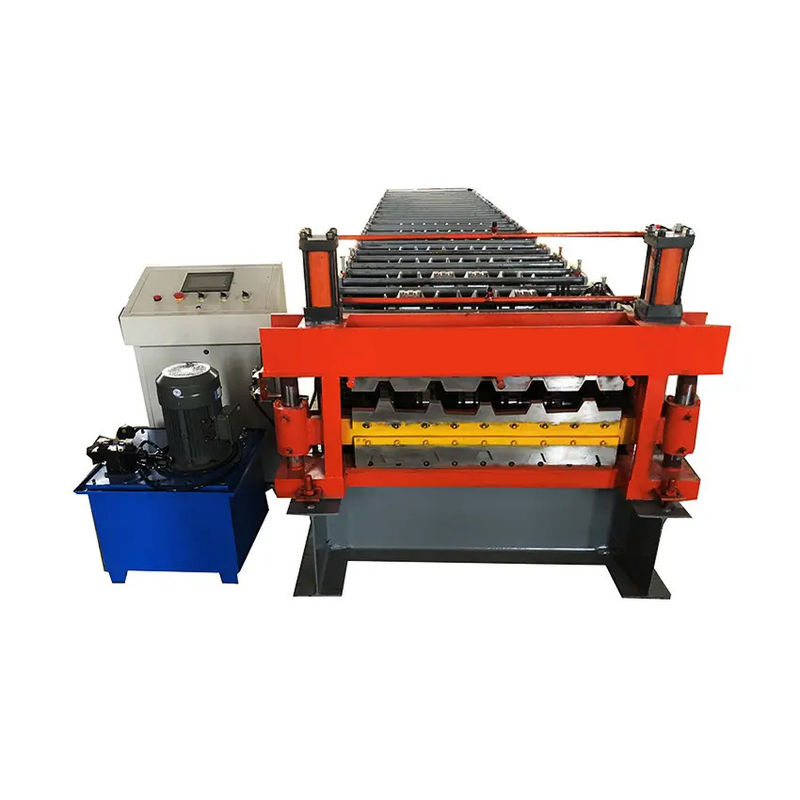

Color Steel Double Layer Roof Roll Forming Machine Metal Sheet Making Machine

Color Steel Double Layer Roof Roll Forming Machine Metal Sheet Making Machine.Compared to a single layer roof panel roll forming machine, a double layer roll forming machine is desgined to produce two different kinds of metal sheets which can be one trapezoidal roofing and one roof/wall cladding sheet.

We provide an extensive line of products, including roof and wall panel machine, tile roof machine, purlin forming machine, shutter door machine, floor decking machine and other associated equipment.

Our products have been sold worldwide over 90 countries including America, the UK, Australia, India, Sri Lanka South Africa, Tanzania, Nigeria etc.

Detailed Parameters:

No.
1	Suitable material	color steel sheet, galvanized steel sheet, aluminium sheet
2	Material width	1000mm or as your required
3	Material thickness	0.3-0.8 or as your required
4	Working speed	8-12m/min, can be 20-25m/min
5	Main motor power	5.5kw with cycloidal with reducer
6	Hydraulic pump power	4kw
7	Electrical control system	PLC control system with inverter
8	Shaft diameter	75mm
9	Roller station	15 rows, depend on your panel profile drawing
10	Roller	high grade 45# steel, hard chrome plating
11	Working time	24 hours
13	Cutting head material	Cr 12 mould steel with quenched treatment
14	Voltage	380V 3Phase 50Hz or as your required
15	Weight	3.5T
16	The machine size	650015001300mm

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
