Name: Automatic Steel Floor Deck Roll Forming Machine High Precision
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: عرشه کف
Price: 26,500.00 USD
Availability: InStock

خانه > محصولات > ماشین شکل گیری رول کف >

Automatic Steel Floor Deck Roll Forming Machine High Precision

automatic steel floor deck roll forming machine,0.8mm steel floor deck roll forming machine,high precision metal deck roll forming machine

0.8mm steel floor deck roll forming machine

high precision metal deck roll forming machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

FMS

گواهی:

ISO CE

شماره مدل:

عرشه کف

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

خط تولید ماشین آلات تشکیل رول عرشه کف فولادی با دقت بالا

ابعاد (L*W*H):

6500*1300*1100

ماده شفت:

CR12

نوع کنترل:

سیستم PLC

ماده غلتکی:

فولاد فورج 45#

وزن:

5000 کیلوگرم

ولتاژ:

380 ولت 50Hz 3Phases

8-12 متر در دقیقه:

8-12 متر در دقیقه

ضخامت نورد:

0.3-0.8mm

عرض تغذیه:

1000 میلی متر

برجسته کردن:

automatic steel floor deck roll forming machine,0.8mm steel floor deck roll forming machine,high precision metal deck roll forming machine

0.8mm steel floor deck roll forming machine

high precision metal deck roll forming machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

40 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

Cellular Composite Roofing Sheet Making Machine 3.0" Width 0.8-2.0MM Thickness

بهترین قیمت رو بدست بیار

ویدئو

13 Rows Roof Tile Roll Forming Machine For Tipo Teja Americana Normal Tile

بهترین قیمت رو بدست بیار

ویدئو

Decking Flooring Board 1.2mm Floor Tile Making Machine

بهترین قیمت رو بدست بیار

ویدئو

45 Steel Deck Roll Forming Machine Cold ±2mm Cutting Tolerance Excellent Performance

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

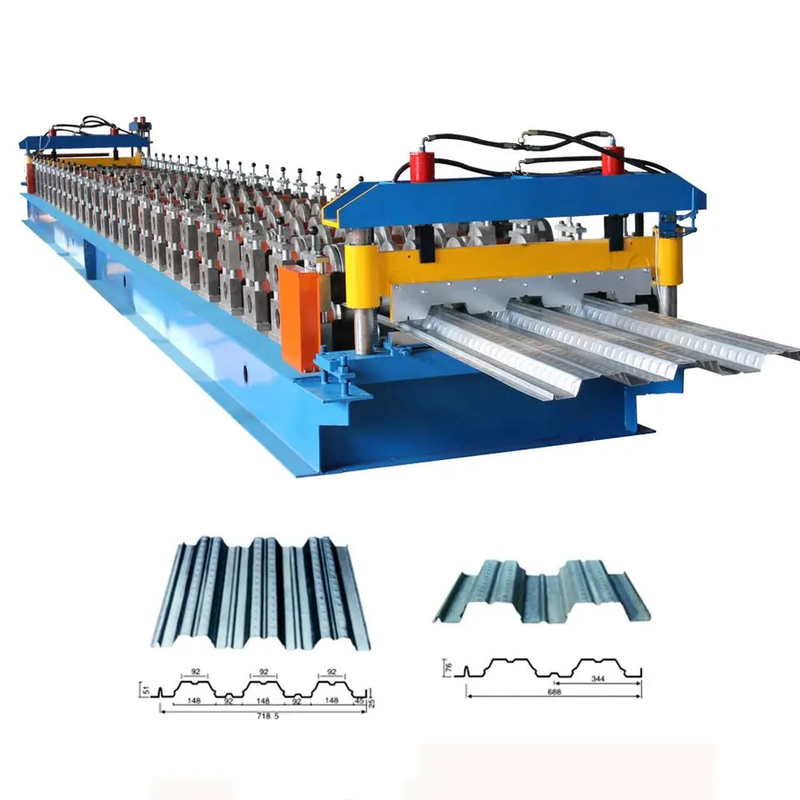

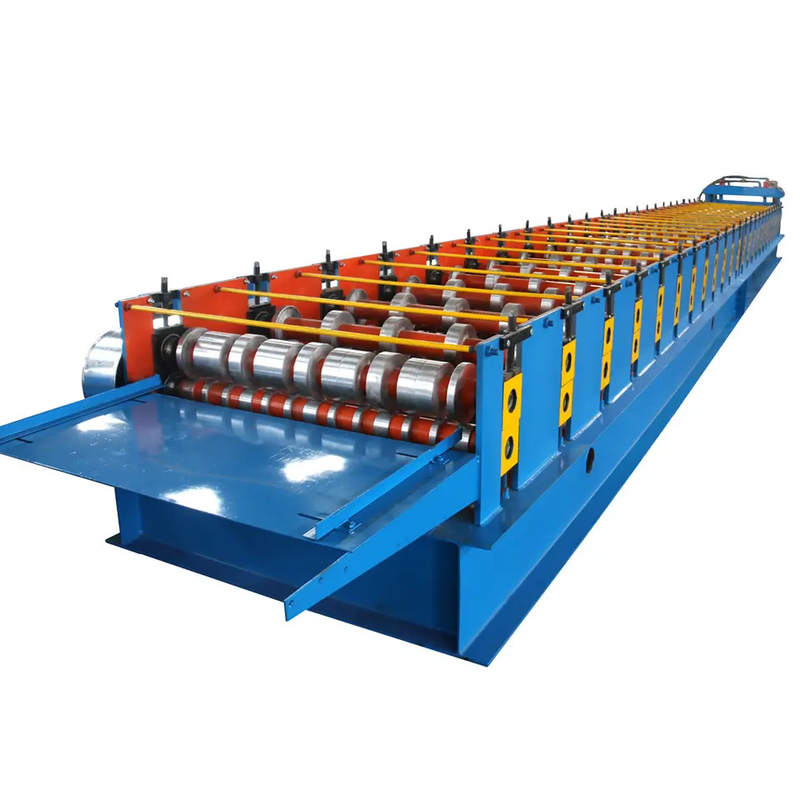

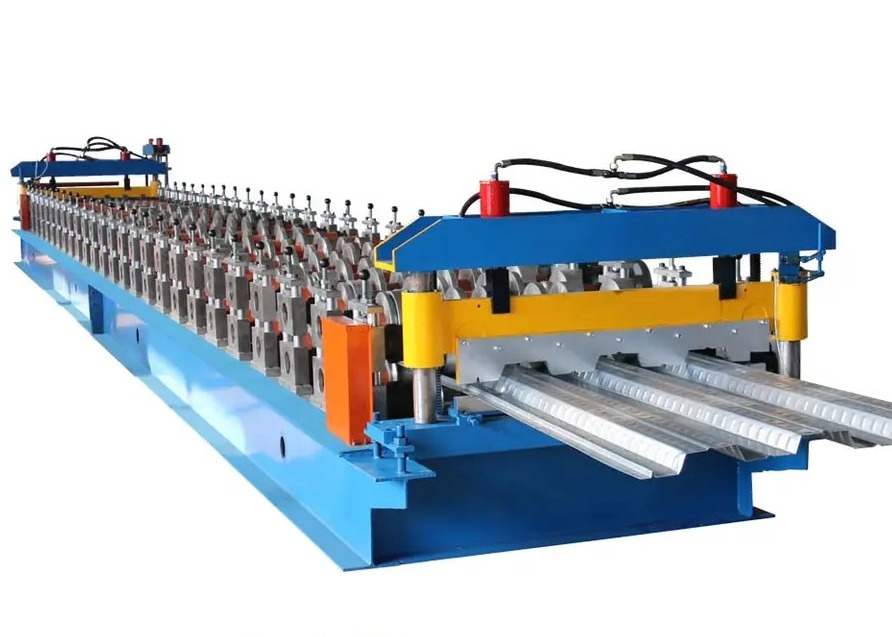

Automatic High Precision Steel Floor Deck Roll Forming Machine Production Line

Automatic High Precision Steel Floor Deck Roll Forming Machine Production Line

Usage:

In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission,roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is working

Feature:

Ensure stability , precision and lifetime.

Our company's products are available inall price ranges. Different functions andconfigurations have different product pricesIt depends on your needs and budget. Inthis way,l can recommend the most suitableproducts to you.

Specification

Main Forming machine	Forming steps	22 steps
	Shaft diameter	80mm
	Machine stand	Individual Arch Plate
	Machine frame	steel plate welded
	roller material	45#steel
	shaft material	45# steel with quenching and tempering
	Work speed	0-15m/min
	Transport	By chains
	Power of main machine	22kw
	Voltage	380V-50HZ-3P(as required)
	Machine dimension	131.51.2m
	Machine weight	About 6.5T
	Machine color	Yellow and blue(as required)

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.

Automatic Steel Floor Deck Roll Forming Machine High Precision 0
