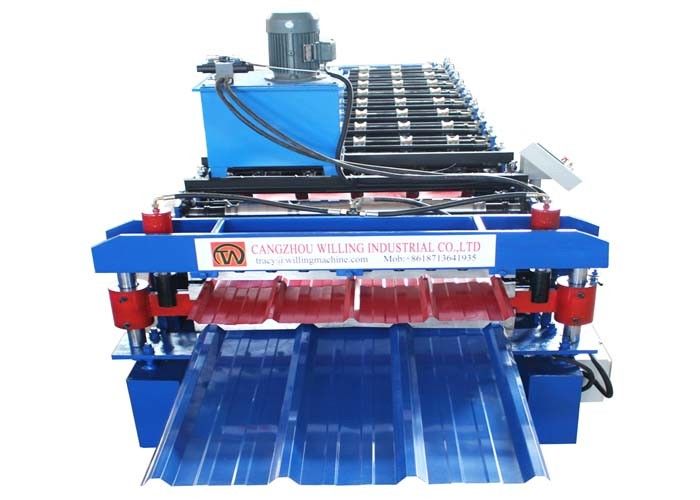

Aluminum Roof Sheet Double Layer Roll Forming Machine Roof Panel Roll Forming Machine
Double Layer IBR Type Roof Cold Roll Forming Machine
The picture shows the whole process of cold roll forming machine : MOTORIZED UNWINDING --- Feeding guide --- Roll forming --- Leveling --- Cutting --- Run out product stacker
Main equipment
Decoiler, main forming machine, hydraulic cutting, product stand, hydraulic system, electric system.
1. This roll forming machine can form smooth and beautiful metal roofing sheet without any scratch on surface
2. Roll forming process: uncoiler, roll forming, forming step effect, cut to length.
3. Fully Automatic Control System with PLC.
4. Easy operation: Set length and quantity on the control panel,machine will auto working
5. Customized your own roll forming machine, We can design the machine according to your specification and profile drawing.
|
|
5600mm*1300mm*1500mm
|
|
|
6300 kg |
|
|
300H Steel
|
Thickness of plate in equipment
|
14mm
|
|
|
high layer:9 row (900), under layer: 11 row (840)
|
|
|
45# steel quenching treatment
|
|
|
Diameter of 70
|
|
|
45# steel with hard chrome plating
|
|
|
Chain wheel chain drive/hydraulic motor drive
|
|
|
inch 0.6
|
|
|
6kw
|
|
|
4kw
|
|
|
8-10 m/min/hydraulic transmission 15 m/min
|
|
|
0.3-0.8mm
|
Manual inner tight decoiler
A. Coil inner diameter: 450mm to 550mm
B. Max width of coiling: 1200mm
C. Max weight of loading: 6000kgs
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
.The machine is easy to operate and can be operated independently by one or two workers. The color panels produced by it have a smooth appearance, no burrs, high strength, and durability. This machine can be customized. Just send us your smaple, we will design and produce the machine for you.
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
We want to know following information.
1), What is the exact profile you want to produce?
2), What kind of material you will use, such as steel or aluminium, max coil weight, thickness?
3), What kind of decoiler and stacker you need?
Pls contact us as below informaiton,hope can cooperate,thanks advance
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
