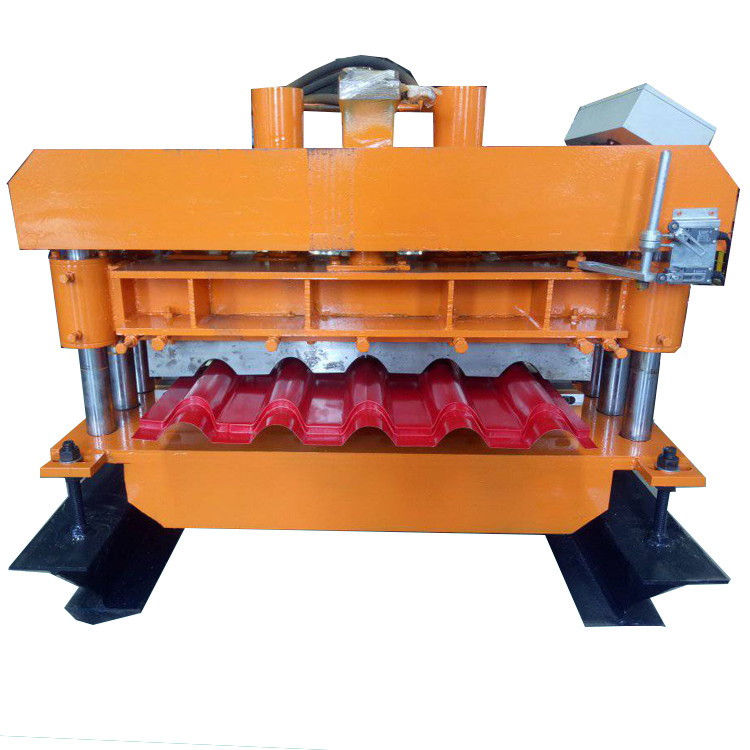

Steel Roofing And Wall Cladding Roll Forming Machine 8 - 15m/Min

Steel Roofing And Wall Cladding Roll Forming Machine 8 - 15m/Min

8m/min Wall Cladding Roll Forming Machine,15m/min Wall Cladding Roll Forming Machine

15m/min Wall Cladding Roll Forming Machine

محل منبع:

چین

نام تجاری:

FMS

گواهی:

CE,ISO

شماره مدل:

840

با ما تماس بگیرید
درخواست قیمت
جزئیات محصول
نام محصول:
دستگاه رول شکل دهی کاشی ذوزنقه ای 5 دنده با ظرفیت بالا صرفه جویی در انرژی
استفاده:
سقف، دیوار
ماده مناسب:
PPGI PPGL GI GL
وزن:
4500 کیلوگرم
سرعت:
8-15 متر در دقیقه
ماده غلتکی:
380 ولت 50Hz 3Phases
ضخامت نورد:
0.2-0.8mm
ابعاد (L*W*H):
7.5 * 1.65 * 1.5 متر
غلتک:
45# فولاد به عنوان نیاز مشتری
عرض تغذیه:
914-1450 میلی متر
رنگ:
رنگ آبی
برجسته کردن:

8m/min Wall Cladding Roll Forming Machine,15m/min Wall Cladding Roll Forming Machine

,

15m/min Wall Cladding Roll Forming Machine

شرایط پرداخت و ارسال
مقدار حداقل تعداد سفارش
1 مجموعه
قیمت
negotiable
جزئیات بسته بندی
دستگاه اصلی برهنه است، جعبه کنترل کامپیوتر توسط پلاستیک بسته بندی شده است.
زمان تحویل
25 روز
شرایط پرداخت
T/T، D/A، D/P
قابلیت ارائه
30 مجموعه در هر ماه
محصولات مرتبط

6m Automatic Stacker for Roof Sheet Roll Forming Machine

بهترین قیمت رو بدست بیار
قیمت خوب the factory price for 0.3-0.8mm thickness Glazed Roof sheet forming machine آنلاین ویدئو

the factory price for 0.3-0.8mm thickness Glazed Roof sheet forming machine

بهترین قیمت رو بدست بیار
قیمت خوب 4meter/Min Glazed Tile Roll Forming Machine With 18 Rows آنلاین ویدئو

4meter/Min Glazed Tile Roll Forming Machine With 18 Rows

بهترین قیمت رو بدست بیار
با ما تماس بگیرید
86-317-2016816
هم اکنون تماس بگیرید
توضیح محصول

Steel Roofing And Wall Cladding Roll Forming Machine/Metal Roofing Roll Forming Machine Steel Roof Tile Forming Machine

 Steel Roofing And Wall Cladding Roll Forming Machine



Roof roll forming machines has different types .Trapezoid Roof Tile Roll Forming Machine 5 Ribs High Capacity Energy Saving widely used in many kinds of industrial factory, civilian buildings, and Roof board for attached part product.It has advantage of pretty appearance, durable using and so on.
Full Automatic Computer Control make easy to operation.
Machine roller and shaft is produced by exact demands and control . The roller material processing method is by CR12 MOV heat
treatment 58℃-62℃ . The product quality is durable and long service life .




Specification
item
value
Production Capacity
0-20m/min
Rolling thinckness
0.3-0.8mm
Feeding width
914-1450mm
Product name
Roof Sheet Forming Machine
Raw material
PPGI PPGL GI GL
Shaft material
45# Steel Outer Diameter: 70mm
Cutting blade material
Cr 12 High Grade Steel
Roller material
45#steel Chrome Plated
Main frame
350H Steel
Feature
High Production Speed
Motor brand
Lichao
Decoiler
5T Manual Decoiler
Cutting system
Hydraulic Automatic Cutter



A:- What service can you provide before order?
- About the pre-sale service. We provide you answers of all your questions on our machines, such as technical parameter, price,
payment terms, ect. If you wanna visit our factory and check the machines, we also can send you invitation letter and give you our
warmest welcome.
B:- Can you finish the machine during the delivery time?
- We will finish the machine in time according to determined lead time.
C:- Can you provide some spare parts?
- Yes, of course. The quick-wear parts are sent to you together with the machine.
D:- What is the after- sale service?
- About the after-sales service. We can send technician to your country to fix the machine. The buyer should bear all the cost
including: visa, Roundtrip ticket and suitable accommodation, also buyer should pay the salary 100USD/day.
The warranty is one year. and we will provide the technical support for the whole life. It is free to maintain the machine the
first year after buying, including changing the main components. The first year hence, you will pay for our technician $100 per
day to maintain the machine. And the components are not free, if you need to get it from us.
E:- Any other service?
- We can manufacture, design, installation and debug various roll forming machines including standard and customized machines.
It is free to assemble machine and train your works, but the buyer should pay for the round-trip airplane ticket, and arrange
accommodation during that time.
F:- Can you accept OEM?
- We can accept OEM.
G:- Any certification:
- Yes, we have CE TUV BV certification.



Payment terms

  40% in advance as down payment

  60% is paid before the shipment is processed



Delivery

  FOB: Tianjin Xingang Port

  The Delivery Time: 30 days after the down payment is received.
