Name: Automatic Control Metal Deck Roll Forming Machine With 10 - 20m/Min
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: طبقه طبقه
Price: 26,500.00 USD
Availability: InStock

خانه > محصولات > ماشین شکل گیری رول کف >

Automatic Control Metal Deck Roll Forming Machine With 10 - 20m/Min

Metal Deck Forming Machine 20m/Min,PLC Metal Deck Roll Forming Machine,20m/Min metal deck forming machine

PLC Metal Deck Roll Forming Machine

20m/Min metal deck forming machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

FMS

گواهی:

ISO CE

شماره مدل:

طبقه طبقه

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

دستگاه شکل دهی رول عرشه فلزی کنترل اتوماتیک با 10 - 20 متر در دقیقه

ابعاد (L*W*H):

12*1.8*2.0

برش مواد تیغه:

CR12 خاموش شد

نوع کنترل:

سیستم PLC

ماده شفت:

درجه عالی No.45 فورج

وزن:

11500 کیلوگرم

ولتاژ:

380 ولت 50Hz 3Phases

ظرفیت تولید:

15-20 متر در دقیقه

برجسته کردن:

Metal Deck Forming Machine 20m/Min,PLC Metal Deck Roll Forming Machine,20m/Min metal deck forming machine

PLC Metal Deck Roll Forming Machine

20m/Min metal deck forming machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

40 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

Cellular Composite Roofing Sheet Making Machine 3.0" Width 0.8-2.0MM Thickness

بهترین قیمت رو بدست بیار

ویدئو

13 Rows Roof Tile Roll Forming Machine For Tipo Teja Americana Normal Tile

بهترین قیمت رو بدست بیار

ویدئو

Decking Flooring Board 1.2mm Floor Tile Making Machine

بهترین قیمت رو بدست بیار

ویدئو

45 Steel Deck Roll Forming Machine Cold ±2mm Cutting Tolerance Excellent Performance

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

هم اکنون تماس بگیرید

توضیح محصول

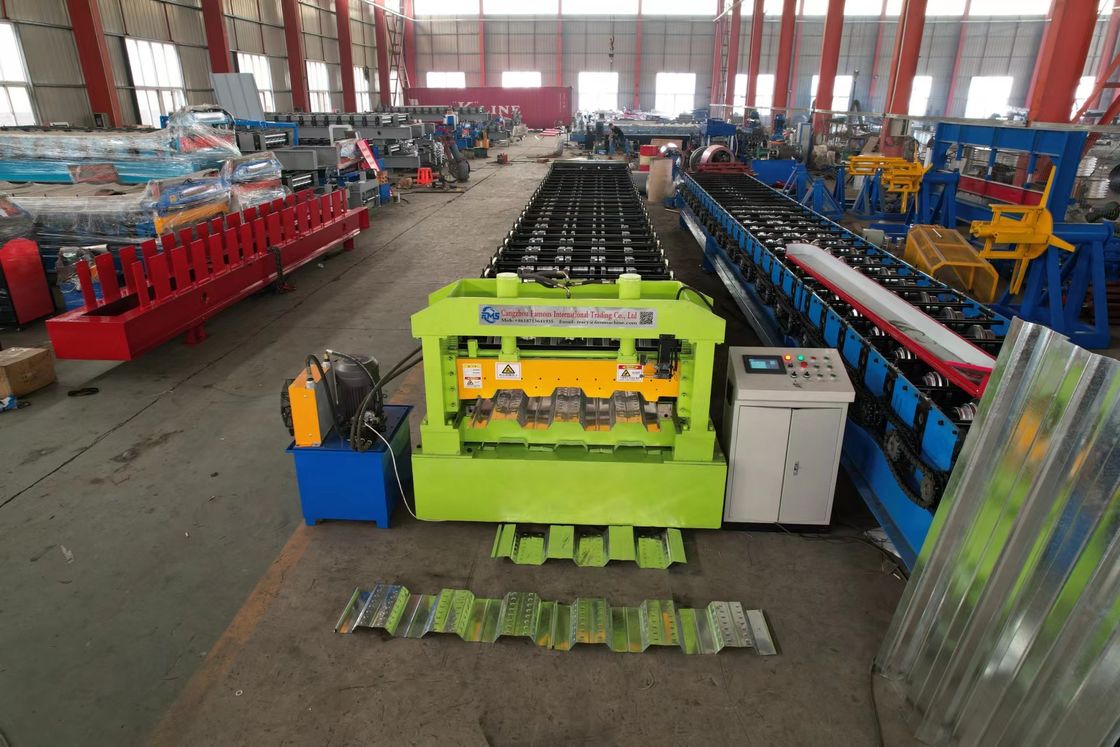

Automatic Control Metal Deck Roll Forming Machine With 10 - 20m/Min

Products are widely used in power plants, power equipment companies, automotive exhibition halls, steel structure plants, cement tanks, steel structure offices, airport terminals, railway stations, stadiums, concert halls, large -scale supermarkets, logistics centers, Olympic venues sports sports Steel structure buildings such as venues

Specification

Customized Metal Deck Roll Forming Machine With 15 - 20m/Min
Dimensions	12.51.82.0m
Weight	About 10500kgs
Roller	26 Rows
Material of the Cutting Blade	Cr12, Quenched treatment 58℃-60℃
Rolling Materials	45# forging steel with chromium plate
Diameter of the Roller	Φ90mm
Main Structure of the Machine	450H beams
Side Panel of Machine	20mm
Chain	1 Inch
Motor Power	15Kw*2
Pump Station Motor	4Kw Lichao Brand
Productivity	10-15m/min
Thickness of the Plate	0.5-1.2mm
Length Tolerance	±2mm
Touch Screen	Delta
Voltage	380V 50Hz 3 phases or as customer's need
Drive Mode	Motor driver
Suitable to Process	GI/GL/PPGI/PPGL/Aluminum coils

Application

To meet the requirements of the rapid construction of the main steel structure, it can provide a firm operating platform in a short period of time, and can use multiple floors to lay pressure steel plates, and layered pouring concrete plate flowing water construction construction

Advantage

1: To meet the requirements of the rapid construction of the main steel structure, it can provide a firm operating platform in a short period of time. It can also use multiple floors to lay pressure steel plates and layered flowing water on the stratified concrete plate.
2: During the use stage, the tillers of the concrete floor are also increased the rigidity of the floor, which saves the amount of steel and concrete.
3: The surface pressure of the pressure plate makes the maximum binding force between the panel and the concrete, so that the two form the overall, with the ribs, so that the building's board system has a high -strength bearing capacity.
4: Under the cantilever conditions, the Loucheng board is only used as a permanent template. The length of the suspended length can be determined according to the section characteristics of the building. In order to prevent the cracking of the suspended board, it is necessary to match the negative tendon according to the design of the structural engineer at the branch.

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.

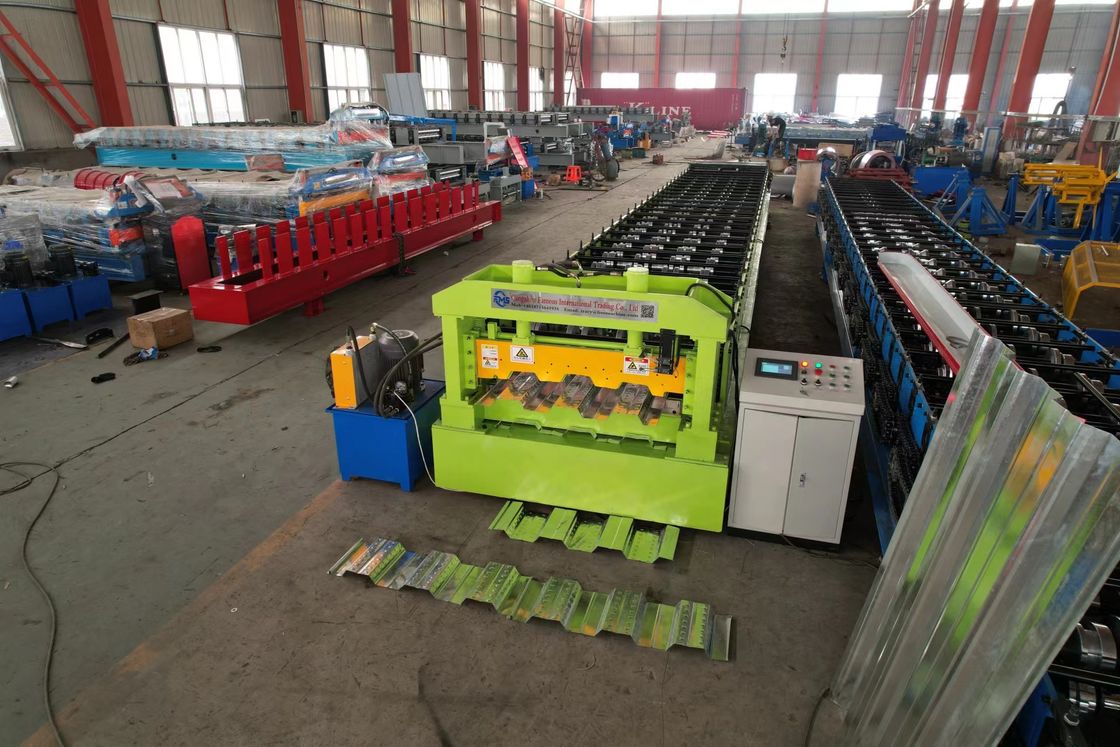

Automatic Control Metal Deck Roll Forming Machine With 10 - 20m/Min 0
