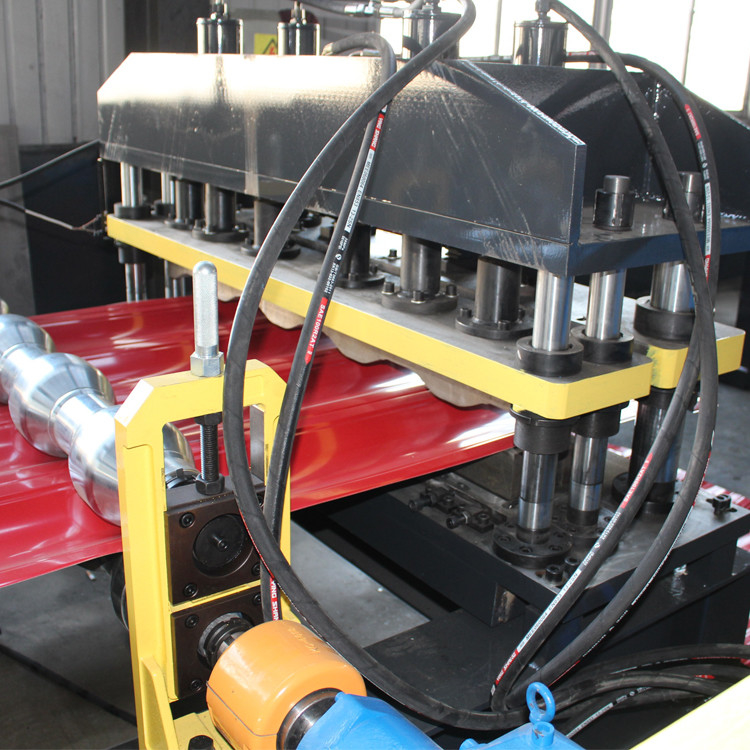

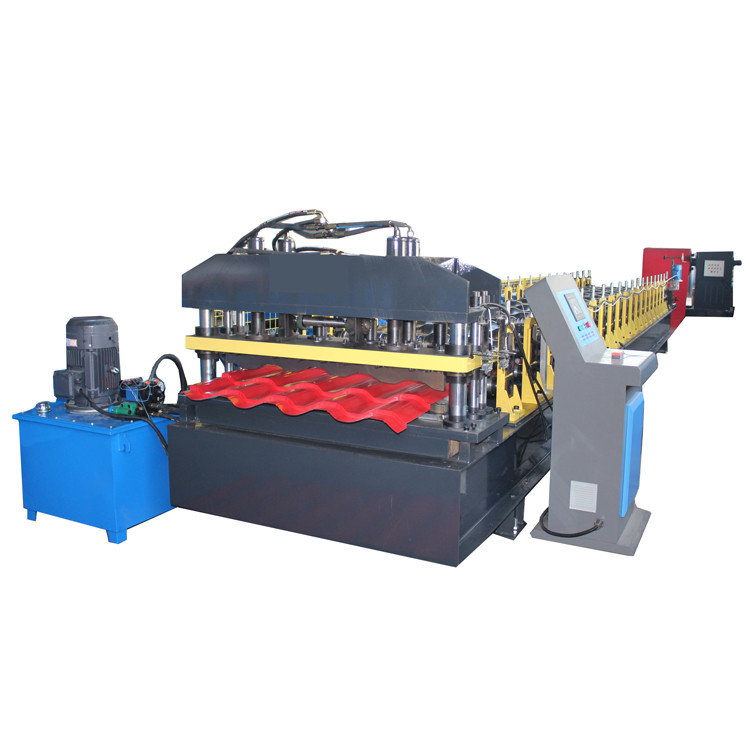

Automatic Ppgi Glazed Tile Step Tile Roll Forming Machine 10-15 M / Min High Speed
Automatic Ppgi Glazed Tile Step Tile Roll Forming Machine 10-15 M / Min High Speed ,
We manufacture Roll Forming machine,European roller shutter machine,C & Z purlin machine,Roof & wall forming machine,
Octagon tube machine,Guardrail forming machine,Tile roof forming machine,Door frame forming machine,Down pipe forming
machine,Slitting line,Sandwich panel line,Floor decking forming machine,Cable tray forming machine,uncoiler and recoiler,
Double-layer forming machine,Ridge cap forming machine,Cut to length line,Shearing and press brake machine,T-bar forming
machine,roller shutter slat forming machien,etc.
|
Suitable material
|
Strip steel
|
|
Working speed
|
10- 15 m/min
|
|
Main motor power
|
4kw
|
|
Hydraulic station power
|
5kw
|
|
Thickness of material
|
0.3-0.8 mm
|
|
Roller station
|
16 stations
|
|
Driving mode
|
Chain
|
|
Electric tension
|
380 V /3 phase/ 50 HZ
|
|
Material of roller
|
45# forged steel
|
|
Material of cutting
|
Cr12
|
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
