Name: Steel Metal Sheet Metal Plate Cold Roll Forming Machine Embossing
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: دو لایه
Price: 16,000.00 USD
Availability: InStock

خانه > محصولات > دستگاه رول شکل دهی کاشی سقف >

Steel Metal Sheet Metal Plate Cold Roll Forming Machine Embossing

8m/min Cold Roll Forming Machine,Embossing Cold Roll Forming Machine,PLC Cold Roll Forming Machine

Embossing Cold Roll Forming Machine

PLC Cold Roll Forming Machine

محل منبع:

چین

نام تجاری:

FMS

گواهی:

CE,ISO

شماره مدل:

دو لایه

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

توضیح محصول:

خط منبت ورق فلزی ورق فلزی منبت کاری دستگاه شکل دهی سرد رول

ظرفیت تولید:

8-15 متر در دقیقه

ابعاد (L*W*H):

4000mmx2000mmx1500mm

ماده غلتکی:

درجه بالا 45 # Stee

سیستم کنترل:

PLC

ضخامت نورد:

0.8-1.2 میلی متر

ولتاژ:

380 ولت 50Hz 3Phases

عرض تغذیه:

1000 میلی متر

برش مواد تیغه:

Cr 12 فولاد درجه یک

قدرت:

10 کیلووات

وزن:

5000 کیلوگرم

برجسته کردن:

8m/min Cold Roll Forming Machine,Embossing Cold Roll Forming Machine,PLC Cold Roll Forming Machine

Embossing Cold Roll Forming Machine

PLC Cold Roll Forming Machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

دستگاه اصلی برهنه است، جعبه کنترل کامپیوتر توسط پلاستیک بسته بندی شده است.

زمان تحویل

30 روز

شرایط پرداخت

T/T ، Western Union

قابلیت ارائه

35 ست در ماه

محصولات مرتبط

6m Automatic Stacker for Roof Sheet Roll Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

the factory price for 0.3-0.8mm thickness Glazed Roof sheet forming machine

بهترین قیمت رو بدست بیار

ویدئو

2025 New Design for Glazed Roof Tile Roof Sheet Roll Forming Machine With 18 Rows

بهترین قیمت رو بدست بیار

ویدئو

4meter/Min Glazed Tile Roll Forming Machine With 18 Rows

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

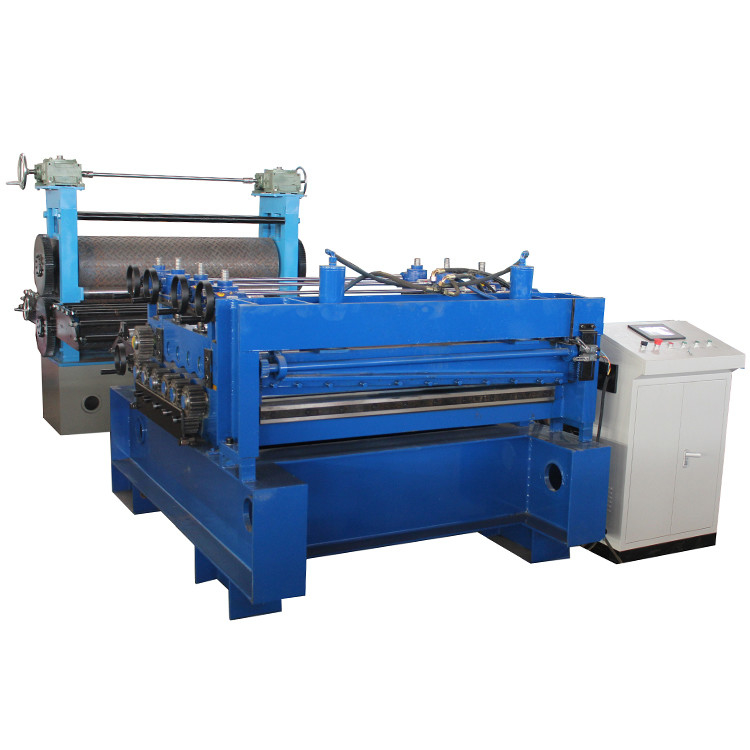

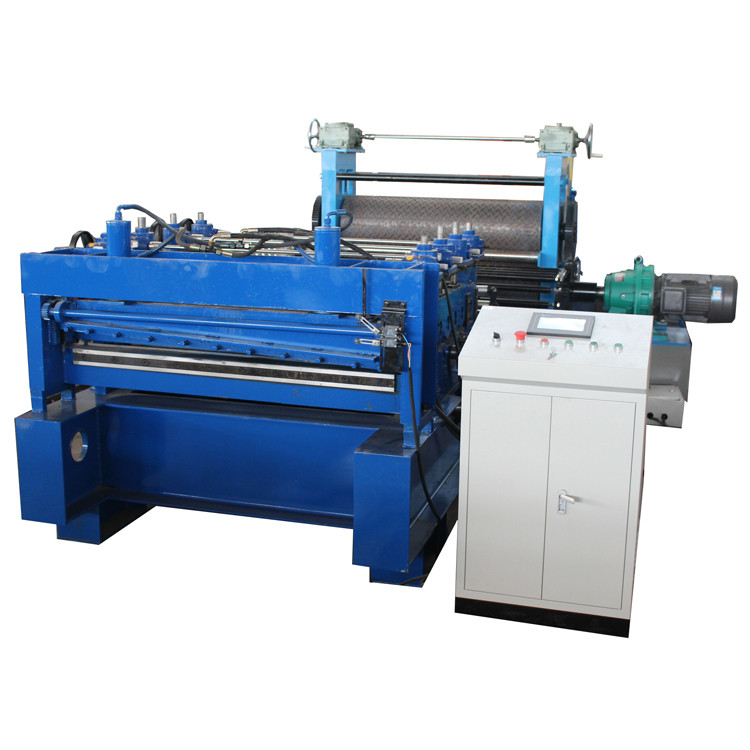

Steel Metal Sheet Metal Plate Embossing Cold Roll Forming Machine Embossing Line

Steel Metal Sheet Metal Plate Embossing Cold Roll Forming Machine Embossing Line, The embossing rollers steel machines fuctions main by the two big rollers, there are patterens on the rollers,so when then rollers rolling, and the sheet between the two sheet is running, there will appear the patterns on the sheet.
Finest-quality Steel Embossing roller floor embossing machinery can work manual by workers from the feeding and the embossing,and also be formed by the full automatic by PLC controling box.The embossing profile can be customized as customer's request.

Welcome you send us the profile drawing.

Feeding table-- Embossing Machine---Leveling Device- Runout table

Detailed Parameters:

item	value
Core Components	PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Automatic Grade	Automatic
Production Capacity	8-15M/MIN
Voltage	380V 50HZ OR AS CUSTOMER REQUIRED
Power	10kw
Dimension(LWH)	4000x2000x1500mm
Weight	5000kg
Warranty	1 Year
Key Selling Points	Long Service Life
Automatic Grade	Automatic
Weight	5000 kg
Voltage	380V 50HZ OR AS CUSTOMER REQUIRED
Core Components	PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear,

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
