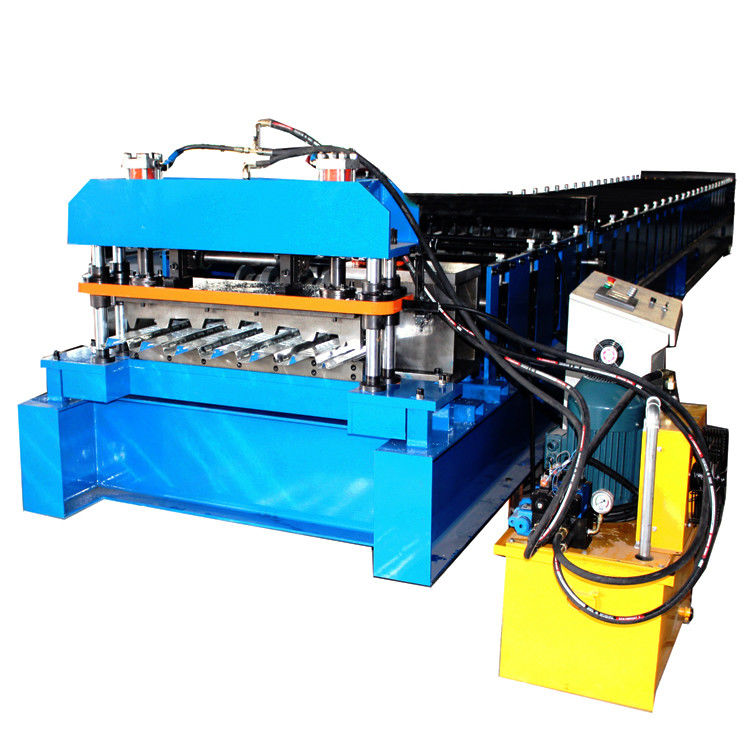

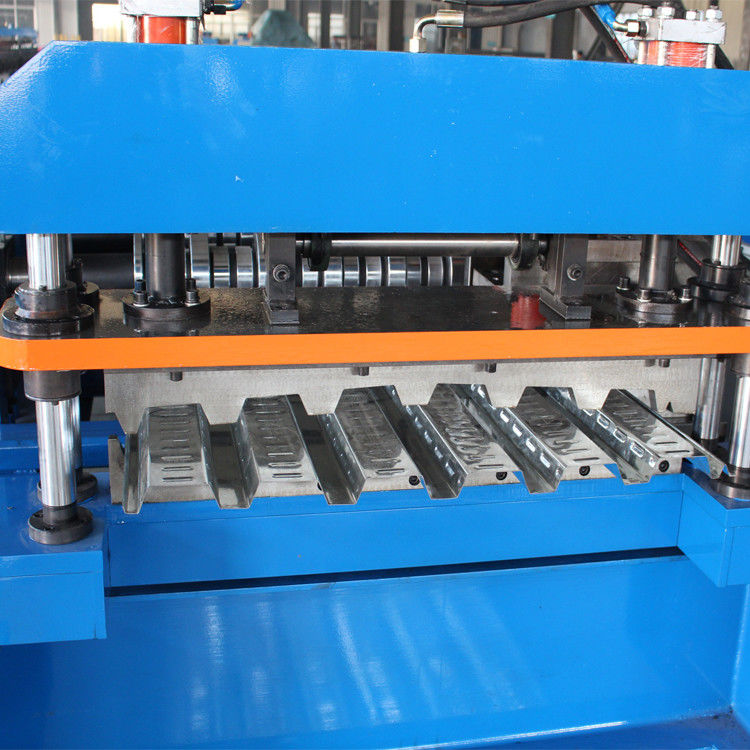

Name: PLC System Steel Plate Deck Floor Tile Making Machine 15 - 20 m/min
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: عرشه کف
Price: 26,500.00 USD
Availability: InStock

خانه > محصولات > ماشین شکل گیری رول کف >

PLC System Steel Plate Deck Floor Tile Making Machine 15 - 20 m/min

20m/min floor tile making machine,steel plate floor tile making machine,15m/min floor tile making machine

steel plate floor tile making machine

15m/min floor tile making machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

FMS

گواهی:

ISO CE

شماره مدل:

عرشه کف

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

دستگاه ساخت کاشی کف عرشه ورق فولادی با کیفیت بالا برای بازار اروپا

ابعاد (L*W*H):

12*1.8*1.7 متر

مواد:

کویل گالوانیزه

نوع کنترل:

سیستم PLC

ساختار اصلی دستگاه:

پرتو 450 H

وزن:

حدود 13000 کیلوگرم

ولتاژ:

380 ولت 50Hz 3phase

ظرفیت تولید:

15-20 متر در دقیقه

ضخامت نورد:

0.3-0.8mm

سیستم برش:

سیستم برش هیدرولیک

برجسته کردن:

20m/min floor tile making machine,steel plate floor tile making machine,15m/min floor tile making machine

steel plate floor tile making machine

15m/min floor tile making machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

40 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

Cellular Composite Roofing Sheet Making Machine 3.0" Width 0.8-2.0MM Thickness

بهترین قیمت رو بدست بیار

ویدئو

13 Rows Roof Tile Roll Forming Machine For Tipo Teja Americana Normal Tile

بهترین قیمت رو بدست بیار

ویدئو

Decking Flooring Board 1.2mm Floor Tile Making Machine

بهترین قیمت رو بدست بیار

ویدئو

45 Steel Deck Roll Forming Machine Cold ±2mm Cutting Tolerance Excellent Performance

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

High Quality Steel Plate Deck Floor Tile Making Machine For European Market

1.High Quality Steel Plate Deck Floor Tile Making Machine For European Market

---- We adopted a no stop cutting system to enhance the machine running speed.
---- Hydraulc drive motor provide strength power to make the machine running fast.
---- High precision machining parts ensure machine's high speed.
---- Good service let you no any trouble.

2. High Quality Steel Plate Deck Floor Tile Making Machine For European Market parameters:

Specification

Suitable Material	Material	GI, PPGI, PPGL
	Width	1200 mm
	Thickness	0.8-1.2 mm
Material of rollers		High grade 45# forged steel, surface hard chromium plating
Rows of rollers		24 stations
Material of shafts		High grade 45# forged steel
Diameter of shafts		90mm
Material of cutting blade		Cr12 Heat Treatment
Speed		15-20 m/min
Side plate thickness		20 mm
Chain size		2 inch
Total power		22 kw
Voltage		380V 50HZ 3Phase
Appearance size (About)		12000mm1800mm1700mm
Weight(About)		13 tons
Length measurement		Encoder
Control mode		Delta PLC
Operating mode		Button +Delta Touch screen

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
