Name: Metal Floor Deck Cold Roll Forming Machine For Panel
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: عرشه کف
Price: 26,500.00 USD
Availability: InStock

خانه > محصولات > ماشین شکل گیری رول کف >

Metal Floor Deck Cold Roll Forming Machine For Panel

9m/min Cold Roll Forming Machine,Deck Cold Roll Forming Machine,PLC Control Cold Roll Forming Machine

Deck Cold Roll Forming Machine

PLC Control Cold Roll Forming Machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

FMS

گواهی:

ISO CE

شماره مدل:

عرشه کف

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

قیمت دستگاه رول فرمینگ عرشه کف اتوماتیک با کیفیت بالا

ابعاد (L*W*H):

15.5*2*1.5 متر

ماده شفت:

CR12

نوع کنترل:

سیستم PLC

قاب:

جوش داده شده با فولاد 400

وزن:

7500 کیلوگرم

ولتاژ:

380 ولت 50Hz 3Phases

ایجاد سرعت:

9 متر / دقیقه

عرض تغذیه:

1220 میلی متر

قدرت موتور دستگاه شکل دهی:

11.5 کیلووات * 2

برجسته کردن:

9m/min Cold Roll Forming Machine,Deck Cold Roll Forming Machine,PLC Control Cold Roll Forming Machine

Deck Cold Roll Forming Machine

PLC Control Cold Roll Forming Machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

40 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

Cellular Composite Roofing Sheet Making Machine 3.0" Width 0.8-2.0MM Thickness

بهترین قیمت رو بدست بیار

ویدئو

13 Rows Roof Tile Roll Forming Machine For Tipo Teja Americana Normal Tile

بهترین قیمت رو بدست بیار

ویدئو

Decking Flooring Board 1.2mm Floor Tile Making Machine

بهترین قیمت رو بدست بیار

ویدئو

45 Steel Deck Roll Forming Machine Cold ±2mm Cutting Tolerance Excellent Performance

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

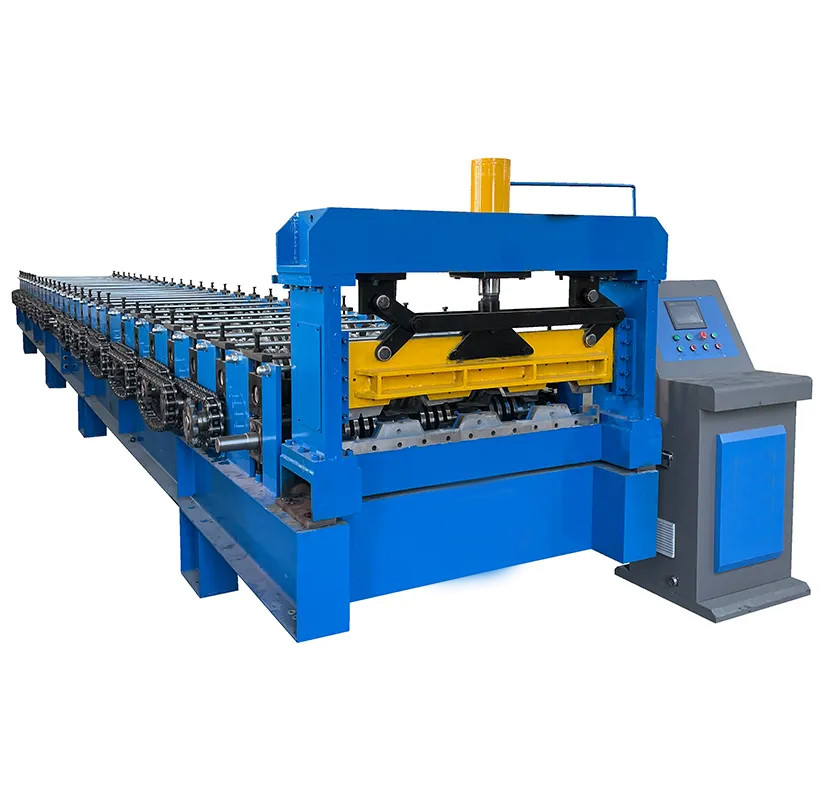

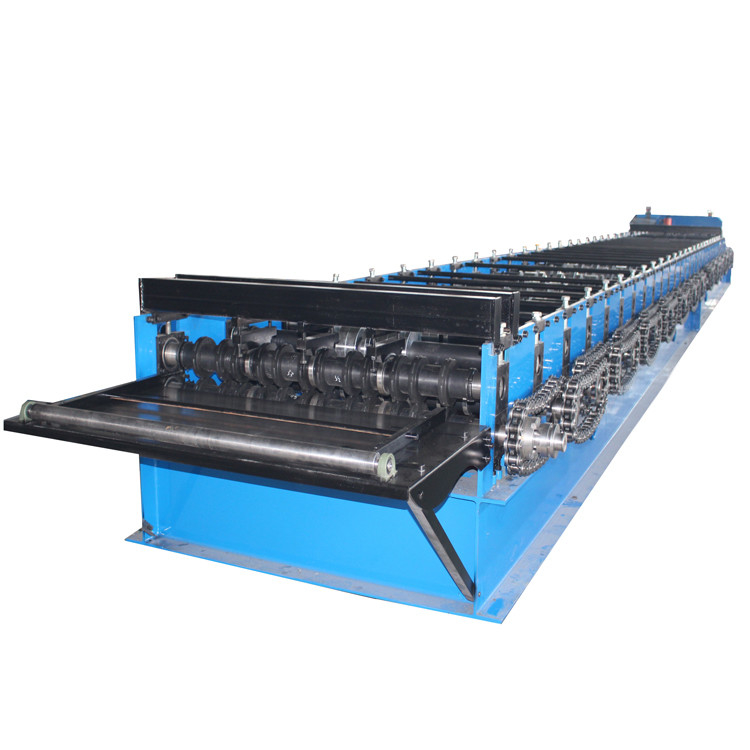

Metal Floor Deck Cold Roll Forming Machine For Sale Panel Roll Forming Machine

High Quality Automatic Floor Deck Roll Forming Machine Price

High Quality Automatic Floor Deck Roll Forming Machine Price.We can provide floor deck roll forming machine for building a big construction, we provide accuracy rollers to satisfy reinforced rib of floor deck, satisfy the customer’s requirement of hardness of floor deck, solve the problem of loading capacity of each floor.We equip 400 I Beam as the main structure of machine base, large loading capacity and stable structure, solve the problem of producing if workshop place isn’t flat.

Specification

Item	Name	Description
1	Decoiler	Capacity:5 tons
2	Material	Steel Coil
3	Thickness	0.6-1.2mm
4	Transmission	Chain/Gear/Gearbox
5	Speed	8-15m/min
6	Roller	Steel with quenched treatment,chromed on the surface
7	Shaft	steel with tempering treatment
8	Cutting type	Hydraulic cutting
9	Cutting material	Cr12 with quenched treatment Hardness58°-62°
10	Welding	Automatic spot welding
11	Control system	PLC
12	Electric brand	Delta,Siemens,Schneider
13	Voltage	380V,50HZ,3PH(or as customers' request)

Roll forming system
Rollers: design by senior engineers with Auto-cad software, manufactured with 45# high grade steel by CNC machine tools and coated with hard chrome;
Shaft: manufactured with 45# high grade steel by CNC machine tools;
Supporting frame: steel wallboard to guide the forming station bearing basement

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

ice:
a. If buyers visit our factory and check the machine, we will teach you how to install and use the roll forming machine for sale , and also train your workers/technician face to face.
b. Without visiting, we will send you user manual and video to teach you to install and operate.
c. If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
d. If there is any problem found of steel roof sheet roll forming machinery, we will repair roll forming machine for sale for free in one year

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.

Metal Floor Deck Cold Roll Forming Machine For Panel 0
