Plc Control Semicircle Ridge Cap Metal Roof Tile Roll Forming Machine Automatic

Metal Roof Tile Roll Forming Machine,Roof Tile Roll Forming Machine Automatic,Plc metal roof tile making machine

Roof Tile Roll Forming Machine Automatic

Plc metal roof tile making machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

FMS

گواهی:

ISO CE

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

دستگاه شکل دهی کاشی فلزی درپوش ریج

مواد خام:

گالوالوم، گالوانیزه، PPGI، آلومینیوم

ضخامت:

0.25-0.8 میلی متر

نوع کاشی:

کلاهک ریج

رنگ:

طبق درخواست مشتری

قدرت موتور:

4 کیلو وات

دقت برش:

± 2 میلی متر

مواد کاتر:

Cr12 Mov HRC 58-62

درجه اتوماسیون:

خودکار

ولتاژ:

3 فاز 380 ولت 50 هرتز یا طبق نیاز شما

برجسته کردن:

Metal Roof Tile Roll Forming Machine,Roof Tile Roll Forming Machine Automatic,Plc metal roof tile making machine

Roof Tile Roll Forming Machine Automatic

Plc metal roof tile making machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

40 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

6m Automatic Stacker for Roof Sheet Roll Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

the factory price for 0.3-0.8mm thickness Glazed Roof sheet forming machine

بهترین قیمت رو بدست بیار

ویدئو

2025 New Design for Glazed Roof Tile Roof Sheet Roll Forming Machine With 18 Rows

بهترین قیمت رو بدست بیار

ویدئو

4meter/Min Glazed Tile Roll Forming Machine With 18 Rows

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

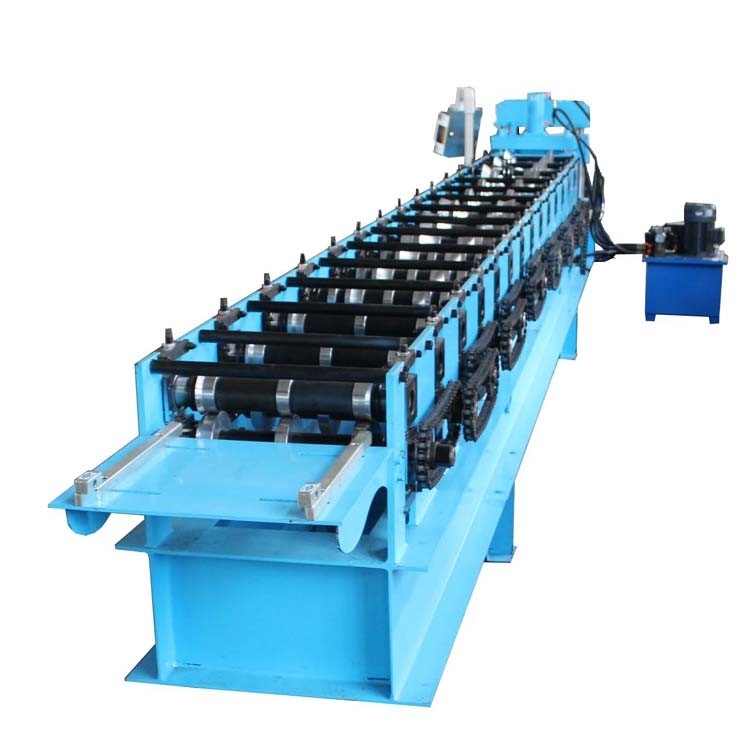

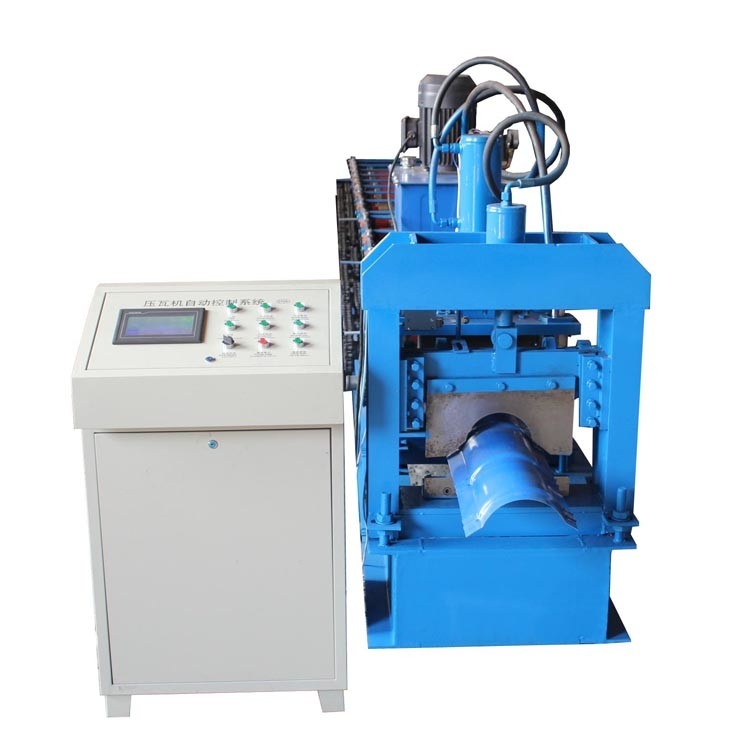

Plc Control Semicircle Ridge Cap Metal Roof Tile Roll Forming Machine Automatic

The Plc Control Semicircle Ridge Cap Metal Roof Tile Roll Forming Machine Automaticand is mainly used for colored roof tiles. The entire roll forming production line is composed of uncoiler (mainly composed of uncoiler and its base), gear rigging, rolling mill stand and main machine, pressurizing system, cutting equipment, hydraulic system, control system, and product support.

Specification

Material Thickness	0.3-0.8 mm
Working Speed	8-15 m/min
Frame	welded with 350H section steel
Material of Roller	45# steel quenching process and chrome coated
Material of Main Shaft	45 steel forged
Main Motor Power	4 KW
Electrical Hydraulic Station Power	3 KW
Hydraulic Station Pressure	12.0 Mpa
Material of Cutter	Cr12 Mov HRC 58-62
Driving Mode	Single chain 1 inch

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
