Product Description:

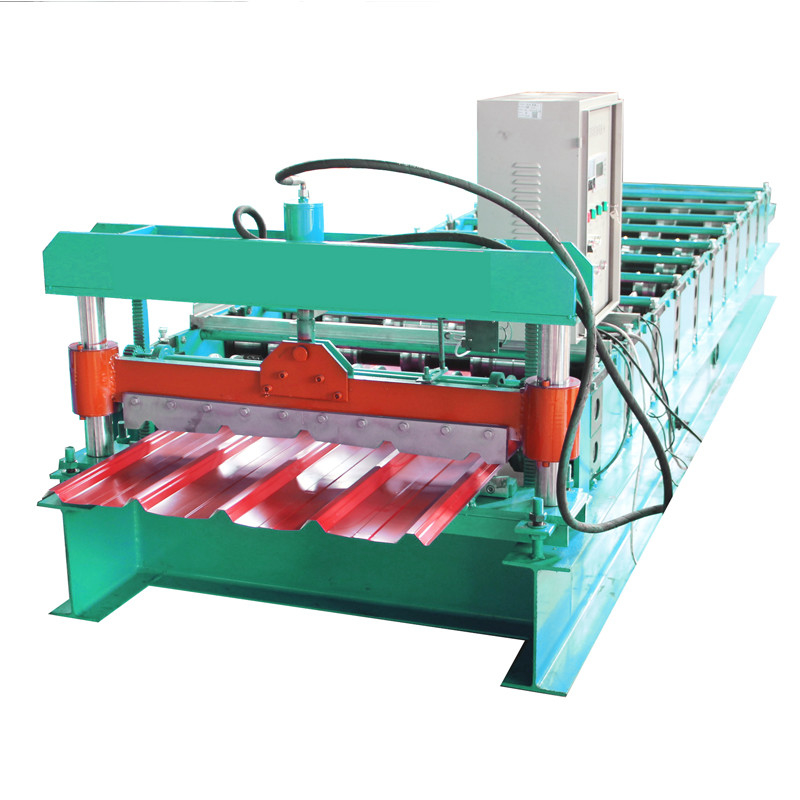

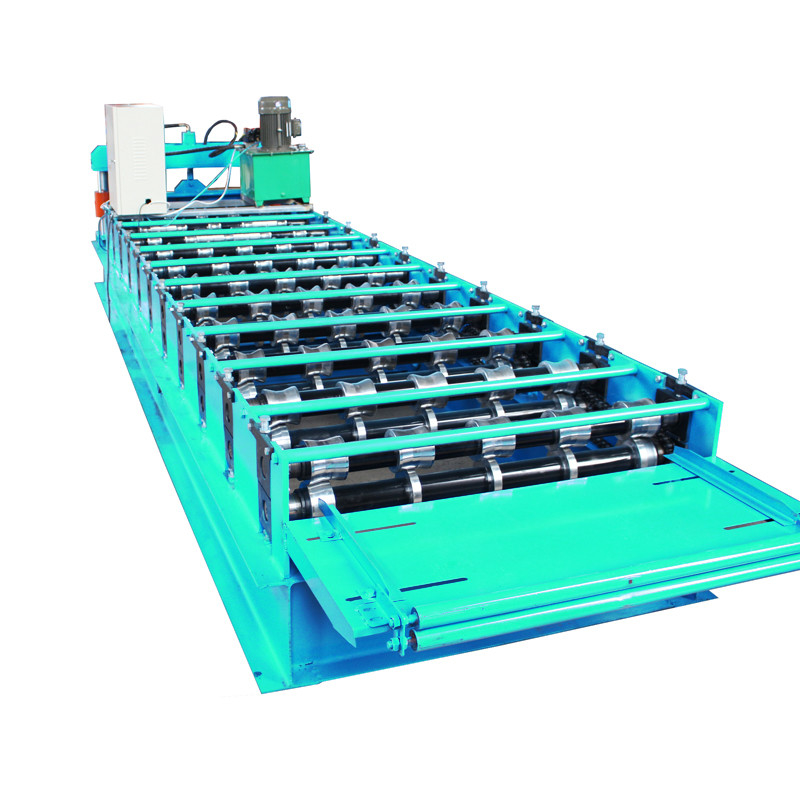

The Roof Tile Roll Forming Machine is a cold roll forming machine specifically designed for producing tile roofing sheets. It can process aluminum, galvanized steel, color steel and other materials of thickness ranging from 0.3 to 0.8mm. It offers superior cutting tolerance of up to ±2mm, and can produce tile roofing sheets with widths of 1000mm and 1250mm. It is equipped with a 70mm diameter shaft for better stability and output. The machine is highly reliable and ensures efficient production. It is the ideal choice for producing tile roofing sheets with superior accuracy and precision.
Features:
- Product Name: Color Metal Roof Tile Sheet Roll Forming Machine Ibr 840 Roofing Making Machinery
- Shaft Diameter: 70mm
- Material: Aluminum, Galvanized Steel, Color Steel, Etc.
- Cutting Tolerance: ±2mm
- Drive Mode: Chain Drive
- Width: 1000mm,1250mm.
- Keywords: roof metal sheet machine, roof roll forming machine, metal roof machine
Technical Parameters:
| Features |
Specifications |
| Cutting Tolerance |
±2mm |
| Forming Speed |
8-15m/min |
| Control System |
PLC Control System |
| Drive Mode |
Chain Drive |
| Shaft Diameter |
70mm |
| Cutting Mode |
Hydraulic Cutting |
| Voltage |
380V/50Hz/3Phase |
| Size |
5.8*1.6*1.5m |
| Weight |
3T |
| Width |
1000mm,1250mm |
| Machine Type |
Cold Roll Forming Machine, Tile Roofing Sheet Making Machine, Zinc Roofing Sheet Making Machine |
Applications:
The FMS roof tile roll forming machine is an advanced forming equipment for producing high-quality IBR roof sheet, glazed tile, metal roof tile and PVC roof tile. It is certified with CE, and the minimum order quantity is one set. With reasonable price and fast delivery, the roof tile roll forming machine is supplied with a capacity of 20 sets per month.
The FMS roof tile roll forming machine offers a wide range of sizes. It has a maximum width of 1000mm and 1250mm, and the forming speed is 8-15m/min. It is also equipped with 4KW power and PLC control system for easy operation. The voltage is 380V/50Hz/3Phase.
In addition, the FMS roof tile roll forming machine is packed with naked plastic film for protection. The payment terms are T/T, L/C, and it can be shipped to customers within 45 days.
The FMS roof tile roll forming machine is a reliable and cost-effective equipment for producing ibr roof sheet, glazed tile, metal roof tile and PVC roof tile. It is widely used in the construction industry and other related industries. It is a great choice for those looking for a high performance forming machine at an affordable price.
Customization:
Customized Roof Tile Roll Forming Machine services are available from FMS. Our roof tile roll forming machine, tile roofing sheet making machine, and roof roll forming machine are of the highest quality and have CE certification. Each set comes with 1 minimum order quantity and pricing is negotiable. We offer delivery in 45 days and accept payment via T/T, L/C. Our machines have a voltage of 380V/50Hz/3Phase, shaft diameter of 70mm, size of 5.8*1.6*1.5m, hydraulic cutting, and 11 roller stations. We can supply 20 sets/month. Packaging is done with naked plastic film.
Support and Services:
We offer technical support and services for our Roof Tile Roll Forming Machine. Our team of experienced engineers is available to assist you with any aspect of the machine, from installation to troubleshooting. We also provide ongoing maintenance and support, so you can rest assured that your machine will remain in top condition. Additionally, we offer training services to help you learn how to use the machine effectively and safely.
Packing and Shipping:
Packaging and Shipping for Roof Tile Roll Forming Machine:
The roof tile roll forming machine will be packaged in wooden cases, and shipped by truck, train, or sea.
FAQ:
Q1: What is the brand for the roof tile roll forming machine?
A1: The brand of the roof tile roll forming machine is FMS.
Q2: What is the model number for the roof tile roll forming machine?
A2: The model number for the roof tile roll forming machine is roof tile roll forming machine.
Q3: Where is the roof tile roll forming machine made?
A3: The roof tile roll forming machine is made in China.
Q4: Is the roof tile roll forming machine CE certified?
A4: Yes, the roof tile roll forming machine is CE certified.
Q5: What is the minimum order quantity for the roof tile roll forming machine?
A5: The minimum order quantity for the roof tile roll forming machine is 1 set.
