Name: Eps Side Panel Galvalume Roof Roll Forming Machine High Accuracy Hydraulic Post Cutting
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: پنل کناری EPS
Price: 28,000.00 USD
Availability: InStock

خانه > محصولات > دستگاه رول فرمینگ سقف >

Eps Side Panel Galvalume Roof Roll Forming Machine High Accuracy Hydraulic Post Cutting

Galvalume roof roll forming machine,high accuracy roof roll forming machine,low noise metal roll forming machine

high accuracy roof roll forming machine

low noise metal roll forming machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

FMS

گواهی:

ISO CE

شماره مدل:

پنل کناری EPS

با ما تماس بگیرید

درخواست قیمت

Eps Side Panel Galvalume Roof Roll Forming Machine High Accuracy Hydraulic Post Cutting

جزئیات محصول

نام محصول:

دستگاه شکل دهی رول پانل کناری EPS هیدرولیک با دقت بالا

مواد خام:

گالوالوم، گالوانیزه، PPGI، آلومینیوم

سیستم کنترل:

PLC

ضخامت:

0.3-0.8mm

نوع کاشی:

ماشین آلات رول فرمینگ/ماشین آلات مصالح ساختمانی

وضعیت:

جدید

رنگ:

طبق درخواست مشتری

قدرت موتور:

3.5 کیلو وات

عرض مواد خام:

1200

وزن ماشین:

2.9 تن

برجسته کردن:

Galvalume roof roll forming machine,high accuracy roof roll forming machine,low noise metal roll forming machine

high accuracy roof roll forming machine

low noise metal roll forming machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

40 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

25 مجموعه در هر ماه

محصولات مرتبط

ویدئو

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

بهترین قیمت رو بدست بیار

ویدئو

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

بهترین قیمت رو بدست بیار

ویدئو

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

هم اکنون تماس بگیرید

توضیح محصول

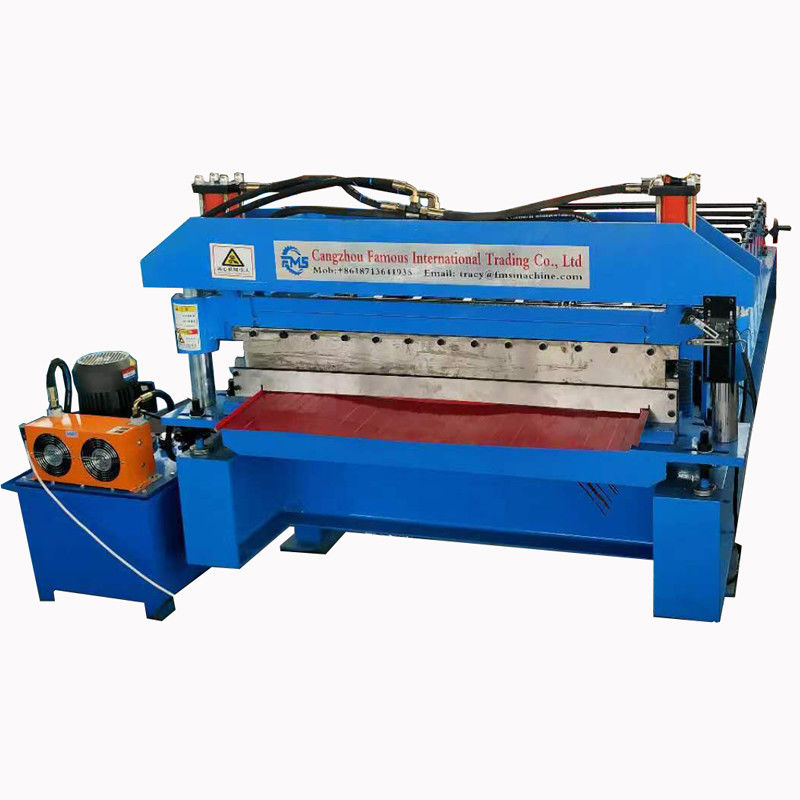

High Accuracy Hydraulic Post Cutting EPS Side Panel Roll Forming Machine

High Accuracy Hydraulic Post Cutting EPS Side Panel Roll Forming Machine is accompanied by the efficient integration of PLC control system,equip with hydraulic cutting system, and fully automatic post-shearing system. So as to efficiently meet the different needs of customers

the profile can be made according to customer requirement.

Specification

No.	Item	Description
1	Coil	Galvalume, Galvanized, PPGI, Aluminum
2	Raw Material Thickness	0.3-0.8mm
3	Working Speed	20-30 m/min ( not including the cutting time)

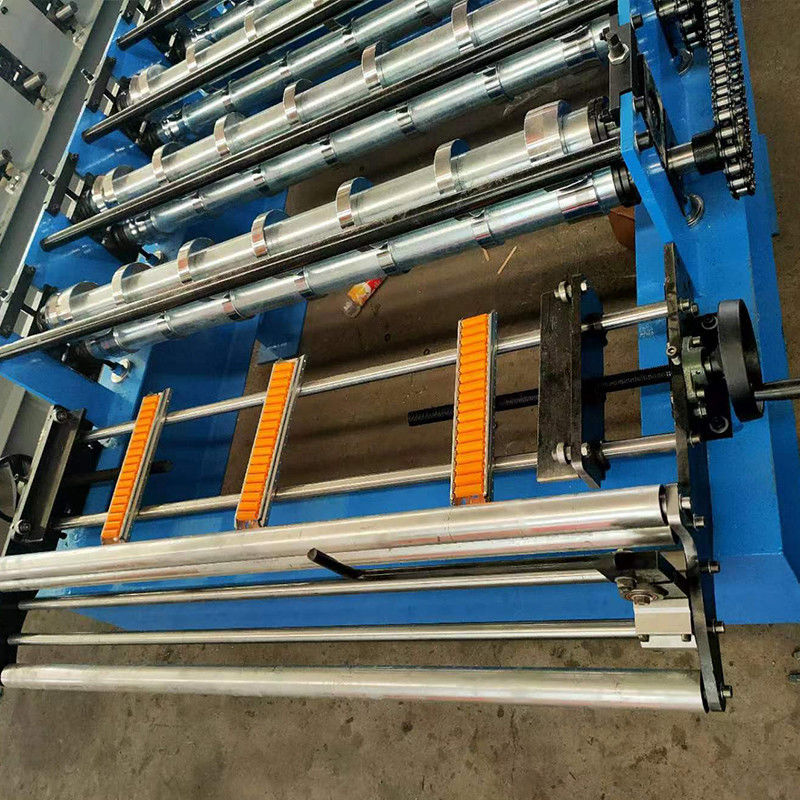

4	Roller Station	6 Row
5	Dimension (LWH)	3500 mm1200 mm1100 mm
6	Machine Weight	2900 KG

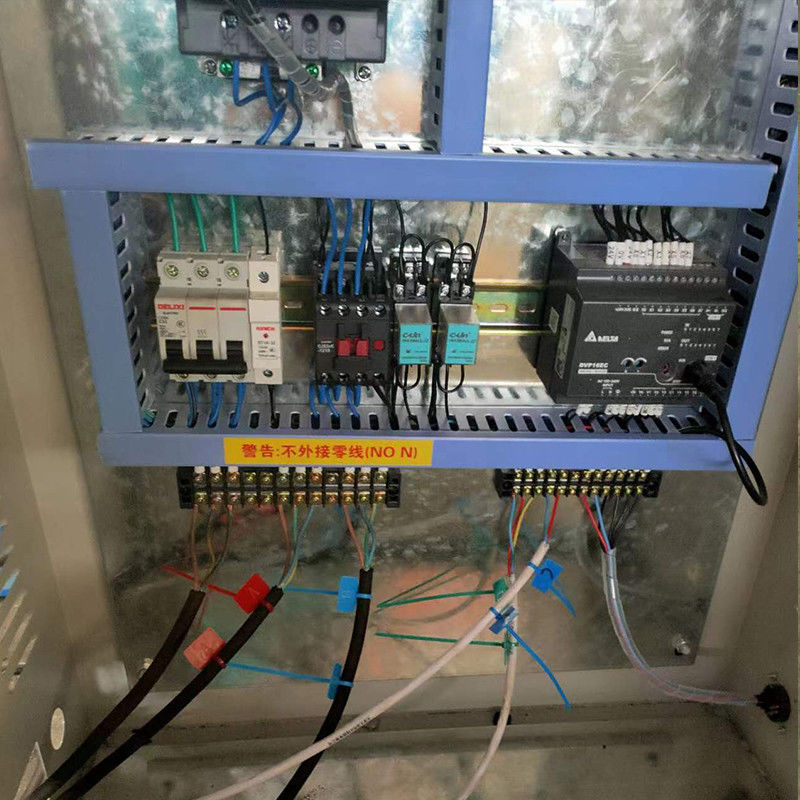

7	Electrical Control System	Delta PLC (can be customized)
8	Drive Motor Power	3.5KW

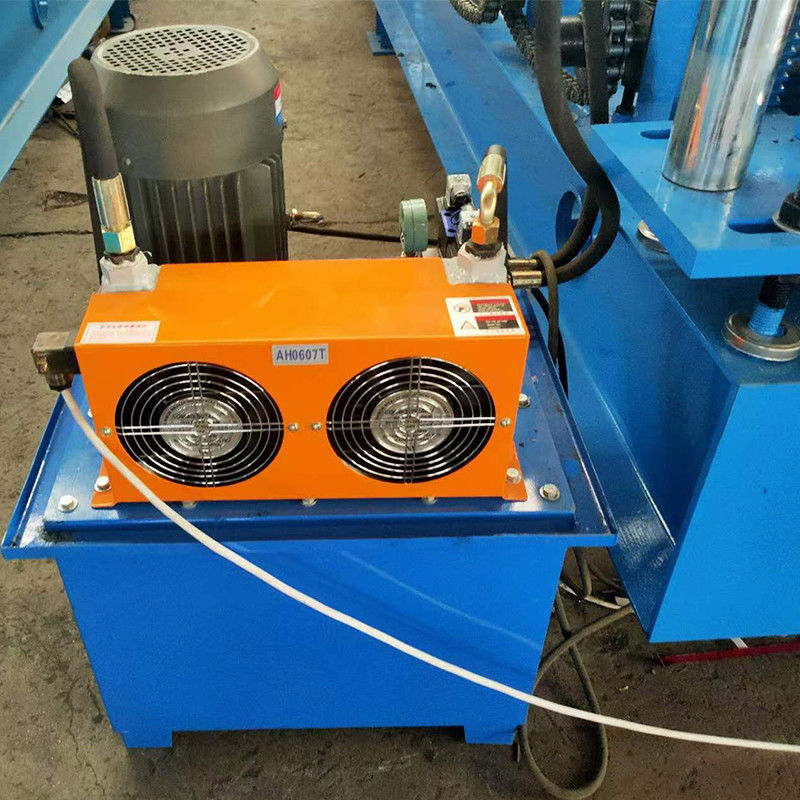

9	Hydraulic Station Power	3.5KW
10	Power Supply	380V, 60HZ, 3 PHASES(can be customized)
11	Cutting Accuracy	±2 mm
12	Driving Mode	Single Chain 1 inch
13	Material of Shaft	70 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Application

High Accuracy Hydraulic Post Cutting EPS Side Panel Roll Forming Machine is made side panel which is using for eps sandwich panel . due to it have good looking ,long service life ,high quality , it widely used in workshop wall and roofing , shopping mall wall and roofing , garage wall and roofing etc.

Advantage

The advantages of EPS side panel are good corrosion resistance, bright colors, beautiful appearance, convenient processing and forming, and have the advantages of the original strength of steel plates and low cost.
