Name: Plc Control Channel Roll Forming Machine Hydraulic Cutting
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: درب کرکره ای
Price: 12000.00 USD
Availability: InStock

خانه > محصولات > دستگاه رول فرمینگ درب کرکره ای >

Plc Control Channel Roll Forming Machine Hydraulic Cutting

plc control channel roll forming machine,hydraulic cutting channel roll forming machine,hydraulic cutting channel rolling machine

hydraulic cutting channel roll forming machine

hydraulic cutting channel rolling machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

CANGZHOU FMS

گواهی:

ISO CE

شماره مدل:

درب کرکره ای

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

پانل درب ساخت ماشین آلات کرکره نورد غلتکی ماشین

سرعت:

15 متر در دقیقه

ولتاژ:

380 ولت 50 هرتز 3 فاز یا سفارشی سازی

مواد برش:

45# فولاد آهنگری آبکاری شده با کروم سخت

اجزای اصلی:

موتور، بلبرینگ، دنده، پمپ، PLC

قدرت:

3kw/5.5kw

سیستم کنترل:

PLC

وزن:

1500 کیلوگرم

برجسته کردن:

plc control channel roll forming machine,hydraulic cutting channel roll forming machine,hydraulic cutting channel rolling machine

hydraulic cutting channel roll forming machine

hydraulic cutting channel rolling machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

20 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

Metal Chain Driving Shutter Door Roll Forming Machine Speed 20-30m/Min

بهترین قیمت رو بدست بیار

ویدئو

Customized High Speed PU Door Roller Shutter Roll Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

3T Shutter Door Roll Forming Machine For 0.8-1.2mm Thickness And 6.5m0.95m1.2m Size

بهترین قیمت رو بدست بیار

ویدئو

45 Steel Roller Material Shutter Door Roll Forming Machine with 7.5KW PLC Control System

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

هم اکنون تماس بگیرید

توضیح محصول

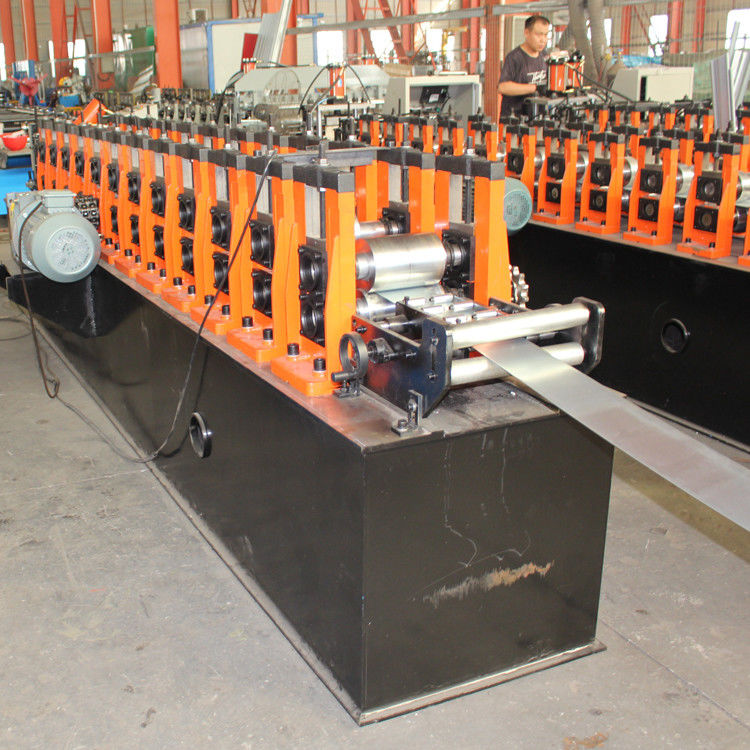

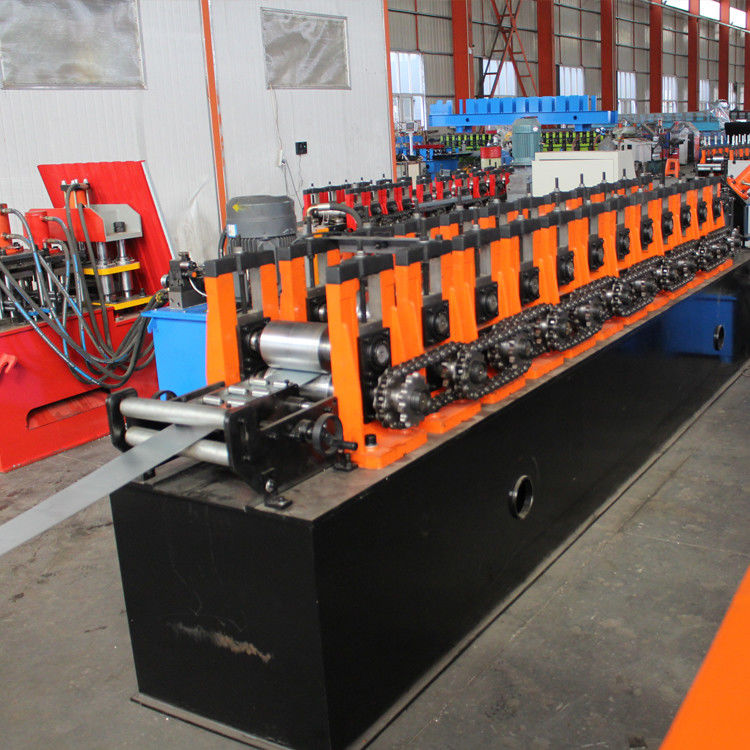

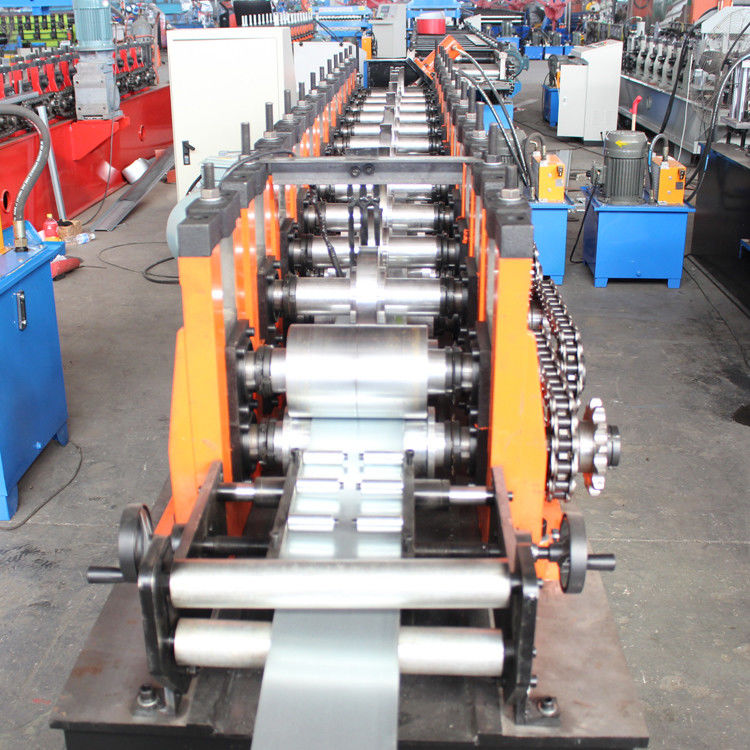

Roller shutter channel U shape channel roll forming machine

the product produce by this machine using for built shutter door system. it works at the side of shutter slat. the channel deep can be adjusted according to customer requested. we also make shutter door slat roll forming machine ,shutter door slat bottom machine to composition the whole shutter door system.

Specification

No	Item	Specification
Material	Raw material	GI or PPGI
	Material thickness	0.7-1.2MM
Machine body	Roller material	High grade 45# steel with Cr12 quenched
	Shaft material	High grade 45# steel with Cr12 quenched
	Shaft diameter	50mm
	Roller stations	14
	Middle plate thickness	16mm
	Machine size	50.81.2m
	Productivity	8-15m/min

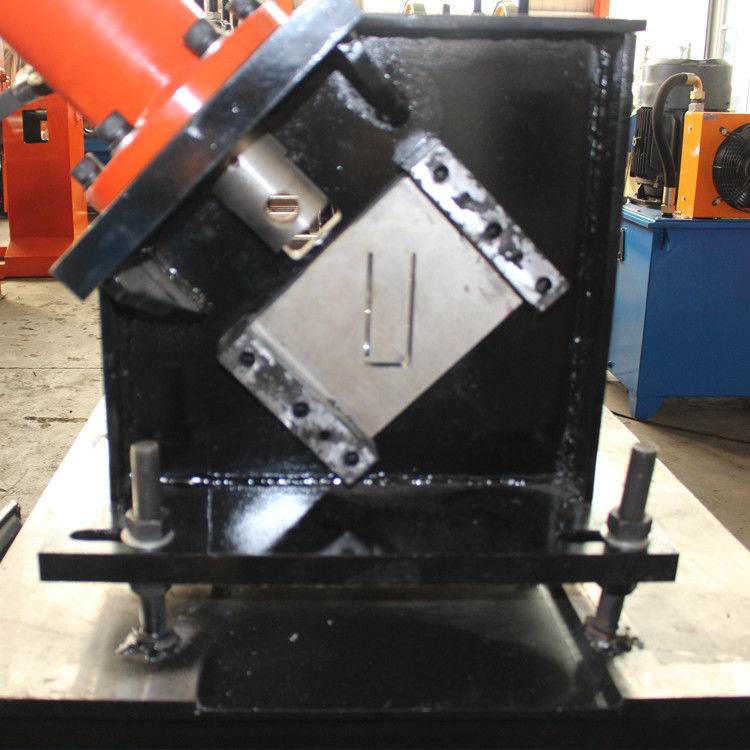

Cutter	Material	GCR12

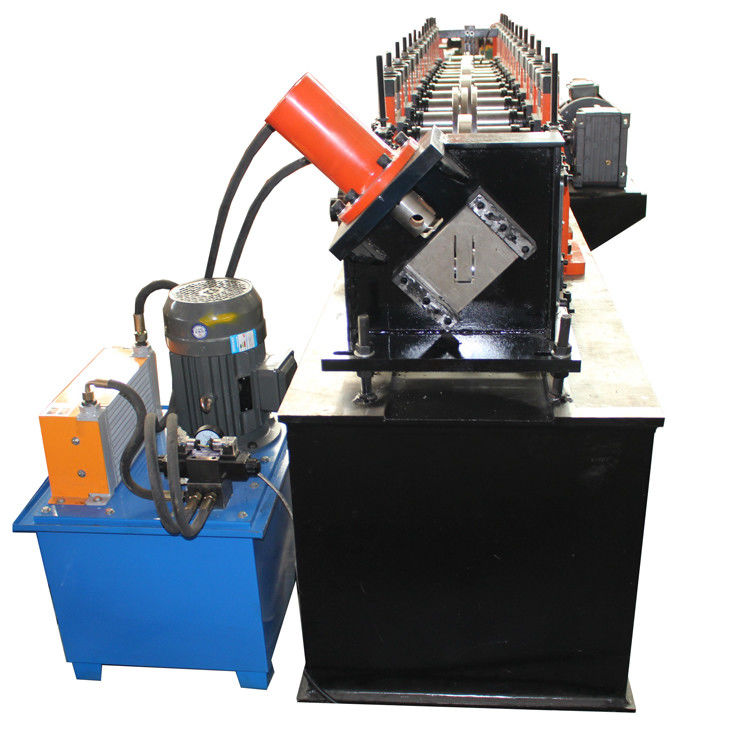

	Method	Hydraulic cutting
Power	Driving way	Chain 1.2 inch
	Motor	4KW
	Hydraulic oil pump	3KW
	Voltage	380V,50HZ ,3 phase or customized as your need

Plc Control Channel Roll Forming Machine Hydraulic Cutting 0

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
