Name: Metal Steel Sheet Floor Deck Roll Forming Machine Cold 20m/Min 380v50hz
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: عرشه کف
Price: 26,500.00 USD
Availability: InStock

خانه > محصولات > ماشین شکل گیری رول کف >

Metal Steel Sheet Floor Deck Roll Forming Machine Cold 20m/Min 380v50hz

380v50hz floor deck roll forming machine,20m/min floor deck roll forming machine,plc floor deck forming machine

20m/min floor deck roll forming machine

plc floor deck forming machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

FMS

گواهی:

ISO CE

شماره مدل:

عرشه کف

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

دستگاه شکل دهی رول عرشه کف ورق فلزی فلزی شکل گیری رول سرد

برش مواد تیغه:

CR12 خاموش شد

قاب ماشین:

فولاد 400H یا 450H

ماده شفت:

درجه عالی No.45 فورج

وزن:

10000 کیلوگرم

ولتاژ:

3 فاز 380 ولت 50 هرتز

ظرفیت تولید:

15-20 متر در دقیقه

ساختار دیواره جانبی:

20 میلی متر

رنگ:

رنگ آبی

برجسته کردن:

380v50hz floor deck roll forming machine,20m/min floor deck roll forming machine,plc floor deck forming machine

20m/min floor deck roll forming machine

plc floor deck forming machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

40 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

Cellular Composite Roofing Sheet Making Machine 3.0" Width 0.8-2.0MM Thickness

بهترین قیمت رو بدست بیار

ویدئو

13 Rows Roof Tile Roll Forming Machine For Tipo Teja Americana Normal Tile

بهترین قیمت رو بدست بیار

ویدئو

Decking Flooring Board 1.2mm Floor Tile Making Machine

بهترین قیمت رو بدست بیار

ویدئو

45 Steel Deck Roll Forming Machine Cold ±2mm Cutting Tolerance Excellent Performance

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

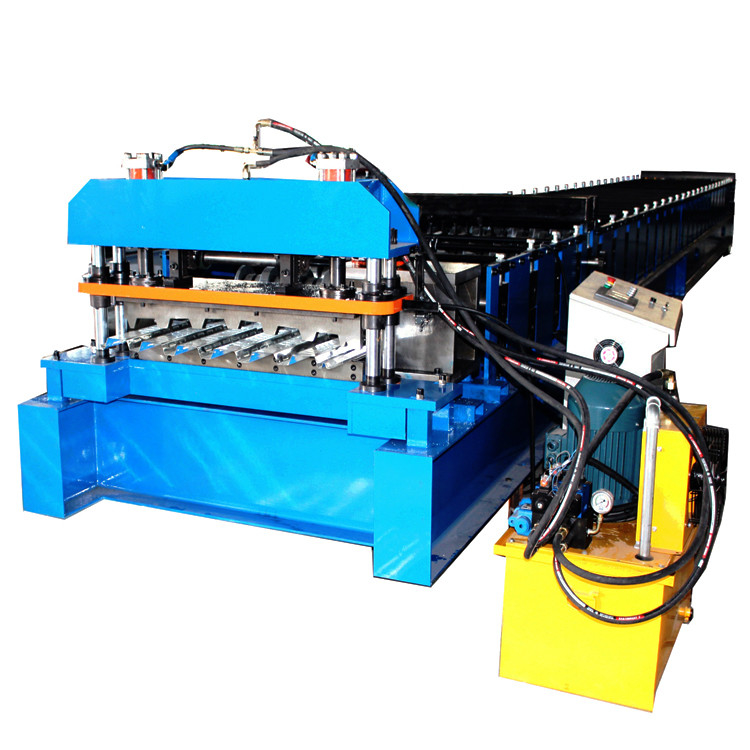

Metal Steel Sheet Floor Deck Roll Forming Machine Cold Roll Forming

Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)

The advantage of glazed steel sheet includes beautiful, classical appearance and grace taste. It is widely used in village, hotel, exhibition, vacation village, family construction and outdoor decorating. The floor deck roll forming machine can form the flat sheet into a customized shape, the raw amterial is gi,ppgi,color steel.

Specification

floor decking roll forming Machine Specifications
Weight	About 2.5tons
Size	About 12.5mx1.5mx1.3m(length x width x height)
Color	Machine Main color: blue or can as your requirement
Color	Warning color: yellow
Suitable Raw Material
Material	Galvanized Steel Coils,color steel
Thickness	0.8-1.5mm
Yield Strength	235Mpa
Main Technical Parameters
Quantity of forming rollers stations	19stations
Diameter of forming rollers shafts	75mm
Roll Forming Speed	15-20m/min
Forming rollers material	No.45 steel, coated with chromed treatment
Cutter material	CR12 mould steel, with quenched treatment
Controlling system	PLC and Converter
Electric Power requirement	Main motor power: 13.5kw+13.5kw
Electric Power requirement	Hydraulic unit motor power: 5.5kw
Electric voltage	According to customer’s requirement

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.

Metal Steel Sheet Floor Deck Roll Forming Machine Cold 20m/Min 380v50hz 0
In correct operation & maintaining, the machine is guaranteed for one year since leaving our factory excludes the electric elements.
Installation:
If installation is needed, WE will dispatch a technician to the buyer's factory abroad to assist regulating the machine with charge free.
The buyer should assist US to get the Chinese technician's visa and should pay for the roundtrip air ticket and the local accommodation.
If installation is needed, the buyer shall make the following preparation before arrival of technicians.
