Name: Automatic Steel Coil Decoiler Hydraulic With Coil Car 5 Ton 7 Ton 10 Ton
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: دیکویلر هیدرولیک-5T-7T-10T
Price: 40,000.20 USD
Availability: InStock

خانه > محصولات > اجزای دستگاه رول فرمینگ >

Automatic Steel Coil Decoiler Hydraulic With Coil Car 5 Ton 7 Ton 10 Ton

automatic steel coil decoiler hydraulic,5 ton steel coil decoiler

5 ton steel coil decoiler

محل منبع:

سرزمین اصلی چین

نام تجاری:

FMS

گواهی:

ISO, CE

شماره مدل:

دیکویلر هیدرولیک-5T-7T-10T

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

دکویل هیدرولیک کویل اتوماتیک

وزن بارگیری:

5T، 7T، 10T

سرعت:

0-30 میلیون در دقیقه

قدرت موتور اصلی:

4 کیلو وات

ویژگی ها:

دستگاه سیم پیچ فولادی

نکات کلیدی فروش:

آسان برای کار کردن

نیروگاه ایستگاه هیدرولیک:

3 کیلو وات

وزن:

حدود 1000 کیلوگرم

برجسته کردن:

automatic steel coil decoiler hydraulic,5 ton steel coil decoiler

5 ton steel coil decoiler

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

برهنه با فیلم پلاستیکی

زمان تحویل

7 روز کاری

شرایط پرداخت

T/T ، Western Union ، MoneyGram

قابلیت ارائه

20 مجموعه ماهانه

محصولات مرتبط

ویدئو

Cast Steel Grip Metal Roof Sheet Cutters Red Green Portable Safe Operation

بهترین قیمت رو بدست بیار

ویدئو

Stone Coat Cleo Metal Tile Roofing Sheets Corrosion Resistant High Strength

بهترین قیمت رو بدست بیار

ویدئو

High Strength Stone Coated Metal Roof Shingles Anti Rust Long Life Span

بهترین قیمت رو بدست بیار

ویدئو

0.2mm Stone Coated Metal Roofing Tiles 16.5 Inch X 50 Inch

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

هم اکنون تماس بگیرید

توضیح محصول

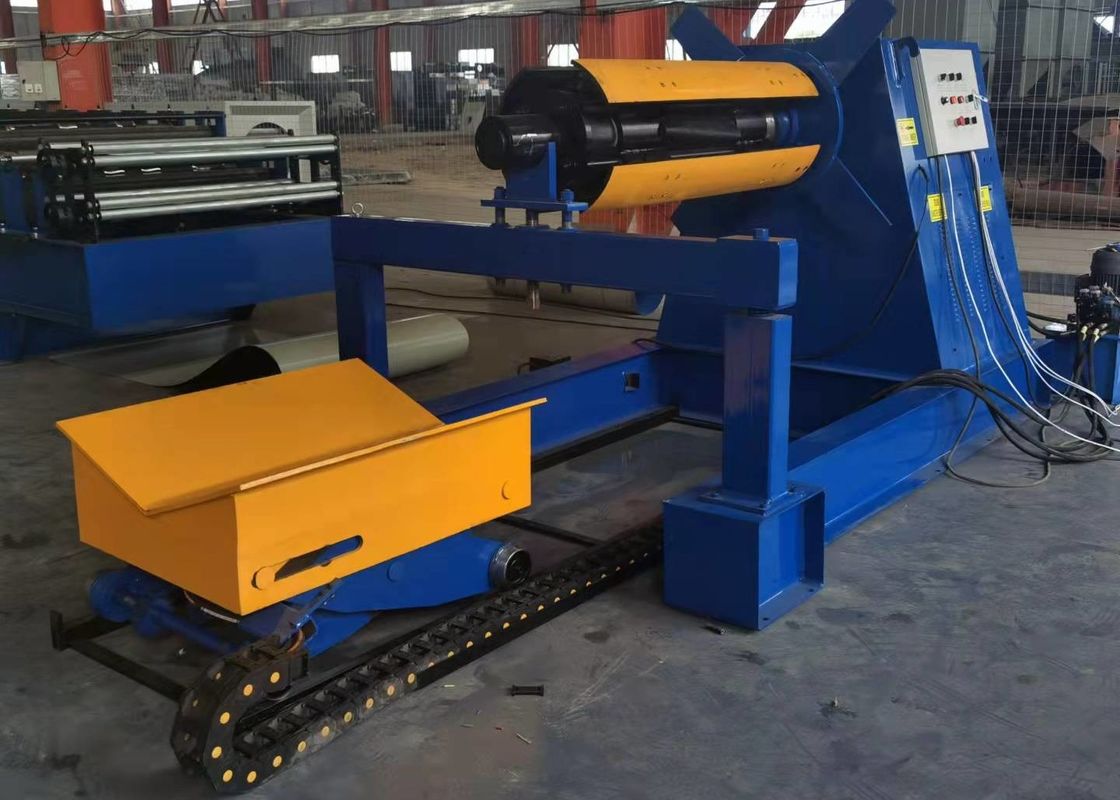

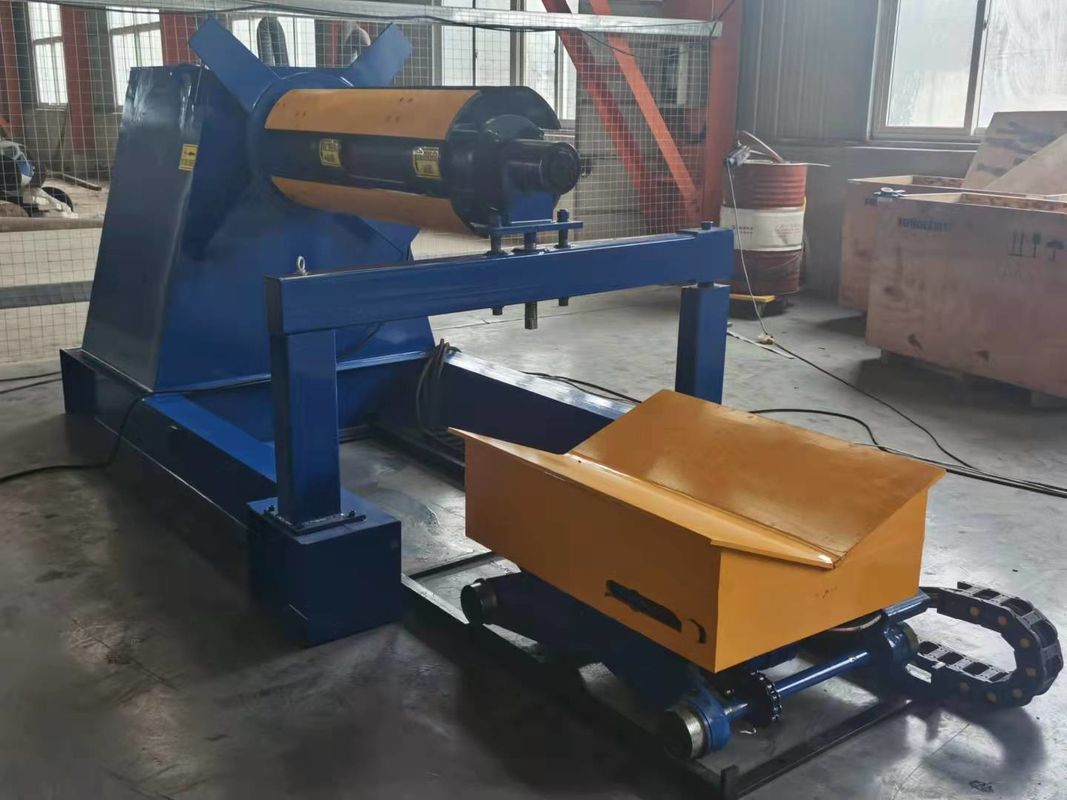

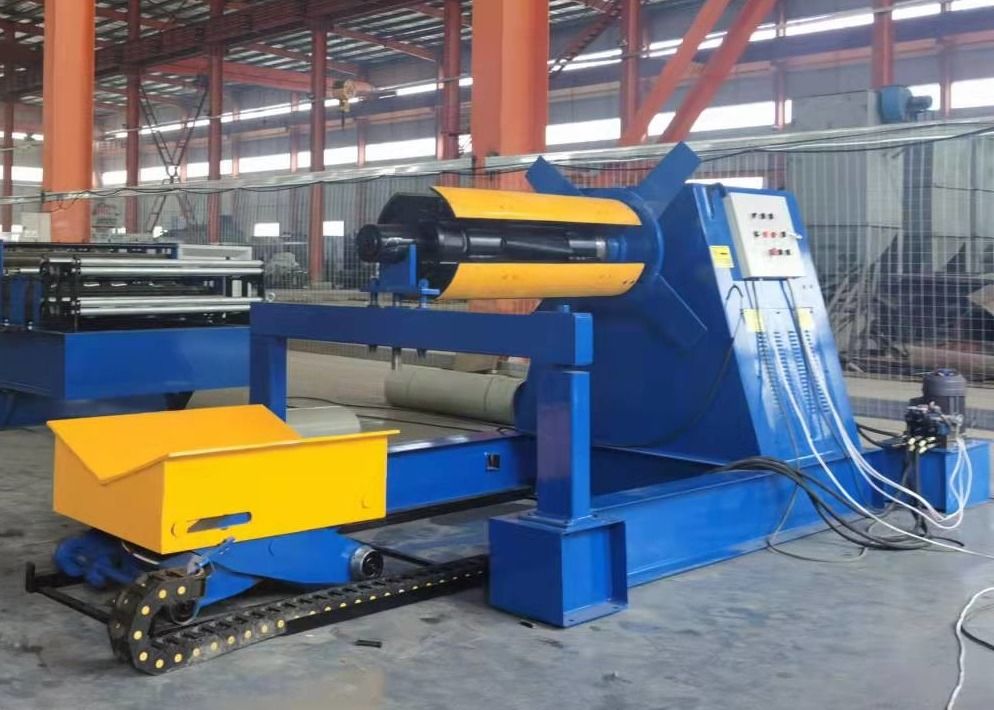

Automatic Steel Coil Hydraulic Decoiler with Coil Car 5ton, 7ton,10ton

Automatic Steel Coil Hydraulic Decoiler is used to decoil the steel coil during the roll forming or cut to length process. We can supply the decoiler which capacity of 5 tons, 7 tons and 10 tons, also with coil car or without coil car.

Technique Parameters of the decoiler

Decoil type	hydraulic tense, motor-driven decoiler
Decoil motor power	3KW(5T)
Hydraulic station power	3kw(5t), with 3 electromagnetic valves
Fram:	welded with 300H steel and 25mm thickness steel plate
Supporting spindle	made of thick-walled seamless steel pipe, shaft diameter 230mm*65mm
Auxiliary support	add a manual support frame in front of the host
Max. steel coil width	0-1250mm
Steel coil inner diameter	φ470mm - 530mm
Steel coil external diameter	maxφ1200mm
Control voltage	3 phase, 240V, 50HZ

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 20 days after the down payment is received.

Automatic Steel Coil Decoiler Hydraulic With Coil Car 5 Ton 7 Ton 10 Ton 0

Automatic Steel Coil Decoiler Hydraulic With Coil Car 5 Ton 7 Ton 10 Ton 1

Automatic Steel Coil Decoiler Hydraulic With Coil Car 5 Ton 7 Ton 10 Ton 2
