Name: Automatic Roll Forming Machine For Perforated Type Cable Tray Cover And Bottom
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: سینی کابل
Price: 32,500.00 USD
Availability: InStock

خانه > محصولات > CZ Purlin Roll Forming Machine >

Automatic Roll Forming Machine For Perforated Type Cable Tray Cover And Bottom

90mm automatic roll forming machine,cable tray automatic roll forming machine,perforated type cable tray roll former

cable tray automatic roll forming machine

perforated type cable tray roll former

محل منبع:

چین

نام تجاری:

FMS

گواهی:

شماره مدل:

سینی کابل

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

اندازه قابل تغییر پروفیل سینی کابل رول فرمینگ ماشین PLC کنترل

عرض نمایه:

90-600 میلی متر

ارتفاع پروفایل:

50-100 میلی متر

ولتاژ:

380V 50Hz 3PH طبق درخواست

موتور اصلی:

7.5 کیلو وات

ضخامت مواد:

کویل های گالوانیزه 1.0-2.0mm

اتهام اتوماسیون:

خودکار

ماده غلتکی:

فولاد فورج 45#

اندازه طول دستگاه:

11000 میلی متر * عرض 800 میلی متر * ارتفاع 1000 متر

برجسته کردن:

90mm automatic roll forming machine,cable tray automatic roll forming machine,perforated type cable tray roll former

cable tray automatic roll forming machine

perforated type cable tray roll former

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

دستگاه اصلی برهنه است، جعبه کنترل کامپیوتر توسط پلاستیک بسته بندی شده است.

زمان تحویل

30 روز

شرایط پرداخت

T/T ، Western Union ، L/C

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

High Efficiency CZ Purlin Roll Forming Machine with 45# Steel Rollers and High Straightness for Construction

بهترین قیمت رو بدست بیار

ویدئو

Full Automatic CZ Purlin Roll Forming Machine with High Straight Level Crush Resistance and 1.5-3MM Thickness for Industrial Buildings

بهترین قیمت رو بدست بیار

ویدئو

CZ Purlin Roll Forming Machine with 18 Station Rollers, 380V/50HZ/3Phase Voltage and Cr12Mov Cutting Blade for High Efficiency

بهترین قیمت رو بدست بیار

ویدئو

CZ Purlin Roll Forming Machine with 700014001500mm Size 8-12m/min Forming Speed and 1.5-3.0mm Thickness for Galvanized Steel

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

هم اکنون تماس بگیرید

توضیح محصول

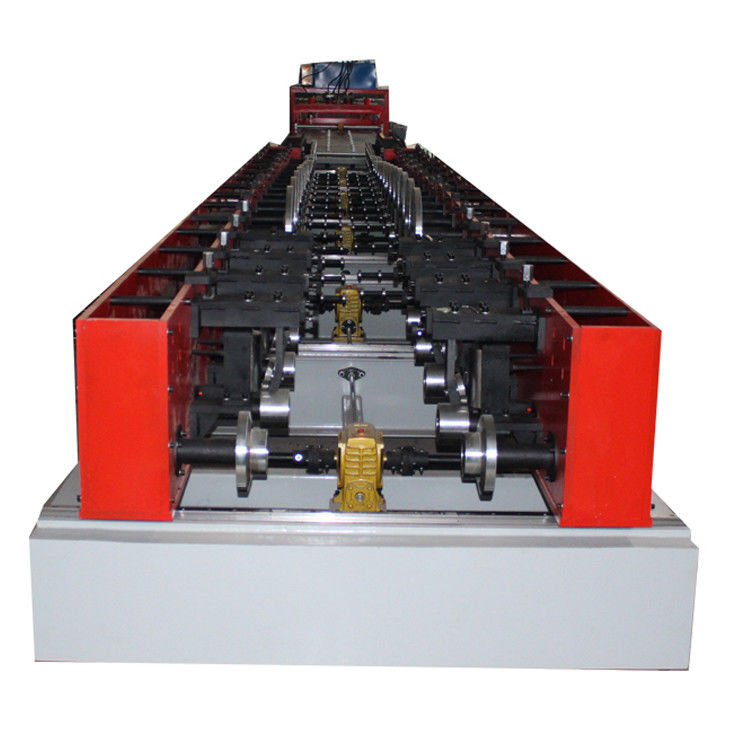

Automatic Perforated Type Cable Tray cover and bottom roll forming machine

With more than ten years of experience, Cangzhou famous has reached international manufacturing standards, and its machines are attracting customers all over the world.

With powerful technology, advanced equipment, and high standards, the shutter door bottom machine meets most customers' requirements.

The machine is equipped with an auto feeding system, an accurate counting system, a hydraulic shearing system, and a PLC control system, which makes it stable and long lasting.

specifications

Material Spec	colored steel sheet, galvanized steel sheet
main motor power	7.5 kw
forming speed	10-15m/min
Diameter of roller	70 millimeter
Thickness of Coil Sheet	0.3-0.8 millimeter
the width of the colored sheet	as per requested
the effective of steel sheet	as per requested.
Hydraulic station pressure	3 kw
Hydraulic pressure	10 - 12Mpa
Total Weight	about 5500 kg
Voltage	380 volt/3PH as per requested
Roll stand	22 Roller station
PLC	overseas Brand
Dimension	11.4m1.3m1.2m
Roller material	#45 steel
Frequency converter	containing
Computer operating screen	touch screen
Material of cutter	Cr12

Application

Cable tray is used to support and protect when wire electricity, electric power, communication control and instrumentation cable.
FMS compose this machinery as a cassette replacement type or automatic width control type in accordance with product.
And we supply equipment that is suitably designed for the use of product which can be formed after perforating a partition and other panels.

We promise to offer you the highest quality, the lowest price, the fastest delivery, and the best customer service. Our goal is to be your best supplier and business partner.

Payment terms and Delivery

40% in advance as down payment
60% is paid before the shipment is processed
FOB: Tianjin Xingang Port
The Delivery Time: 90 days after the down payment is received.
