Name: Full Automatic Perforated Type Cable Tray Production Line 380v50hz
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: سینی کابل
Price: 32,500.00 USD
Availability: InStock

خانه > محصولات > CZ Purlin Roll Forming Machine >

Full Automatic Perforated Type Cable Tray Production Line 380v50hz

perforated type cable tray production line,380v50hz cable tray production line,fullautomatic cable tray roll forming machine

380v50hz cable tray production line

fullautomatic cable tray roll forming machine

محل منبع:

چین

نام تجاری:

FMS

گواهی:

شماره مدل:

سینی کابل

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

دستگاه شکل دهی رول سینی کابل نوع خط تولید اتوماتیک سوراخ دار

عرض نمایه:

90-600 میلی متر

ارتفاع پروفایل:

50-100 میلی متر

ولتاژ:

380V50Hz 3PH طبق درخواست

موتور اصلی:

7.5 کیلو وات

ضخامت مواد:

کویل های گالوانیزه 1.0-2.1 میلی متر

اتهام اتوماسیون:

خودکار

ماده غلتکی:

فولاد فورج 45#

اندازه طول دستگاه:

13000 میلی متر * عرض 800 میلی متر * ارتفاع 1000 متر

برجسته کردن:

perforated type cable tray production line,380v50hz cable tray production line,fullautomatic cable tray roll forming machine

380v50hz cable tray production line

fullautomatic cable tray roll forming machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

دستگاه اصلی برهنه است، جعبه کنترل کامپیوتر توسط پلاستیک بسته بندی شده است.

زمان تحویل

30 روز

شرایط پرداخت

T/T ، Western Union ، L/C

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

High Efficiency CZ Purlin Roll Forming Machine with 45# Steel Rollers and High Straightness for Construction

بهترین قیمت رو بدست بیار

ویدئو

Full Automatic CZ Purlin Roll Forming Machine with High Straight Level Crush Resistance and 1.5-3MM Thickness for Industrial Buildings

بهترین قیمت رو بدست بیار

ویدئو

CZ Purlin Roll Forming Machine with 18 Station Rollers, 380V/50HZ/3Phase Voltage and Cr12Mov Cutting Blade for High Efficiency

بهترین قیمت رو بدست بیار

ویدئو

CZ Purlin Roll Forming Machine with 700014001500mm Size 8-12m/min Forming Speed and 1.5-3.0mm Thickness for Galvanized Steel

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

Full Automatic Production Line Perforated Type Cable Tray Roll Forming Machine

Ventilated tray is made of ladder side,bottom plate and cross arm.they are made of profiles materials. The length of the standard is 2m per session. Long-span distance is 6m per session.

Profile material are made of aluminium alloy& stainless steel& Galvanized steel.
Main cable ladders range are designed to be a cost effective cable support system for high volumes of heavy weight cables. they can support very high loads, over long spans and provide cable laying depths from 200 up to 800 mm.

specifications

Material Spec	colored steel sheet, galvanized steel sheet
main motor power	7.5 kw
forming speed	10-15m/min
Diameter of roller	70 millimeter
Thickness of Coil Sheet	0.3-0.8 millimeter
the width of the colored sheet	as per requested
the effective of steel sheet	as per requested.
Hydraulic station pressure	3 kw
Hydraulic pressure	10 - 12Mpa
Total Weight	about 5500 kg
Voltage	380 volt/3PH as per requested
Roll stand	22 Roller station
PLC	overseas Brand
Dimension	11.4m1.3m1.2m
Roller material	#45 steel
Frequency converter	containing
Computer operating screen	touch screen
Material of cutter	Cr12

Application

Cable tray is used to support and protect when wire electricity, electric power, communication control and instrumentation cable.
FMS compose this machinery as a cassette replacement type or automatic width control type in accordance with product.
And we supply equipment that is suitably designed for the use of product which can be formed after perforating a partition and other panels.

Advantage

1. Full automatic steel cable tray production line.
2. As a manufacturer, we could delivery more faster, 10days for a 20ft container.
3. Competitive price, comparing with the distributor and warehouse, we are more cheaper.
4. Faster and effective solution to problem.
5. Using PLC control system for cutting the sizing products.

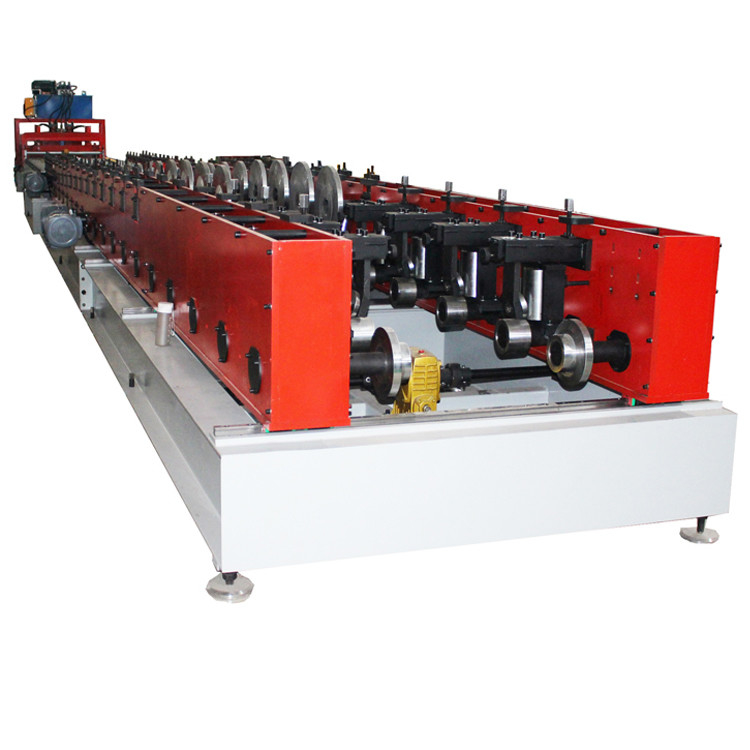

Full Automatic Perforated Type Cable Tray Production Line 380v50hz 0
