Name: 840mm Trapezoid Type Tile Forming Machine Hydraulic Cutting
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: IBR 840
Price: 28,000.00 USD
Availability: InStock

خانه > محصولات > دستگاه رول فرمینگ سقف >

840mm Trapezoid Type Tile Forming Machine Hydraulic Cutting

840mm tile forming machine,hydraulic cutting tile forming machine,840mm roof tile making machine

hydraulic cutting tile forming machine

840mm roof tile making machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

CANGZHOU FMS

گواهی:

ISO CE

شماره مدل:

IBR 840

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

دستگاه شکل دهی کاشی نوع ذوزنقه ای 840 میلی متری برش هیدرولیک

مواد خام:

گالوالوم، گالوانیزه، PPGI، آلومینیوم

سیستم کنترل:

PLC

ضخامت:

0.25-0.8 میلی متر

نوع کاشی:

ماشین آلات رول فرمینگ/ماشین آلات مصالح ساختمانی

وضعیت:

جدید

رنگ:

طبق درخواست مشتری

قدرت موتور:

3.5 کیلو وات

عرض مواد خام:

1000 میلی متر

وزن ماشین:

3.15 T

برجسته کردن:

840mm tile forming machine,hydraulic cutting tile forming machine,840mm roof tile making machine

hydraulic cutting tile forming machine

840mm roof tile making machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

40 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

بهترین قیمت رو بدست بیار

ویدئو

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

بهترین قیمت رو بدست بیار

ویدئو

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

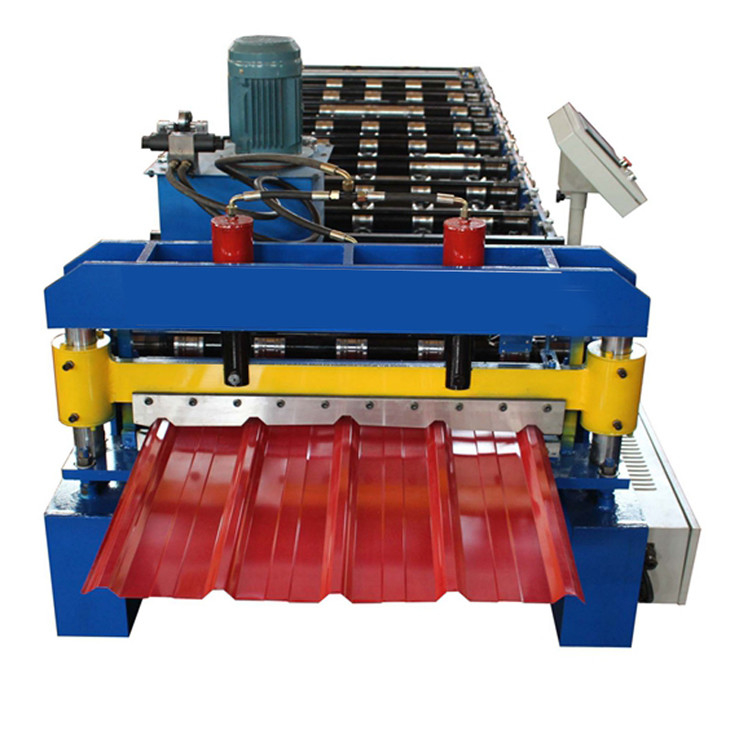

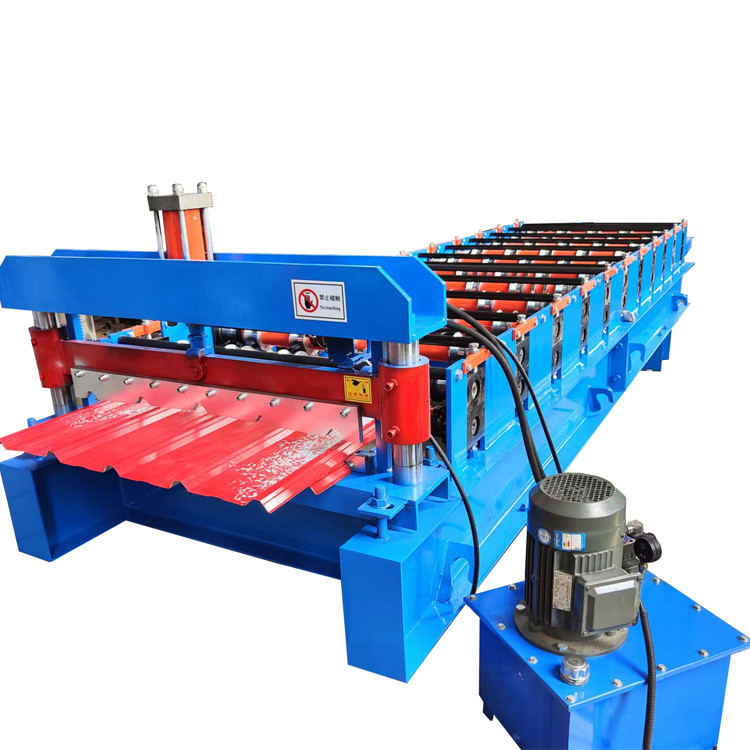

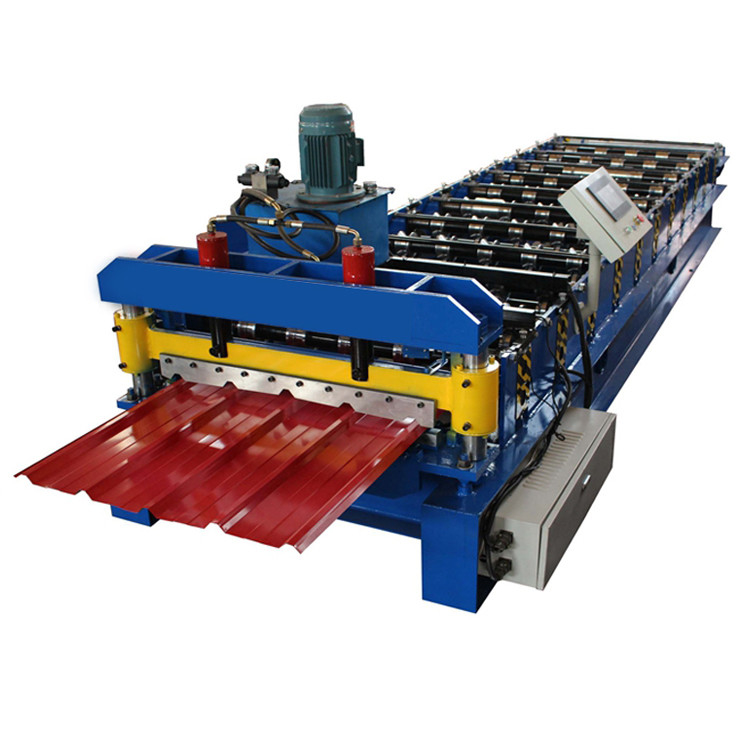

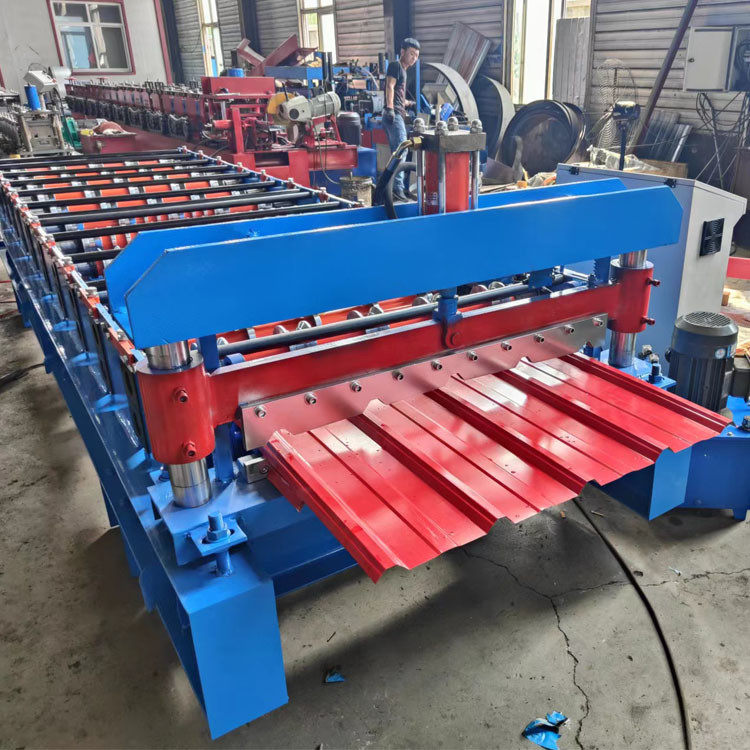

Hydraulic Cutting 840mm Trapezoid Type Tile Forming Machine

The roll forming machine is a machine produced by the material, molding, and post -shaped cutting. Its color plate has a flat and beautiful appearance, uniform lacquer pattern, high strength, and durable. Exhibition halls, movie theaters and other rooms and walls.

Specification

No.	Item	Description
1	Coil	Galvalume, Galvanized, PPGI, Aluminum
2	Raw Material Thickness	0.3-0.8mm
3	Working Speed	15-20m/min ( not including the cutting time)
4	Roller Station	12 Raws
5	Dimension (LWH)	58000 mm1200 mm1100 mm
6	Machine Weight	4000 KG
7	Electrical Control System	Delta PLC (can be customized)
8	Drive Motor Power	4KW
9	Hydraulic Station Power	4KW
10	Power Supply	380V, 60HZ, 3 PHASES(can be customized)
11	Cutting Accuracy	±2 mm
12	Driving Mode	Single Chain 1 inch
13	Material of Shaft	70 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Application

They are widely used Industrial and civil buildings, such as factory buildings, warehouses, gymnasiums, exhibition halls, theaters and other rooms, shopping malls, apartments, workshops, walls and roofs.

Advantage

With more than ten years of experience, Cangzhou famous has reached international manufacturing standards, and its machines are attracting customers all over the world.

With powerful technology, advanced equipment, and high standards, the shutter door bottom machine meets most customers' requirements.

The machine is equipped with an auto feeding system, an accurate counting system, a hydraulic shearing system, and a PLC control system, which makes it stable and long lasting.

We promise to offer you the highest quality, the lowest price, the fastest delivery, and the best customer service. Our goal is to be your best supplier and business partner.
