Name: Automatic 2 Mm C Purlin Roll Forming Machine Channel Adjustable
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: باسله
Price: 32,500.00 USD
Availability: InStock

خانه > محصولات > CZ Purlin Roll Forming Machine >

Automatic 2 Mm C Purlin Roll Forming Machine Channel Adjustable

Galvalume c purlin roll forming machine,2mm c purlin roll forming machine,channel adjustable purlin roll forming machine

2mm c purlin roll forming machine

channel adjustable purlin roll forming machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

CZ Channel Manual Adjustable Purlin Roll Forming Machine

گواهی:

ISO CE

شماره مدل:

باسله

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

کانال قابل تنظیم

مواد خام:

گالوالوم، گالوانیزه

ابعاد (L*W*H):

7000 میلی متر*1500 میلی متر* 1500

ضخامت مواد:

1-2 میلی متر

وزن:

4.5T

ظرفیت تولید:

10-25 متر در دقیقه

ولتاژ:

380V/50Hz/3PH

قدرت موتور اصلی::

15 کیلووات

برجسته کردن:

Galvalume c purlin roll forming machine,2mm c purlin roll forming machine,channel adjustable purlin roll forming machine

2mm c purlin roll forming machine

channel adjustable purlin roll forming machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

40 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

High Efficiency CZ Purlin Roll Forming Machine with 45# Steel Rollers and High Straightness for Construction

بهترین قیمت رو بدست بیار

ویدئو

Full Automatic CZ Purlin Roll Forming Machine with High Straight Level Crush Resistance and 1.5-3MM Thickness for Industrial Buildings

بهترین قیمت رو بدست بیار

ویدئو

CZ Purlin Roll Forming Machine with 18 Station Rollers, 380V/50HZ/3Phase Voltage and Cr12Mov Cutting Blade for High Efficiency

بهترین قیمت رو بدست بیار

ویدئو

CZ Purlin Roll Forming Machine with 700014001500mm Size 8-12m/min Forming Speed and 1.5-3.0mm Thickness for Galvanized Steel

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

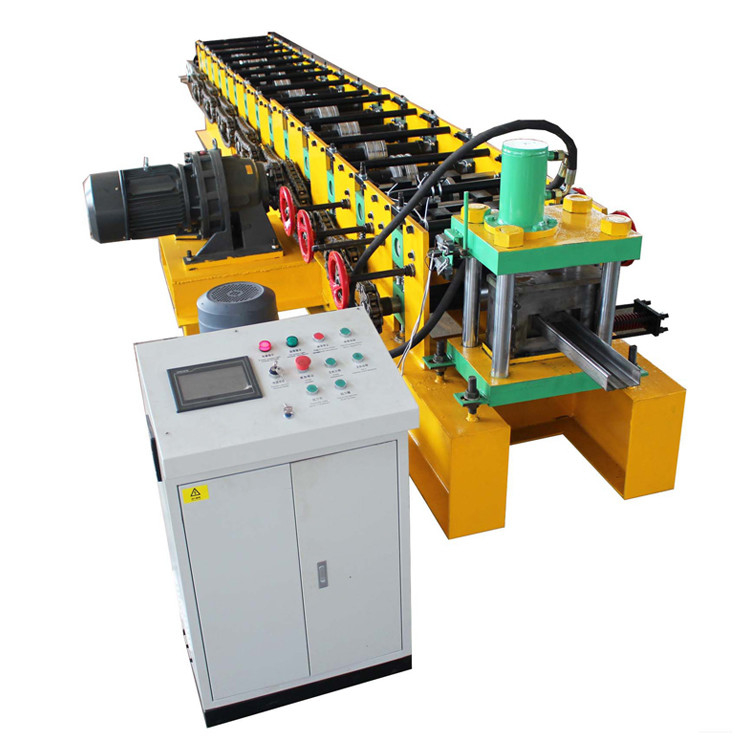

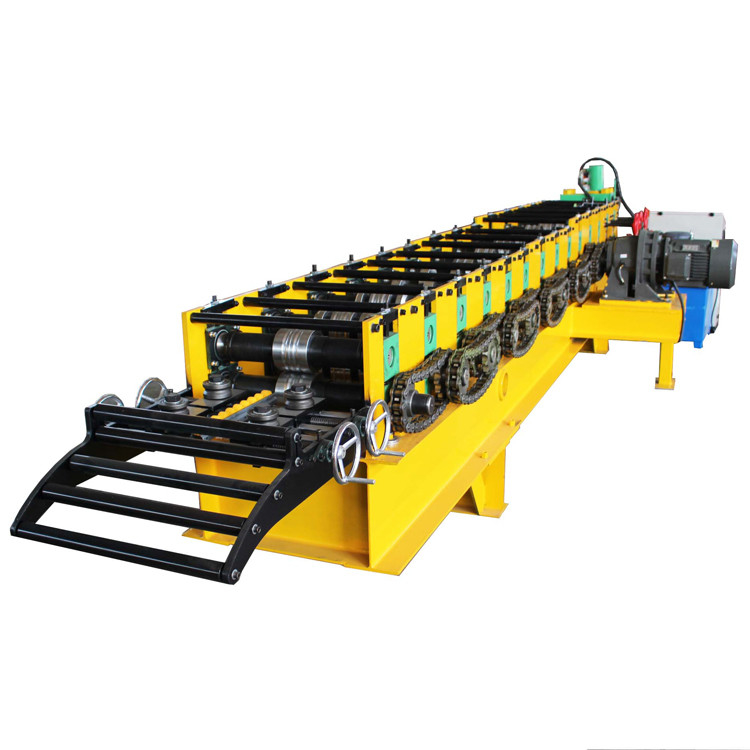

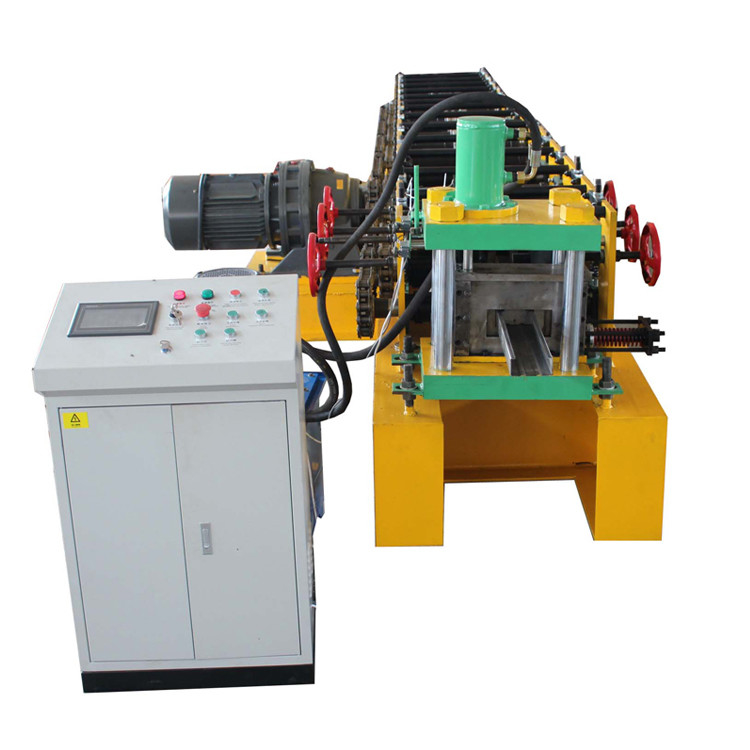

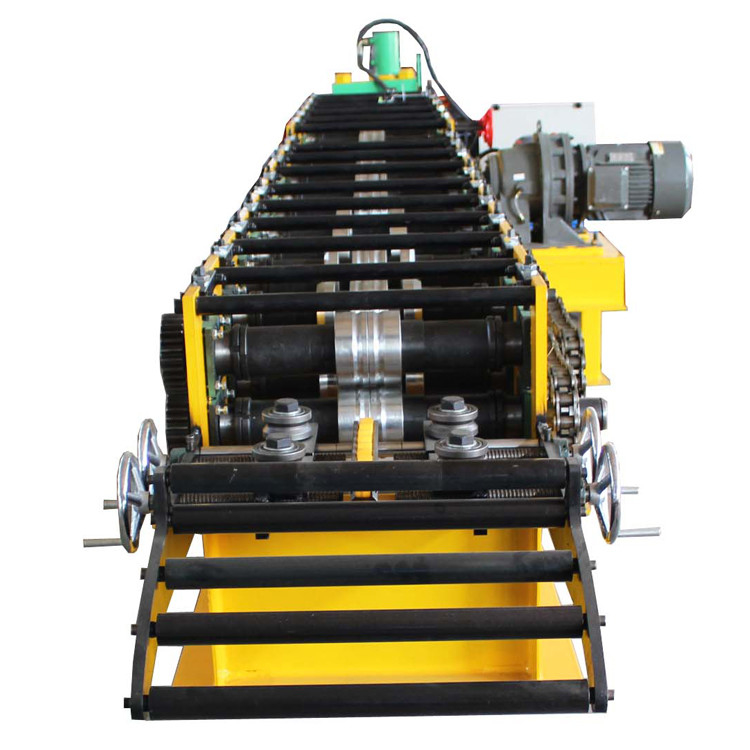

Automatic 2 Mm C Purlin Roll Forming Machine

The C -type steel machine is mainly used by passive fengers, flat installations, punching devices, cutting off devices after forming, hydraulic stations, computer control systems, etc. This machine adopts the characteristics of automatic fly saw punching, simple operation and other characteristics. The main use products can be used as the main force structure of large and medium -sized industrial civil buildings. The C -type steel machine, also known as the C -type steel sandalwood machine, is one of the many types of tile compressive machines. It is a basic type of tile press. Unlike the color steel plate molding machine, it is hydraulic power, and the power is very high. It is generally around 22kW. It is similar to the shear bending machine. Generally, the control process is complicated.

Specification

No.	Item	Description
1	Coil	Galvanized
2	Material Thickness	1 mm- 3.5 mm
3	Working Speed	15- 20 m/min ( not including the cutting time)
4	Roller Station	12-16 Raws
5	Dimension (LWH)	7000 mm1000 mm1300 mm
6	Machine Weight	4000 KG
7	Electrical Control System	Panasonic PLC
8	Drive Motor Power	15KW
9	Hydraulic Station Power	15 KW
10	Power Supply	360V/60HZ/3PH
11	Cutting Accuracy	±2 mm
12	Driving Mode	Single Chain 2 inch
13	Material of Shaft	80 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Application

The C -type steel is widely used in the barrier and wall beams of steel structure buildings, and can also be combined into lightweight roofs, brackets and other building components. In addition, pillars, beams and arms in mechanical light industry can be used.

Advantage

The finished C -type steel finished product of the C -type steel machine equipment has good straightness and straight pressure, fully automatic fixed -length cutting, automatic punching, high degree of automation, fast installation and convenient installation. Structures, such as factory buildings, warehouses, garages, airplanes, exhibition halls, movie theaters, stadiums, marketing roof load loads and wall support. Cold -curved steel is the main material for making light steel structures. It is made of steel plate or steel band cold bending.

Automatic 2 Mm C Purlin Roll Forming Machine Channel Adjustable 0
