Name: 850mm Corrugated Type Tile Forming Machine With Hydraulic Cutting
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: راه راه-850
Price: 28,000.00 USD
Availability: InStock

خانه > محصولات > دستگاه رول فرمینگ سقف >

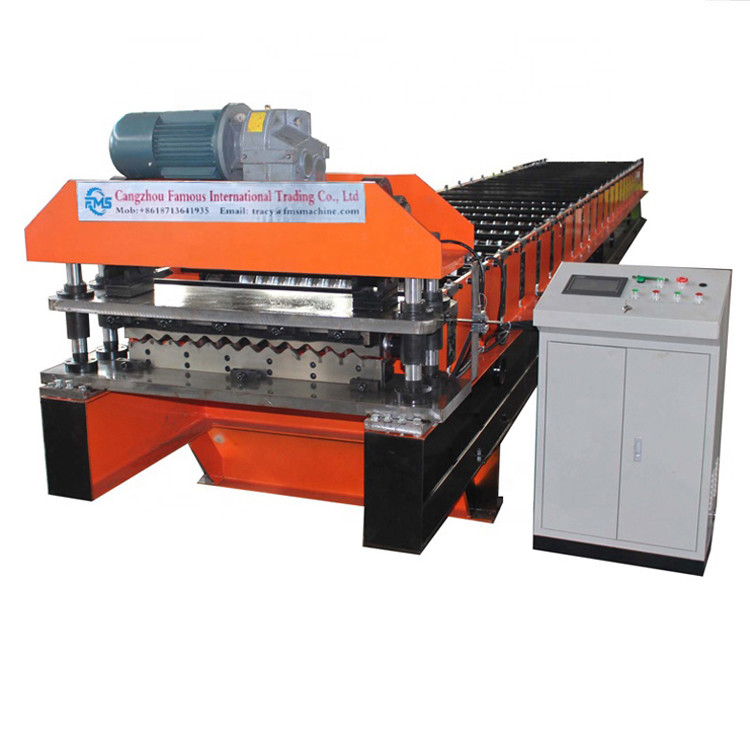

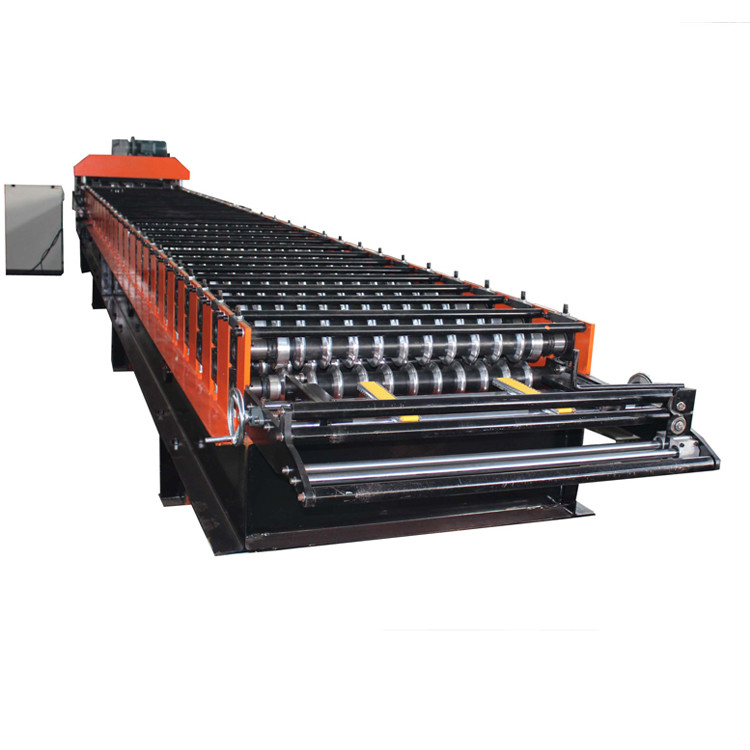

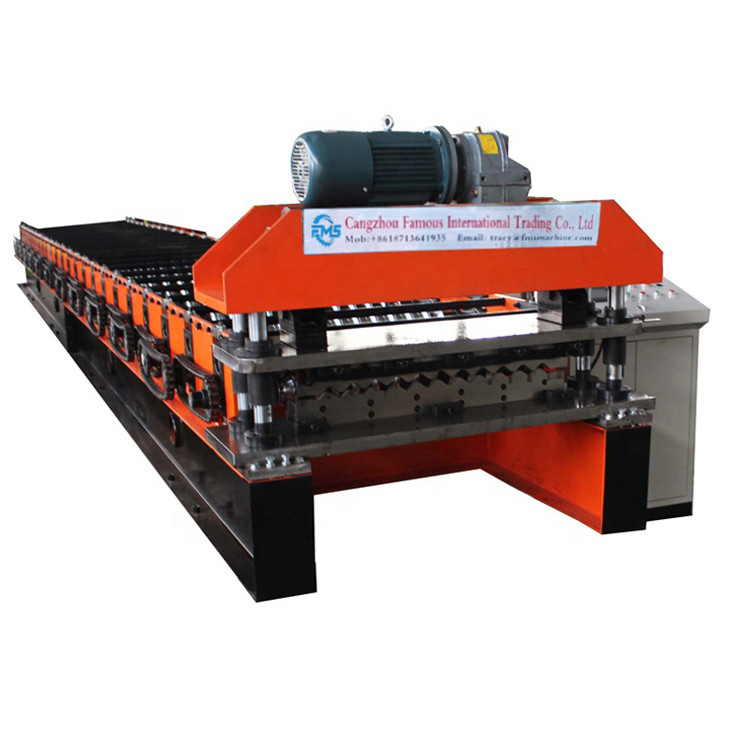

850mm Corrugated Type Tile Forming Machine With Hydraulic Cutting

850mm Tile Forming Machine,Hydraulic Cutting Tile Forming Machine,Corrugated Type Tile Forming Machine

Hydraulic Cutting Tile Forming Machine

Corrugated Type Tile Forming Machine

محل منبع:

سرزمین اصلی چین

نام تجاری:

CANGZHOU FMS

گواهی:

ISO CE

شماره مدل:

راه راه-850

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

دستگاه شکل دهی کاشی نوع ذوزنقه ای 840 میلی متری برش هیدرولیک

مواد خام:

گالوالوم، گالوانیزه، PPGI، آلومینیوم

سیستم کنترل:

PLC

ضخامت:

0.25-0.8 میلی متر

نوع کاشی:

ماشین آلات رول فرمینگ/ماشین آلات مصالح ساختمانی

وضعیت:

جدید

رنگ:

طبق درخواست مشتری

قدرت موتور:

3.5 کیلو وات

عرض مواد خام:

1000 میلی متر

وزن ماشین:

3.15 T

برجسته کردن:

850mm Tile Forming Machine,Hydraulic Cutting Tile Forming Machine,Corrugated Type Tile Forming Machine

Hydraulic Cutting Tile Forming Machine

Corrugated Type Tile Forming Machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

40 دقیقه FLC

زمان تحویل

30 روز کاری

شرایط پرداخت

L/C ، T/T ، D/A ، D/P

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

بهترین قیمت رو بدست بیار

ویدئو

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

بهترین قیمت رو بدست بیار

ویدئو

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

Hydraulic Cutting 850mm Corrugated Type Tile Forming Machine

The Corrugated roll forming machine is a machine produced by the steel coils material, forming and post -shaped cutting. color plate has a flat and beautiful appearance, uniform lacquer pattern, high strength, and durable. Exhibition halls, movie theaters and other rooms and walls.

Specification

No.	Item	Description
1	Coil	Galvalume, Galvanized, PPGI, Aluminum
2	Raw Material Thickness	0.3-0.8mm
3	Working Speed	8-15m/min ( not including the cutting time)
4	Roller Station	12 Raws
5	Dimension (LWH)	58000 mm1200 mm1100 mm
6	Machine Weight	4000 KG
7	Electrical Control System	Delta PLC (can be customized)
8	Drive Motor Power	4KW
9	Hydraulic Station Power	4KW
10	Power Supply	380V, 60HZ, 3 PHASES(can be customized)
11	Cutting Accuracy	±2 mm
12	Driving Mode	Single Chain 1 inch
13	Material of Shaft	70 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Application

They are widely used industrial and civil buildings, such as factory buildings, warehouses, gyms, exhibition halls, theaters, and other rooms, shopping centers, apartments, workshops, walls, and roofs.

Advantage

Cangzhou Famous is a leading manufacturer of cold roll forming machines. We manufacture and supply roofing sheet forming machines, shutter door roll forming machines, C U Purlin roll forming machines and so on . We export our machines to countries such as South Africa, the Middle East, Europe, and so on.

the Corrugated 850 roll forming machine suitable raw material thickness is 0.3mm-0.8mm, working speed can reach 5 meters per min,Due to the beautiful appearance and convenient installation, the machine has been selling well all around the world
