Name: High Accuracy Double Layer Steel Roof Sheet Roll forming Machine IBR Corrugated Glazed
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: دو لایه
Price: 28,000.00 USD
Availability: InStock

خانه > محصولات > دستگاه رول فرمینگ سقف >

High Accuracy Double Layer Steel Roof Sheet Roll forming Machine IBR Corrugated Glazed

IBR roof sheet roll forming machine,Corrugated roof sheet roll forming machine,Glazed roof sheet roll forming machine

Corrugated roof sheet roll forming machine

Glazed roof sheet roll forming machine

محل منبع:

چین

نام تجاری:

FMS

گواهی:

CE,ISO

شماره مدل:

دو لایه

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

توضیح محصول:

دستگاه رول فرمینگ ورق سقف فولادی دولایه با دقت بالا IBR لعاب راه راه

ضخامت نورد:

0.3-0.7 میلی متر

ابعاد (L*W*H):

6400mm*1500mm*1200mm

ماده غلتکی:

45# فولاد

سیستم کنترل:

PLC

سرعت:

8-15 متر در دقیقه

ولتاژ:

380 ولت 50 هرتز 3PH

قاب اصلی:

فولاد 350H

برجسته کردن:

IBR roof sheet roll forming machine,Corrugated roof sheet roll forming machine,Glazed roof sheet roll forming machine

Corrugated roof sheet roll forming machine

Glazed roof sheet roll forming machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

دستگاه اصلی برهنه است، جعبه کنترل کامپیوتر توسط پلاستیک بسته بندی شده است.

زمان تحویل

30 روز

شرایط پرداخت

T/T ، Western Union

قابلیت ارائه

35 ست در ماه

محصولات مرتبط

ویدئو

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

بهترین قیمت رو بدست بیار

ویدئو

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

بهترین قیمت رو بدست بیار

ویدئو

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

بهترین قیمت رو بدست بیار

ویدئو

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

هم اکنون تماس بگیرید

توضیح محصول

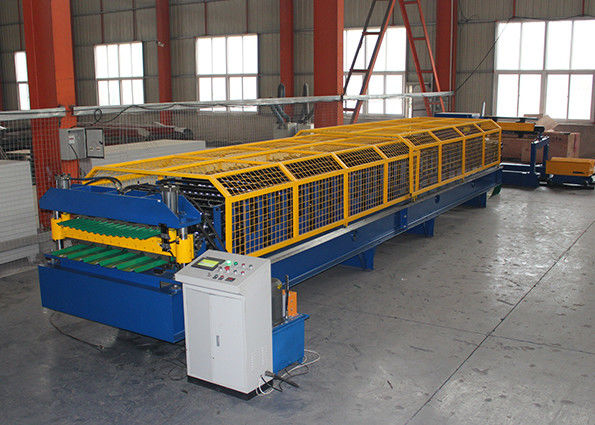

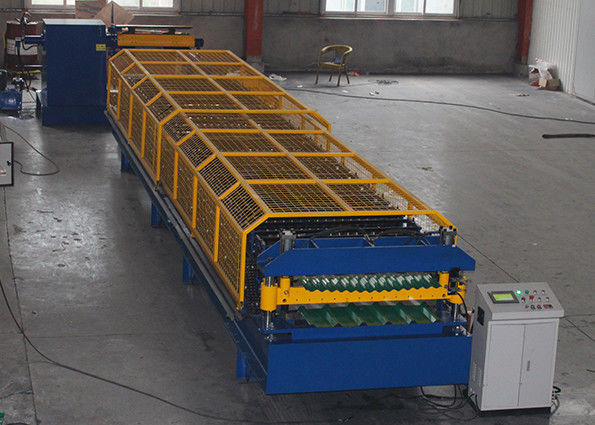

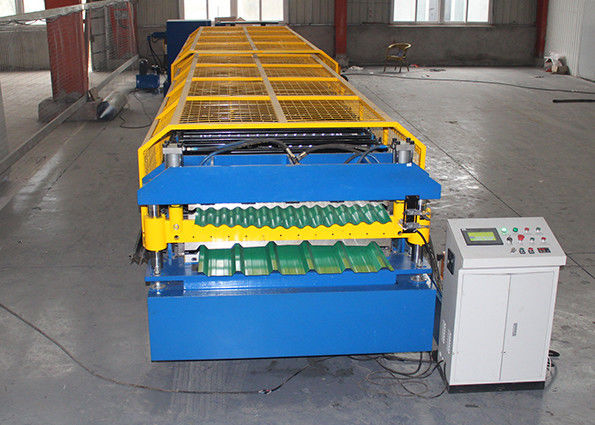

Double Layer Metal Roof Sheet Roll Forming Production Line

Roofing colored steel tile, also known as: colored pressing tile, is the use of color coating steel plate, cold bending through the roll into a variety of wave plate.Industrial manufacturing, villages, warehouses, supermarkets, hotels, exhibition halls, home buildings, etc. It has a three- imensional and smooth shape, colorful and colorful colors, and can also be customized according to customer requirements for different corrugated board patterns, colors, shapes and corrugated boards of different thicknesses.Building metallic materials have excellent performance of decoration, corrosion resistance etc,easy to operate, energy saving,flexible manufacturing,high productivity, eco-friendly.

Equipment Detailed Parameters:

Base material	GI/GL,PPGI/PPGL,Aluminum coil
Thickness	0.3mm-0.7mm
Effective Width	1000mm (according to your need)
Roller material	45# steel
Color	All colors (standard international color)or customers samples’ color
Brand	FMS
Control System	Famous Brand PLC
Power	5.5KW
Frame	350Hsteel
Cutting drive	Hydraulic drive,electric motor

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Advantage

Cangzhou famous is a professional manufacturer of cold roll forming machines in China. Under steady guarantee of strong technical resources, the machines produced by our company are widely appreciated around the world.

Double layer roll forming machine is high-tech product. From profile drawings to assembly drawings to installation drawings. Every link is designed by our technical department.

Due to the high accuracy of cutting and low range tolerance, the product can be perfectly overlapped without any inconsistencies.

In our company, we have a mature after-sale service network, In case of need, we can send technicians to train you on installation and operation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
