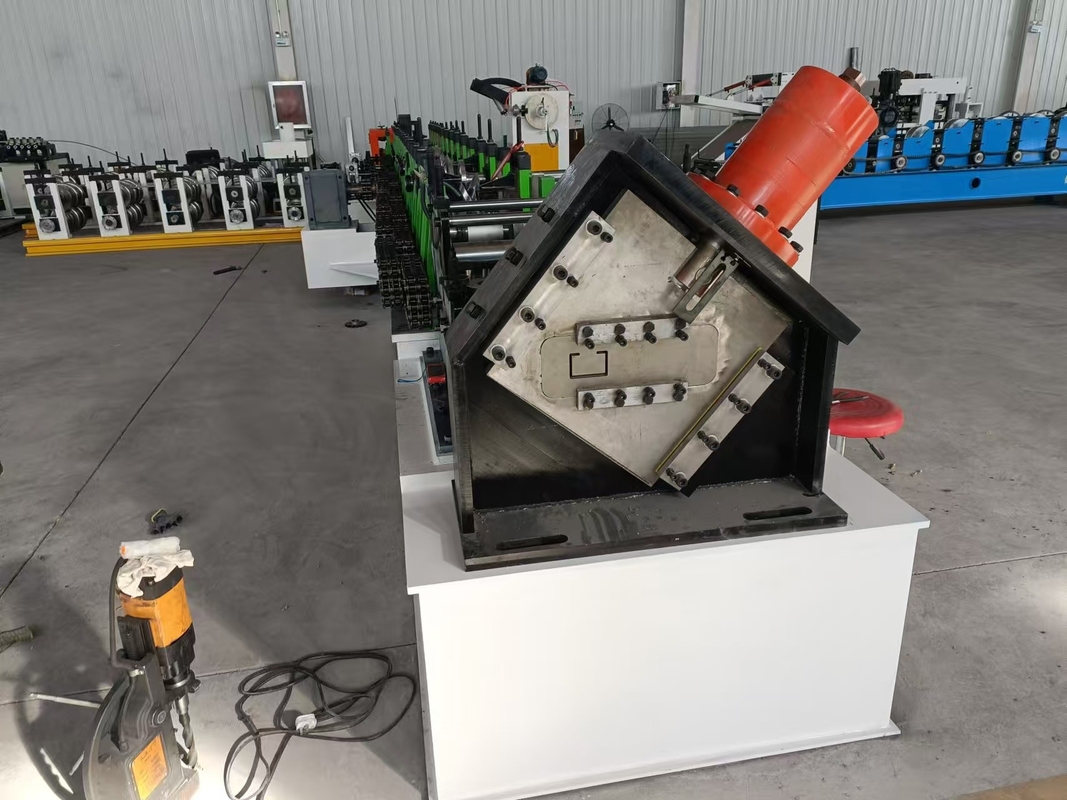

Size Adjustment 80-300mm C Purlin Roll Forming Machine Fully Automatic

300mm C Purlin Roll Forming Machine,80-300mm Roll Forming Machine,Size Adjustment Roll Forming Machine

80-300mm Roll Forming Machine

Size Adjustment Roll Forming Machine

محل منبع:

چین

نام تجاری:

FMS

گواهی:

CE,ISO

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

نام محصول:

دستگاه شکل دهی تمام اتوماتیک رول CZ برای تنظیم اندازه 80-300 میلی متر

اجزای اصلی:

PLC (مارک وارداتی)

فشار کاری:

16 MPa

ولتاژ:

380 ولت یا 415 ولت

ابعاد (L*W*H):

10.5 متر * 1.35 متر * 1.75 متر

اتهام اتوماسیون:

خودکار

برش مواد تیغه:

Cr 12 Mov

برجسته کردن:

300mm C Purlin Roll Forming Machine,80-300mm Roll Forming Machine,Size Adjustment Roll Forming Machine

80-300mm Roll Forming Machine

Size Adjustment Roll Forming Machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

negotiable

جزئیات بسته بندی

دستگاه اصلی برهنه است، جعبه کنترل کامپیوتر توسط پلاستیک بسته بندی شده است.

زمان تحویل

30 روز

شرایط پرداخت

T/T ، Western Union ، L/C

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

High Efficiency CZ Purlin Roll Forming Machine with 45# Steel Rollers and High Straightness for Construction

بهترین قیمت رو بدست بیار

ویدئو

Full Automatic CZ Purlin Roll Forming Machine with High Straight Level Crush Resistance and 1.5-3MM Thickness for Industrial Buildings

بهترین قیمت رو بدست بیار

ویدئو

CZ Purlin Roll Forming Machine with 18 Station Rollers, 380V/50HZ/3Phase Voltage and Cr12Mov Cutting Blade for High Efficiency

بهترین قیمت رو بدست بیار

ویدئو

CZ Purlin Roll Forming Machine with 700014001500mm Size 8-12m/min Forming Speed and 1.5-3.0mm Thickness for Galvanized Steel

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-317-2016816

هم اکنون تماس بگیرید

توضیح محصول

Fully Automatic CZ Purlin Roll Forming Machine For Size Adjustment 80-300mm

Fully Automatic CZ Purlin Roll Forming Machine For Size Adjustment 80-300mm.Standard Shape Profile ( Also can be customized)
C Purlin: A=80-300mm ; B=40-80mm ; C=10-20mm ; T=1.5-3mm
Z Purlin: A=120-300mm ; B=40-80mm ; C=10-20mm ; T=1.5-3mm

Other detailes of interchange cz cold rolled purlins machine
Suitable for material with thickness 1-3mm,Shafts manufactured from 45#,Main shaft diameter=φ80mm,precision machined,
Motor driving,Gear chain transmission, 16 rollers to form and 7 rollers for straightening and levelling,Main motor=22KW , Frequency speed control. Forming speed approx.18m/minPLC Control System Omron (Touch screen: WUXI xinjie),Inverter brand:Taiwan DELTA,Encoder brand:Japan OMRON),It takes only 5-10 minutes to finish all. No need to change rollers or spacers or cutters,Combined with: PLC, Inverter, TouchScreen, Encoder, etc.

specifications

Raw material	Steel Coil gi ppgi
Control system	PLC(imported Brand)
Punching	Roller Station
Roller Station	18 Stations Roll Forming Machine
Weight	11000 kg
Power	22KW
Production Capacity	20m/min
Warranty of core components	1.5 years

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
