توضیح محصول

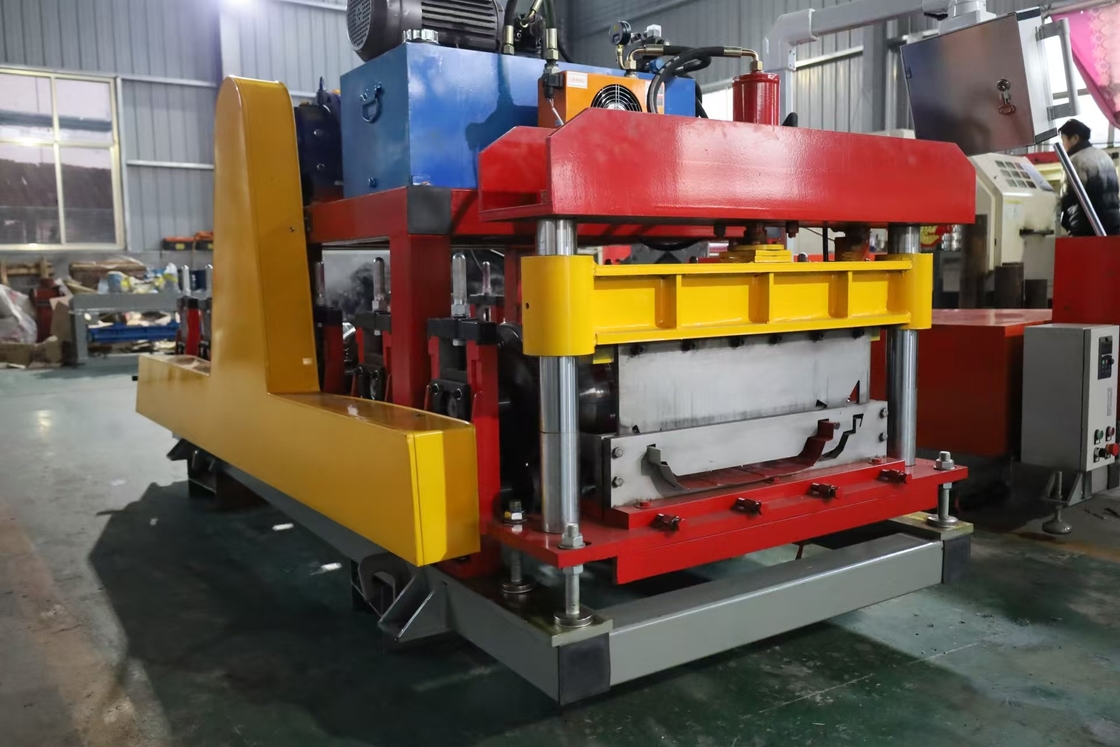

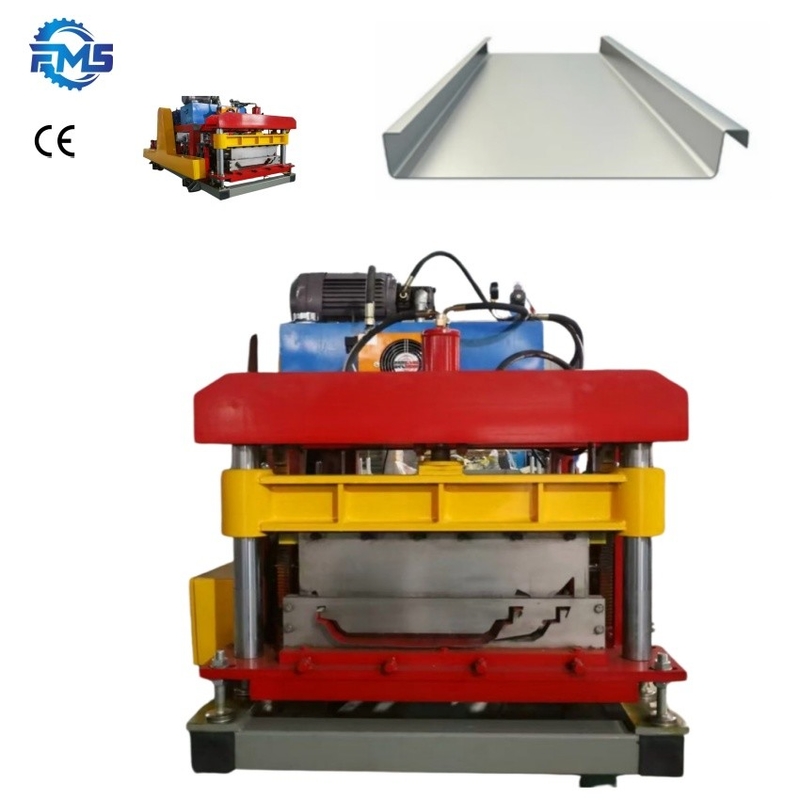

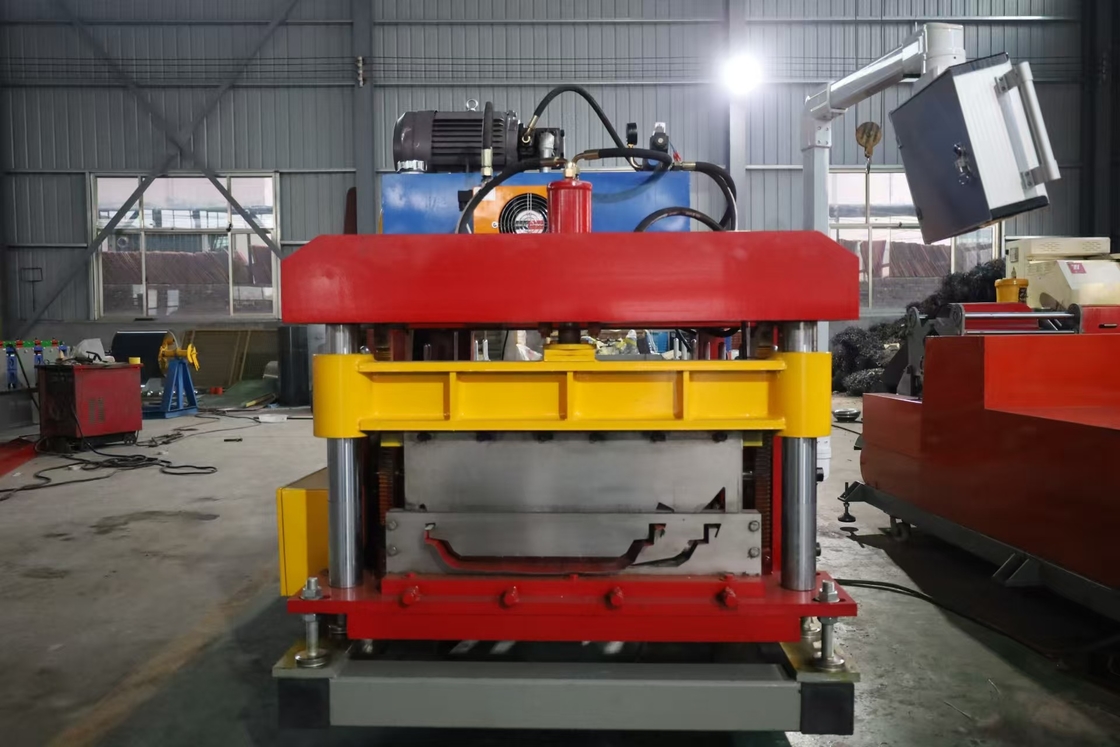

PRODUCT DISPLAY

Fms roll forming machine factory is located in the hometown of Chinese machinery, casting city - Botou city.Our factory is a professional Roll Forming Machine manufacturer with 17 years experience,we have 100 well trained workers and 20,000m’(square meters) workshops.

Specializing in the production of various types of tile press equipment,the development and production of automatic intelligentcontrol tile press equipment production line, C type steel, dust collector anode plate and other equipment.Our factory can design and produce various special-shaped cold-bending forming equipment according to the different needs of users.

1.Standing seam roofing is the most reliable roofing material. The risk of leakage is excluded due to concealed fixing, reliable
seaming, and the absence of through holes. Standing seam roofing blends into the architectural character of cities thus being
applied for new building construction as well as for remodeling and renovation.

Product Paramenters

Portable full automatic SSR Standing seam metal roof sheet roll forming machine for sale price
1.Formed Material	PPGI,GI,AI	Thickness:0.4-0.8mm Width:as the profile drawing
2.Decoiler	Hydraulic automatic decoiler	Manual decoiler(will give you as free)
3.Main body	Roller station	7rows (Design as the profile drawing)
	Diameter of shaft	70mm solid shaft
	Material of rollers	45# steel, hard chrome plated on the surface
	Machine body frame	350 H steel
	Drive	Chain transmission
	Dimension(LWH)	25008001200(customize)
	Weight	1.5T
4.Cutter	Automatic	cr12mov material, no scratches, no deformation
5.Power	Motor Power	5.5KW
	Hydraulic system power	4KW
6.Voltage	380V 50Hz 3Phase	As your requirement
7.Control system	Electric Box	Customized(famous brand)
	Language	English(Support multiple languages)
	PLC	Automatic production of the whole machine. Can set batch, length, quantity, etc.
18.Forming Speed	15-20m/min	The speed is adjustable as customer's request

.Mexico KR18 KR24 Portable Standing Seam Roof Profile Roll Forming Machine has different types which used together with
High Quality Mobile Low Cost Self Lock Electric For Seamer Metal Roofing Stand Seam Roof Panel Mexico Portable Kr18 standing seam metal roofing machine metal-roofing-machine standing seam mobile machine roof seam portable standing seam metal roofing machines for standing seam machine xy 65-400 standing seam roofing roll forming machine

Details Images

1.Decoiler

Roll Forming Machine load parts, decoiler loading frame we can offer different type can choose. standard type are
manual,also can choose electric loading frame or hydraulic loading frame.
This loading frame decoiler also can use in other type machine, customer can buy it alone.

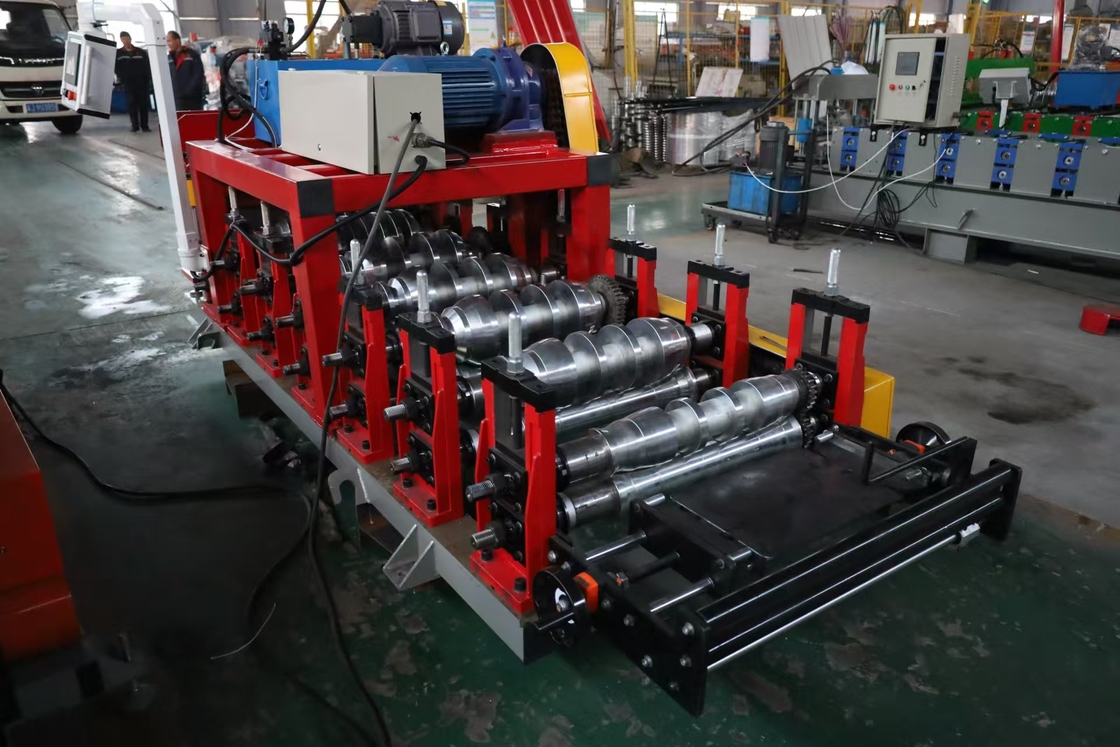

3 Main rollers
Material of rollers:High grade 45# Forging Steel ,roller surfaces polishing, hard plating , The polished surface and the heat
treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.

4.Entry Beach

Entry Beach
Put the raw material(steel plate) through the beach to manufacture and process, it can guarantee that the products are neat,
parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron.

5.Control part

standing seam Roll Forming Machine control parts have different types, standard type are button control, through press buttons to
realize different function.

PLC touch screen type can setting data on the screen, its price is little higher, but is more intelligent and automatic.

6.Receiving table

Receiving table
1) Supporting material length: 3m 2 pieces
2) Material supporting method: the frame is welded with channel steel and angle steel, and the galvanized passive roller installed
on the surface will not damage the galvanized layer of profile steel
