0.8-1.6mm Multiple Sizes C89 C140 C200 Light Steel Framing Machine Light Gauge Roll Forming Machine For Prefab House

Prefab House Light Steel Framing Machine,C140 Light Steel Framing Machine,C200 Light Steel Framing Machine

C140 Light Steel Framing Machine

C200 Light Steel Framing Machine

محل منبع:

چین

نام تجاری:

FMS

گواهی:

شماره مدل:

c89

با ما تماس بگیرید

درخواست قیمت

جزئیات محصول

اندازه دستگاه:

به پروفایل ها بستگی دارد

وزن ماشین:

2500 کیلوگرم

سرعت فرم:

15-20 متر در دقیقه

مواد غلتکی:

45#فولاد

گارانتی:

1 سال

ضخامت:

1.5 میلی متر

موتور هیدرولیکی:

5.5 کیلووات

ایستگاه های شکل دهی:

روش برش:

برش هیدرولیکی

برجسته کردن:

Prefab House Light Steel Framing Machine,C140 Light Steel Framing Machine,C200 Light Steel Framing Machine

C140 Light Steel Framing Machine

C200 Light Steel Framing Machine

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

40000-75000 usd

جزئیات بسته بندی

برهنه با فیلم پلاستیکی.

زمان تحویل

45 روز جهانی

قابلیت ارائه

20 ست در ماه

محصولات مرتبط

ویدئو

Omega Profile Light Keel Steel Framing Top Hat Channel Roll Forming Machine

بهترین قیمت رو بدست بیار

C89 Lgs Light Gauge Steel Roll Forming Machine For Villa House

بهترین قیمت رو بدست بیار

Roller Fixer Guide Column CU stud for Long-lasting Roofing

بهترین قیمت رو بدست بیار

Guide Column Roller Fixer Stud And Track Roll Forming Machine with 7.5KW Hydraulic Station Power and Plc S7-200 Control

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

هم اکنون تماس بگیرید

توضیح محصول

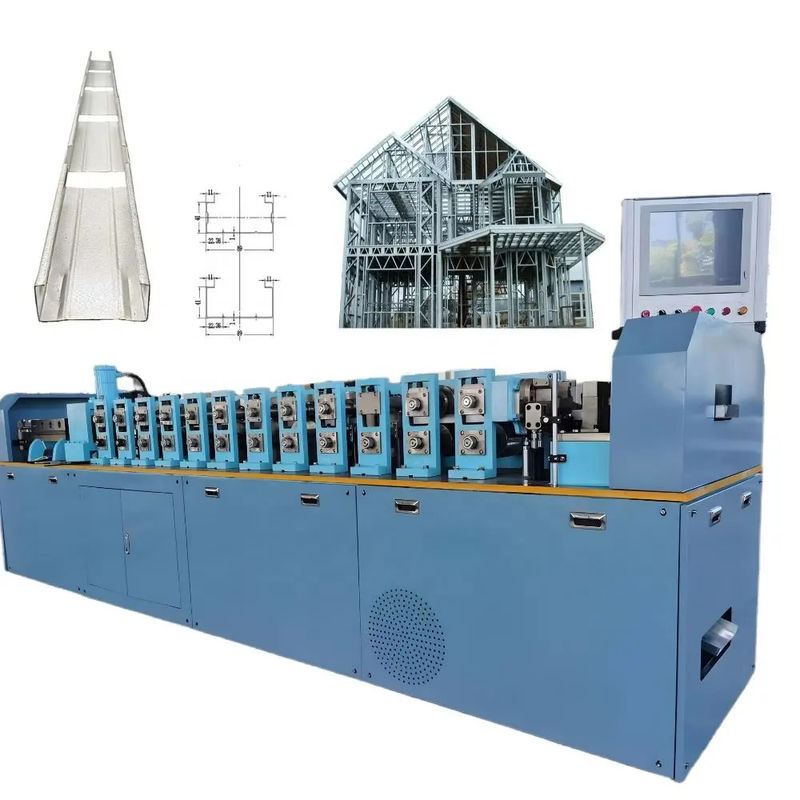

0.8-1.6mm Multiple Sizes C89 C140 C200 Light Steel Framing Machine Light Gauge Roll Forming Machine for Prefab House

The Light Steel Framing Machine is the automatic production line. Width 89mm, 140mm 200mm are the common sizes. The machine includes decoiler, hydraulic punching, hydraulic cutting, passive output table, industrial computer and so on.

It is a fully automatic wall, floor and roof truss frame design production system using one single dedicated C & U shape profile.

This framing system engineers, designs and produces wall frames, floor truss, and roof trusses complying to all major international light steel framing building codes: America, British, Euro, Canadian and Australian.ed C & U shape profile.

Application

Light gauge steel framing machine villa keel roll forming machine

According to the specific requirements of the construction of light steel villas, equipped with stamping molds and coding devices such as concave screw holes, chamfers, web through holes, small edge shear, pipe line holes, web shrinkage, shear, etc. Adopting professional industrial computer numerical control automatic control, it has the characteristics of wide application range, high product accuracy, high degree of automation, material saving, and high degree of automation. Intended to continuously innovate prefabricated buildings and diverse structural forms in the market, We can design and manufacture specialized equipment according to customer requirements, and provide supporting equipment such as planking/adjustable C-steel.

Technical Data:

Size	C75 or C89 or C140 or C200
Thickness	0.8mm-1.2mm,0.8-1.6mm,0.8-2.0mm(Galvanzied coils and Aluzinc
Standard Producing speed	300-700m/h
Max producing speed	1500m/h
Main motor	7.5kw Servo motor or 11KW servo motor
Power supplier	415V 50Hz 3phases according to your request
Hydraulic station	7.5kw Motor or 7.5KW
Hydraulic tank capacity	100L
Hydraulic cooling	Fan cooling with Accumulator
Hydraulic pressure	Manually set
Host cordless remote control	Standard
Frame and punching dies	Web Notch(1 set),Screw hole(1 set), chamfer(1 set), flange cut(1 set), Service Hole(1 set), suspension, cutting blade(1 set)
Product accuracy+-	0.5mm
CNC inkjet-printer	HP inkjet printer
Size	4700/53009501200mm
Weight	3000kg/4500
Color	According to your request
De-colier	2 Tons electric decoiler with leveling device

0.8-1.6mm Multiple Sizes C89 C140 C200 Light Steel Framing Machine Light Gauge Roll Forming Machine For Prefab House 6

0.8-1.6mm Multiple Sizes C89 C140 C200 Light Steel Framing Machine Light Gauge Roll Forming Machine For Prefab House 7
