Product Description:

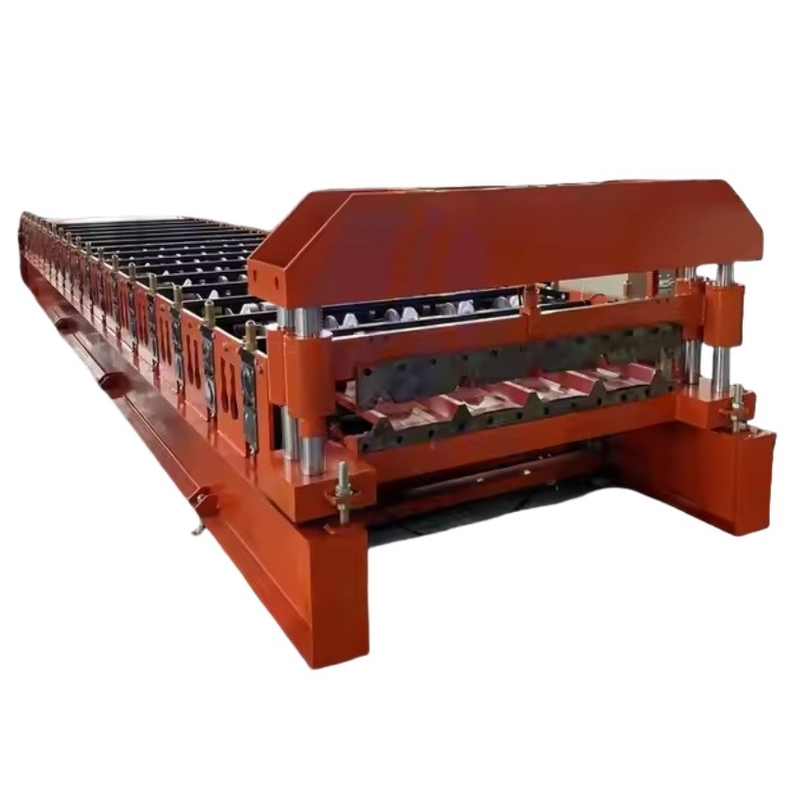

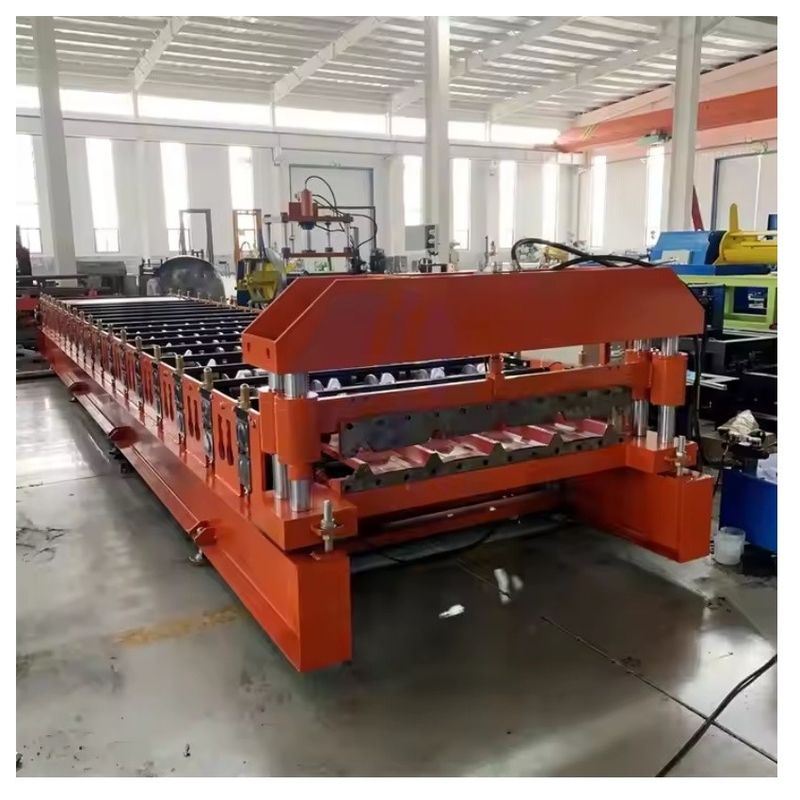

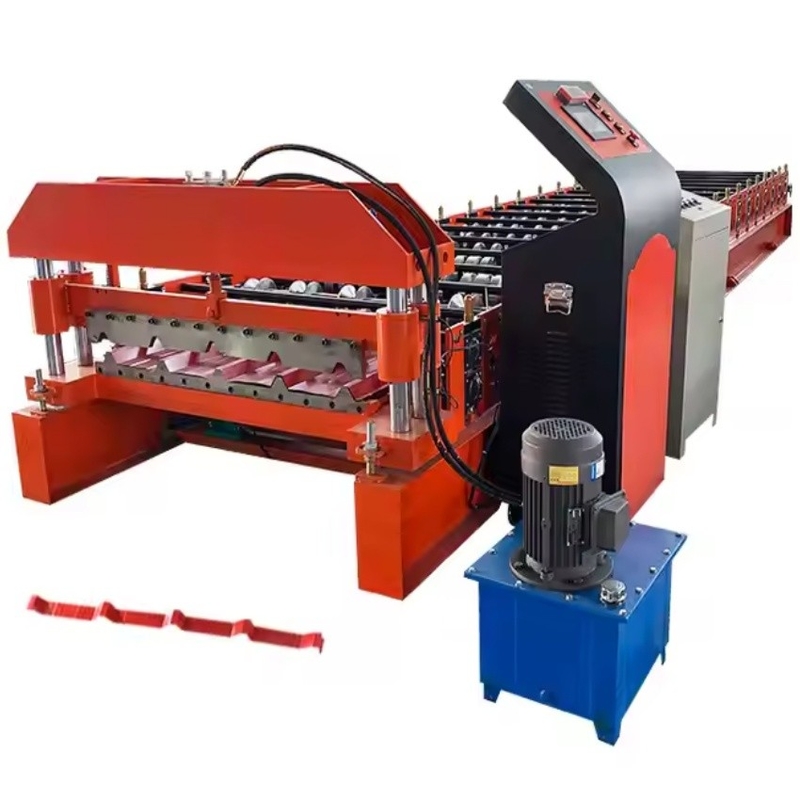

Roofing colored steel tile, also known as: colored pressing tile, is the use of color coating steel plate, cold bending through the roll into a variety of wave plate.Industrial manufacturing, villages, warehouses, supermarkets, hotels, exhibition halls, home buildings, etc. It has a three- imensional and smooth shape, colorful and colorful colors, and can also be customized according to customer requirements for different corrugated board patterns, colors, shapes and corrugated boards of different thicknesses.Building metallic materials have excellent performance of decoration, corrosion resistance etc,easy to operate, energy saving,flexible manufacturing,high productivity, eco-friendly.
Equipment Detailed Parameters:
|
Base material
|
GI/GL,PPGI/PPGL,Aluminum coil
|
|
Thickness
|
0.3mm-0.7mm
|
|
Effective Width
|
1000mm (according to your need)
|
|
Roller material
|
45# steel
|
|
Color
|
All colors (standard international color)or customers samples’ color
|
|
Brand
|
FMS
|
|
Control System
|
Famous Brand PLC
|
|
Power
|
5.5KW
|
|
Frame
|
350Hsteel
|
|
Cutting drive
|
Hydraulic drive,electric motor
|
|
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Advantage
Cangzhou famous is a professional manufacturer of cold roll forming machines in China. Under steady guarantee of strong technical resources, the machines produced by our company are widely appreciated around the world.
Double layer roll forming machine is high-tech product. From profile drawings to assembly drawings to installation drawings. Every link is designed by our technical department.
Due to the high accuracy of cutting and low range tolerance, the product can be perfectly overlapped without any inconsistencies.
In our company, we have a mature after-sale service network, In case of need, we can send technicians to train you on installation and operation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
